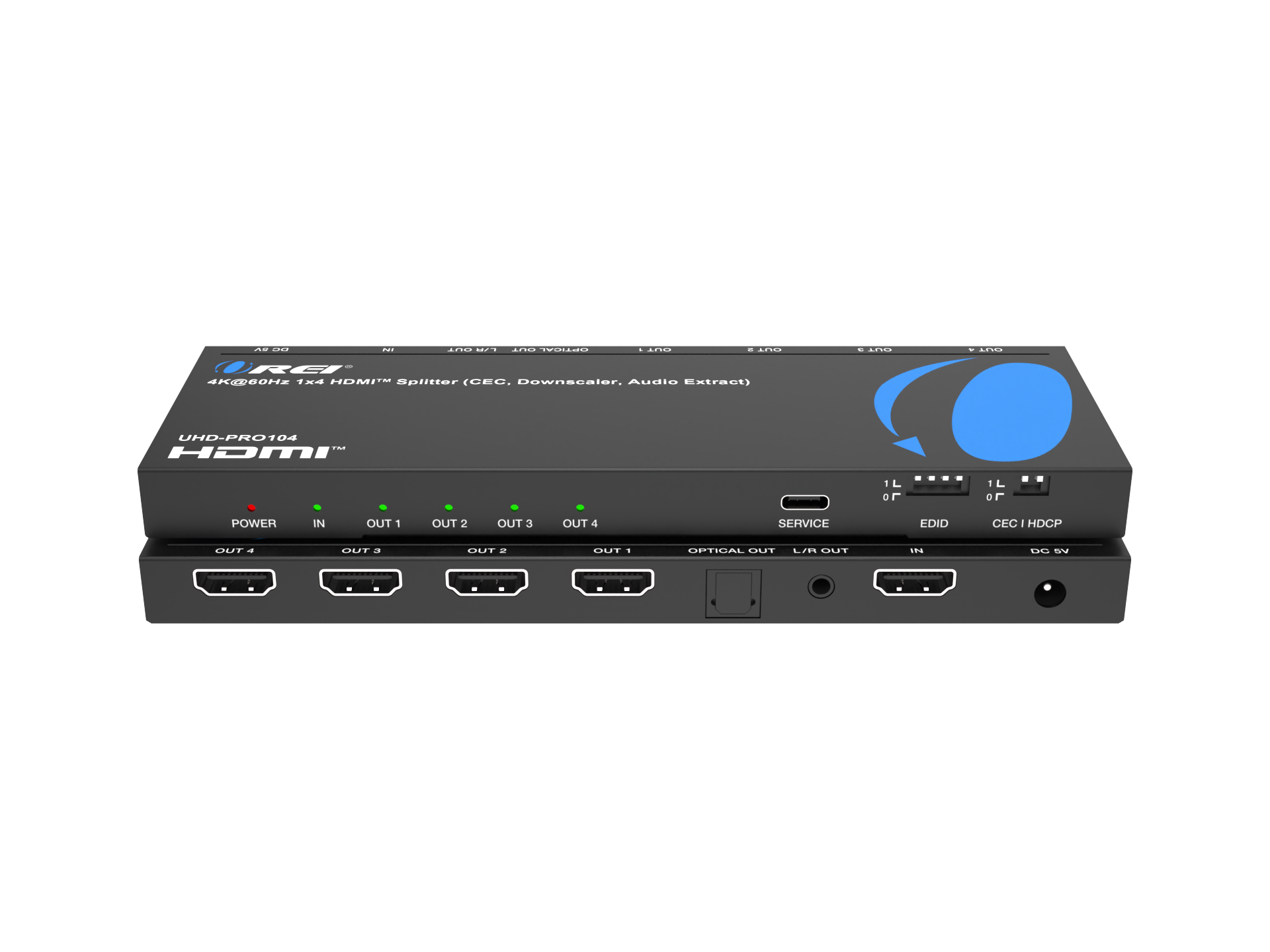

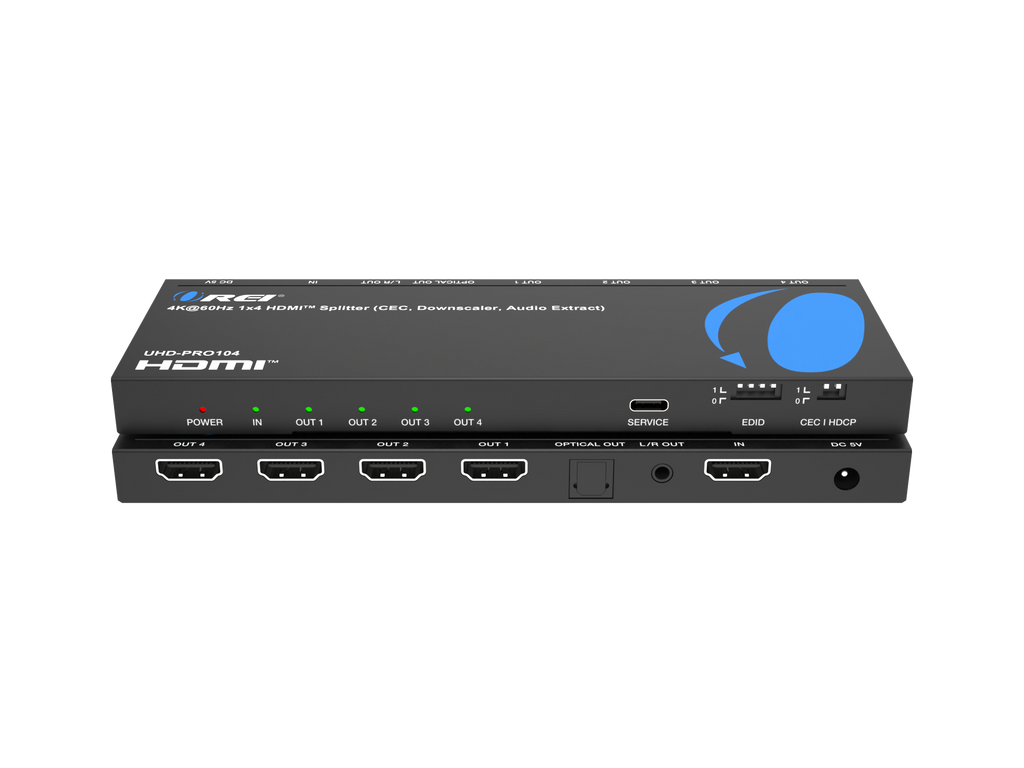

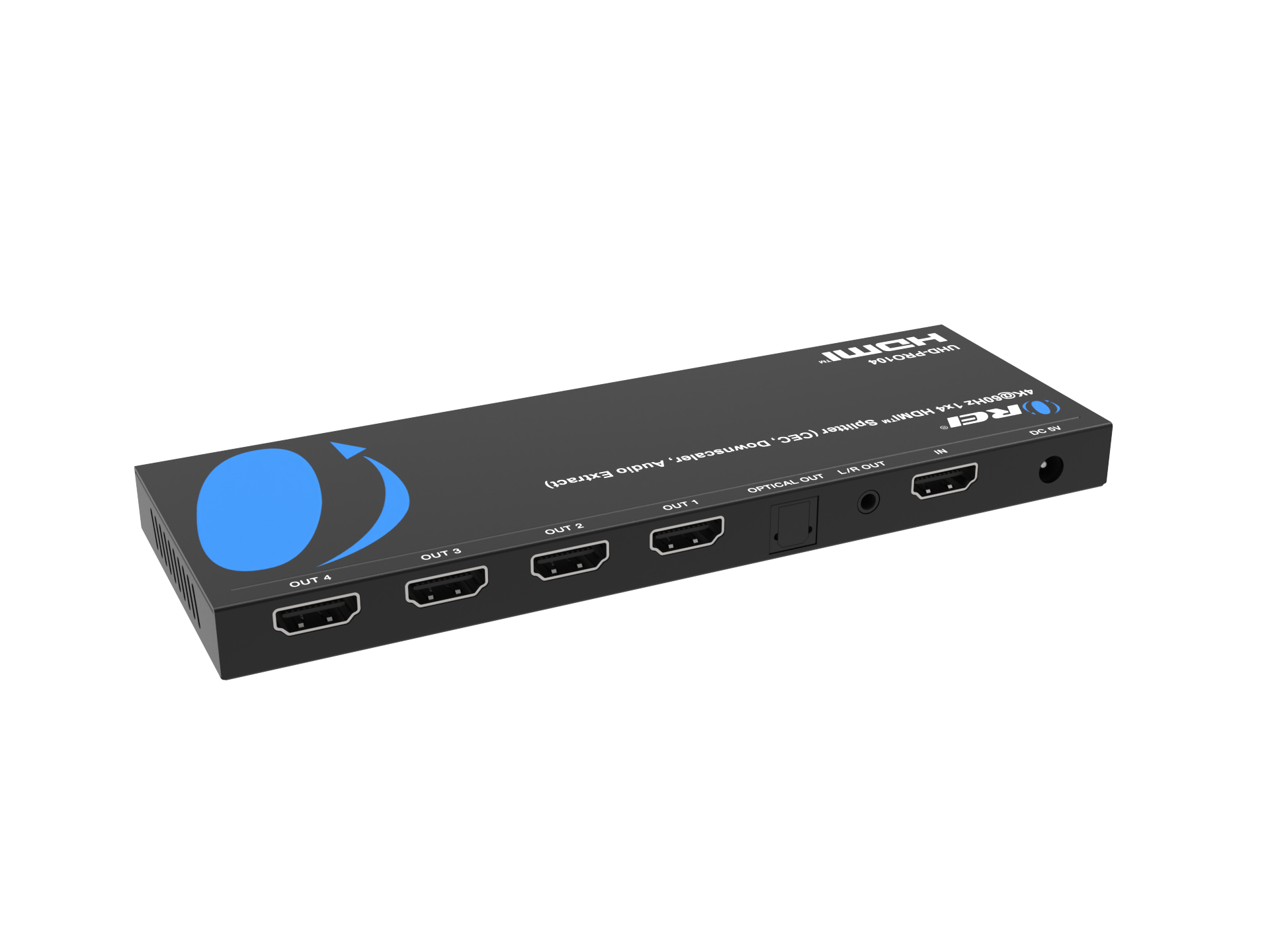

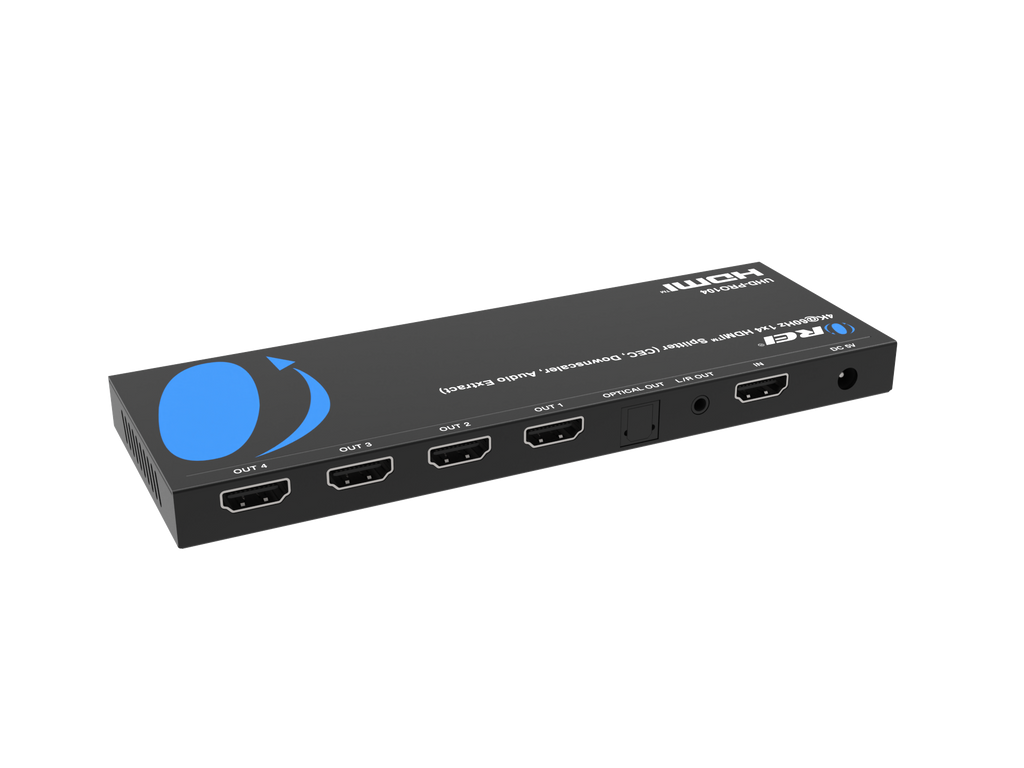

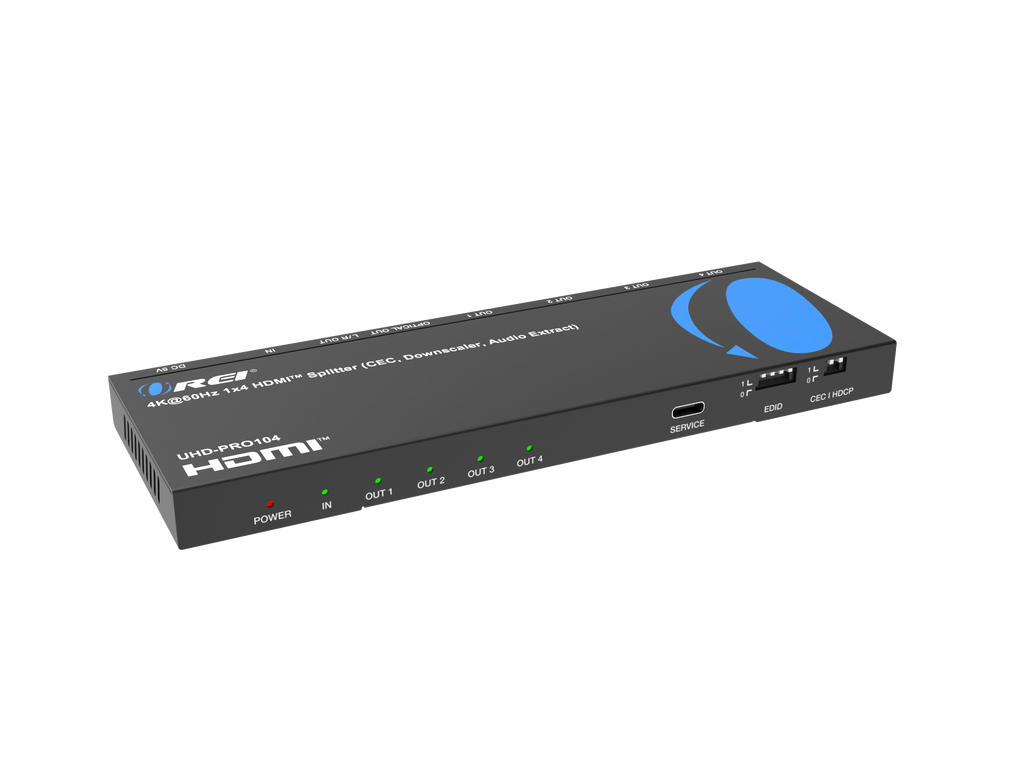

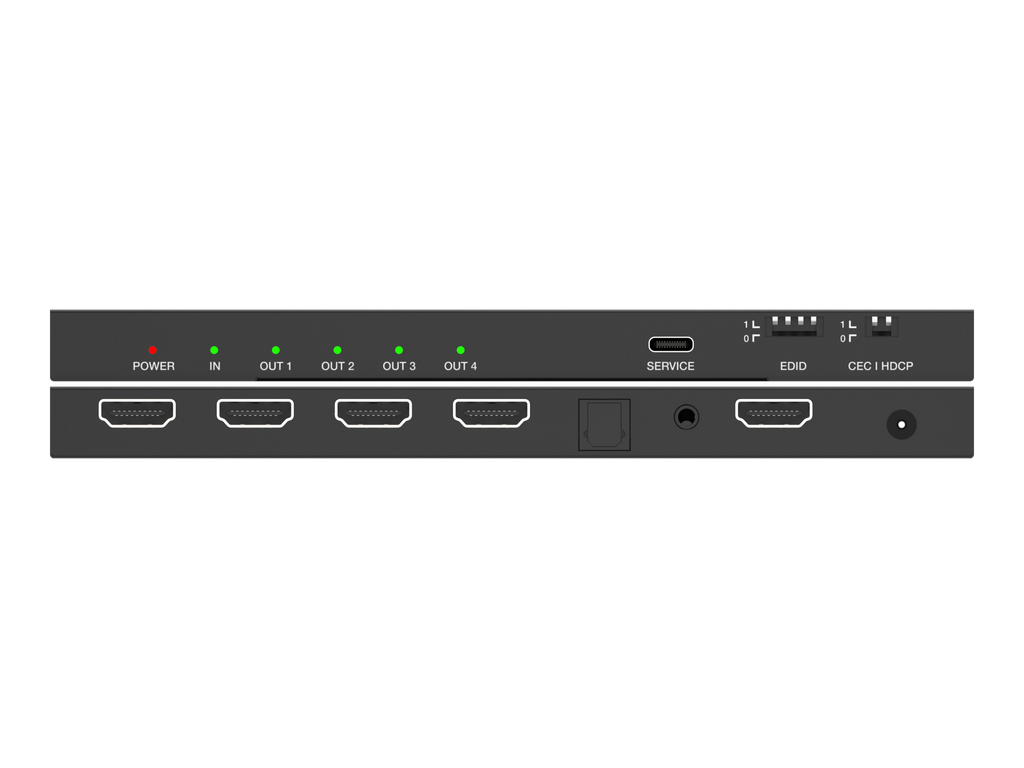

OREI UHD-PRO 104: 4K 1x4 HDMI Splitter with Auto Downscale & EDID management
Key Features:
HDMI 2.0 & HDCP 2.2 Compliant
Video resolutions up to 4K@60Hz & 3D support

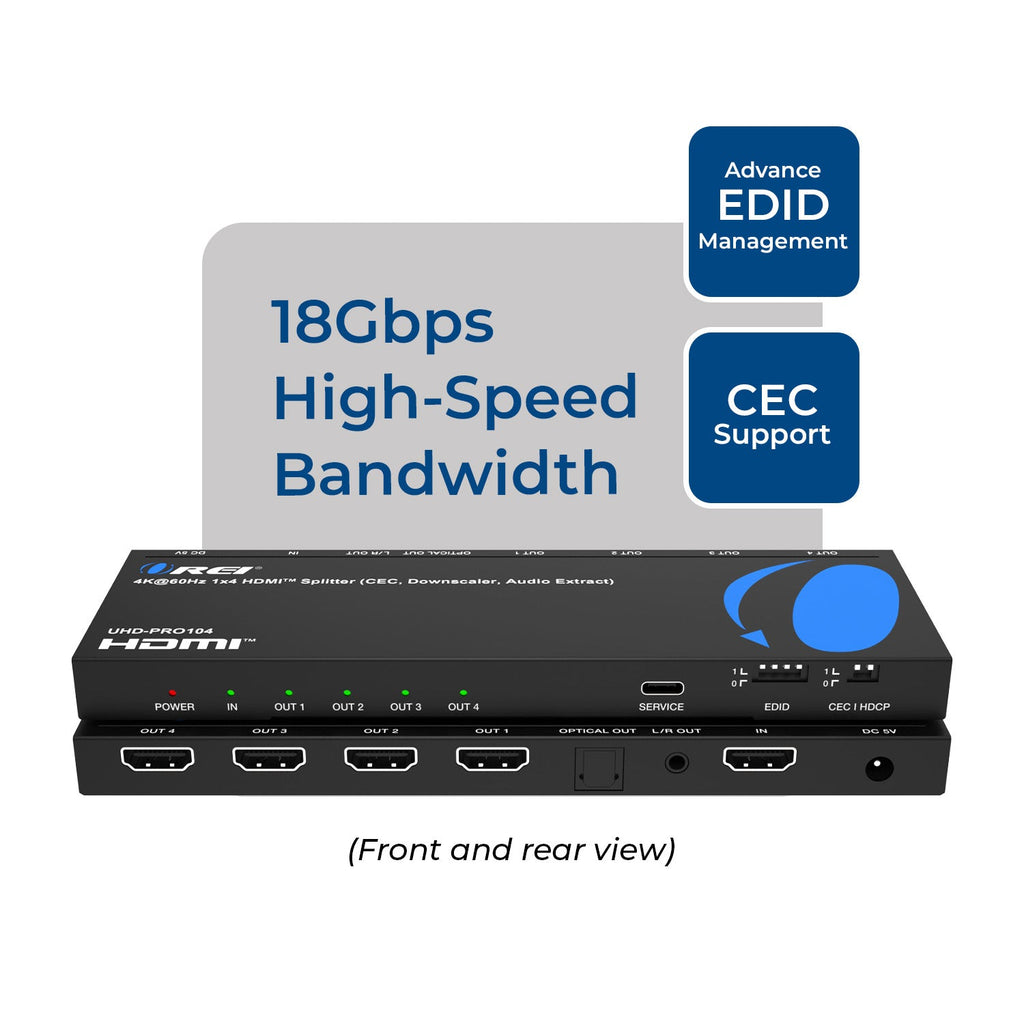

18Gbps video bandwidth
Automatic Downscale feature to downscale 4K content to 1080p.
Convenient & Easy EDID management through a switch
DTS HD, Dolby TrueHD lossless digital audio compliant

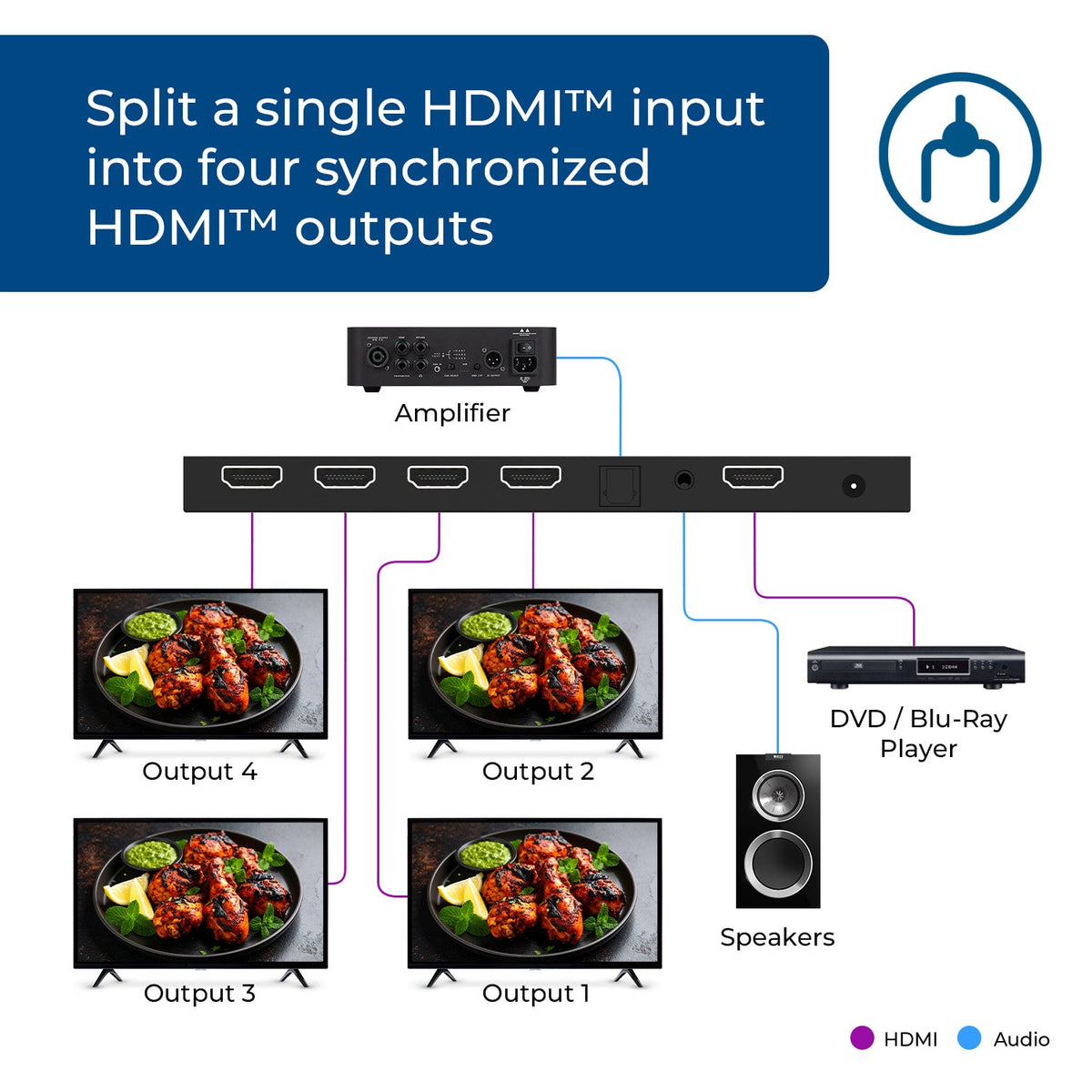

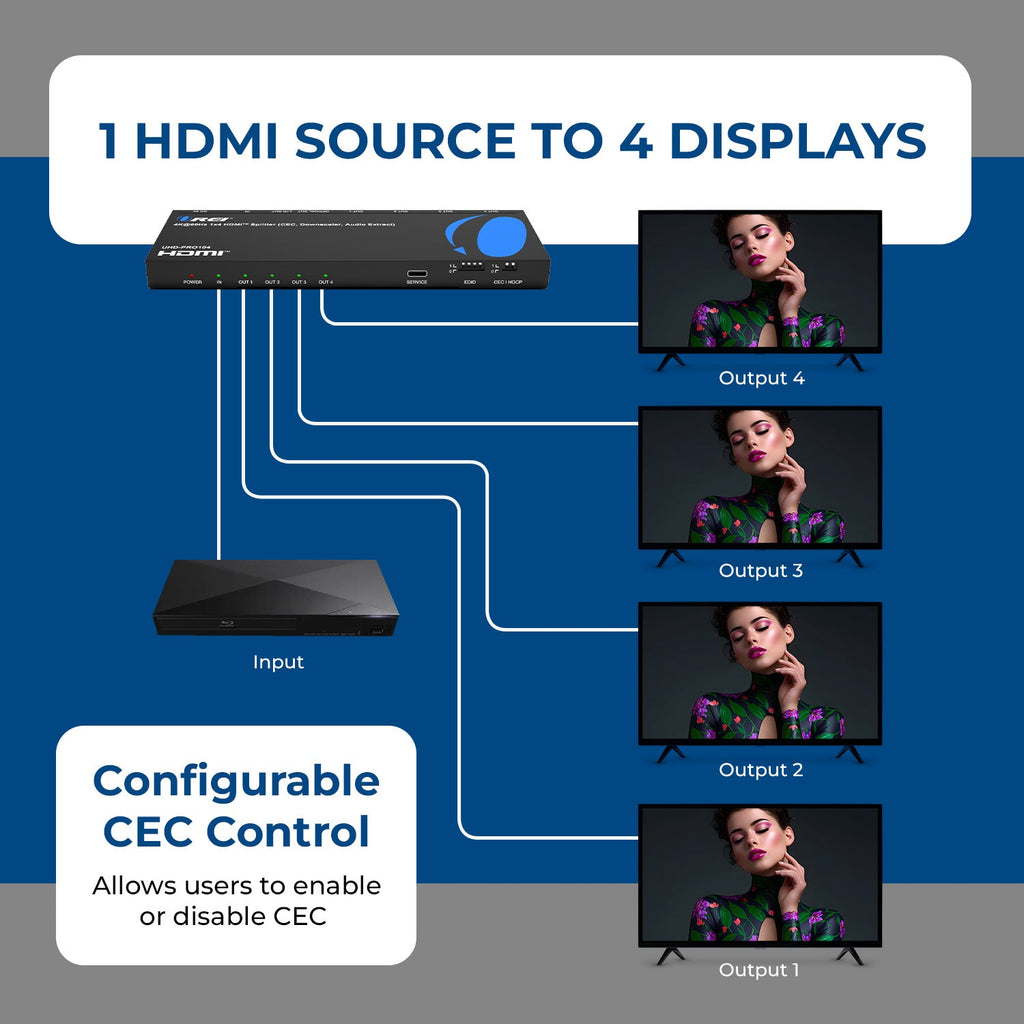

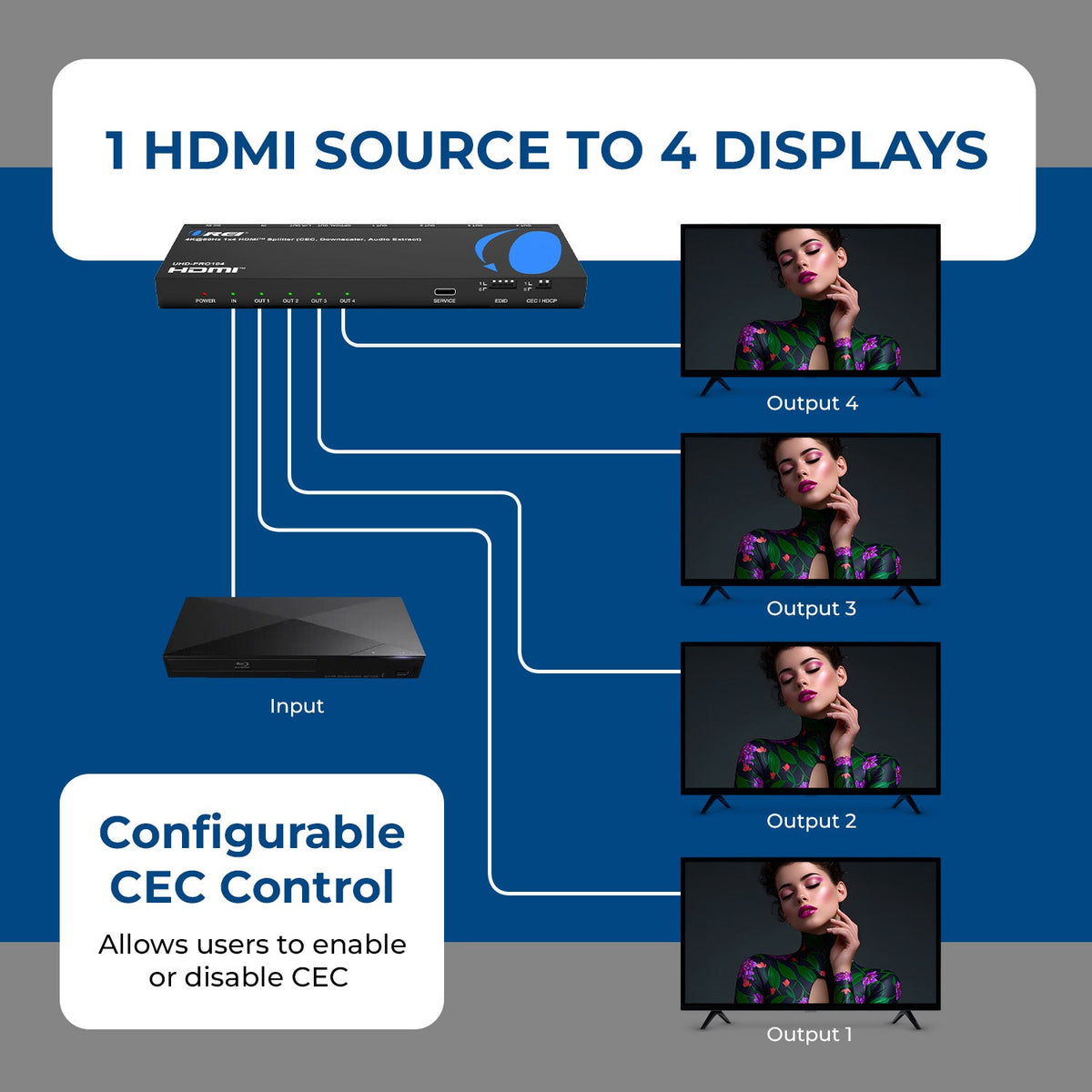

Duplicate content from a single media source to 4 displays
On/Off Switch for easy control
Compact & Lightweight Design

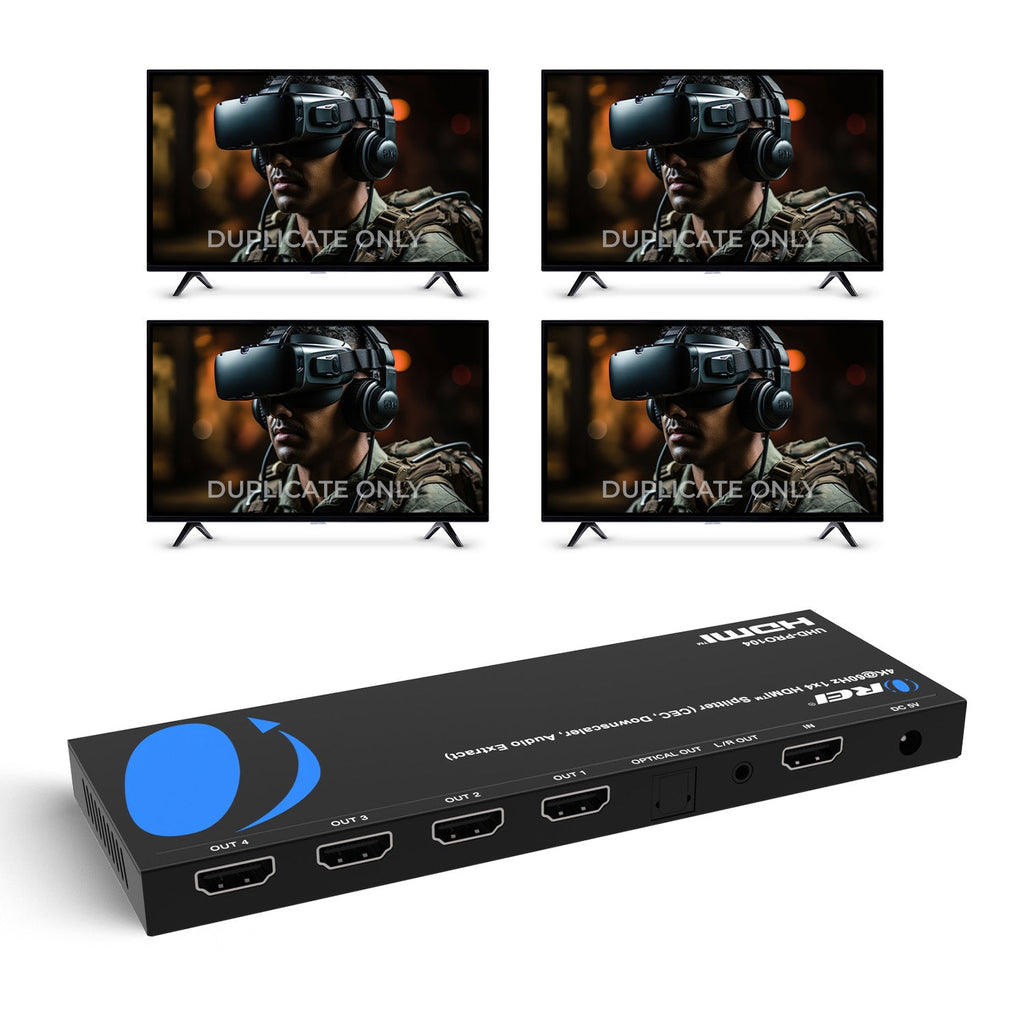

The UHD-PRO104 is a 4K 1 in 4 out HDMI Splitter that allows you to connect a single media source to 4 displays, duplicating the content on all screens. The device supports resolutions up to 4K@60Hz and is HDMI 2.0 & HDCP 2.2 compliant. This device is the perfect solution to watch content from a single media source on 4 displays at the same time. Moreover, the device also supports an auto-downscaling function. This allows you to connect 4K displays and 1080p displays at the same time, maintaining the 4K resolution on the 4K display and downscaling the media to 1080p to show on the 1080p display.
[tab]
CONNECTIVITY
INPUT:
1 × HDMI [Type A, 19-pin female]
OUTPUT:
4 × HDMI [Type A, 19-pin female]

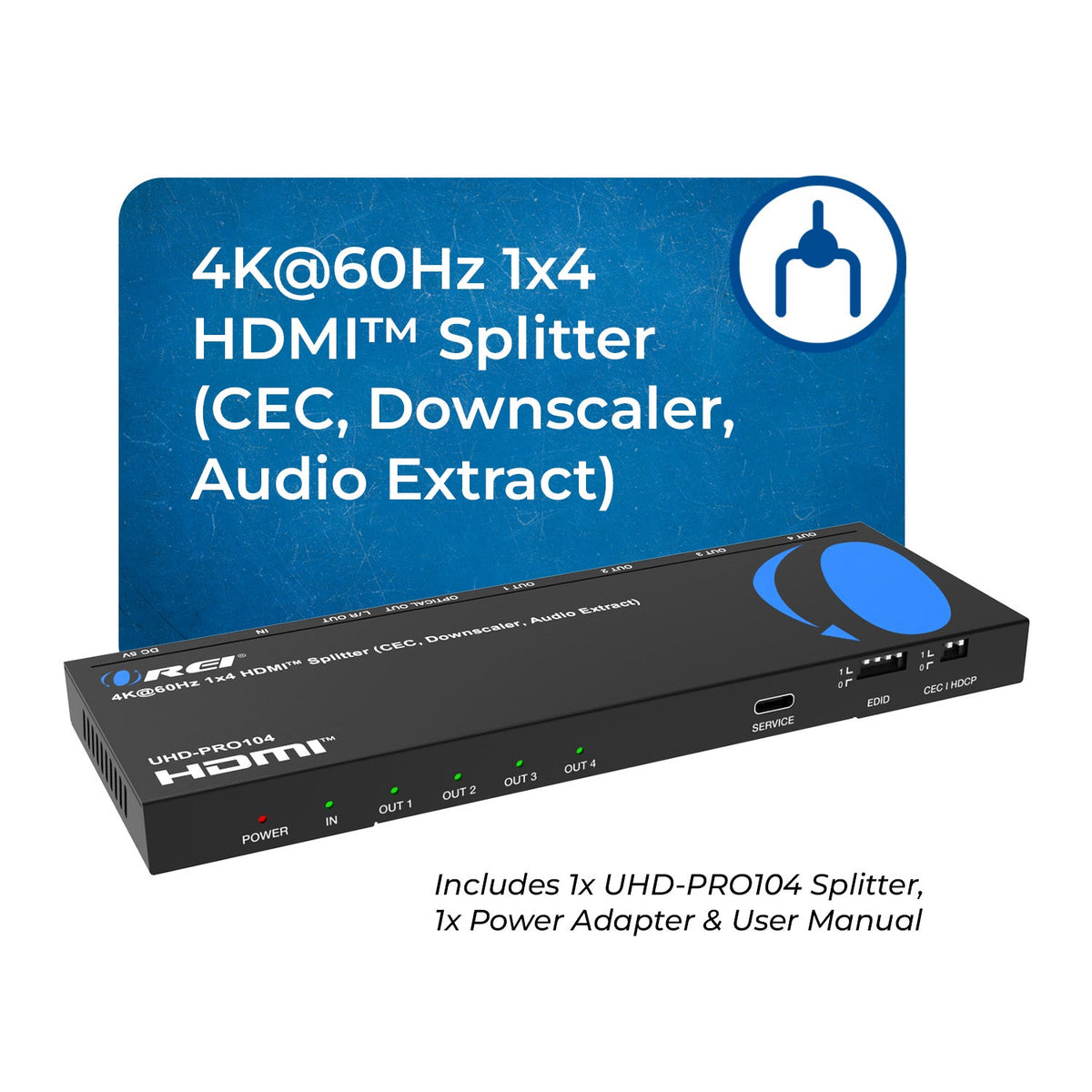

PACKAGE CONTENTS
1x UHD-PRO104 HDMI Splitter
1x Power Adapter
User Manual
SUPPORTED HDMI CABLES
HDMI 2.0/2.1
We recommend using high-quality HDMI 2.0/2.1 cables under 30 feet for optimum performance
EXTENDING DISTANCE
4K@60Hz:
30 Feet
VIDEO OUTPUT
Video Bandwidth:
18Gbps
Video Resolutions:
Up to 4K@60Hz
ADDITIONAL FEATURES
CEC:
No
ARC:
No
USB KVM:
No
PoC/PoE:
No
IR Control:
No
Downmix:
No
Downscale:
Yes
Over IP:
No
HDBaseT:
No
RS-232:
No
AUDIO SUPPORT
HDMI Audio Formats:
PCM 2, 5.1, & 7.1CH, Dolby TrueHD, DTS-HD, DTS
COMPLIANCES
HDMI Compliance
HDMI 2.0
HDCP Compliance
HDCP 2.2
POWER
Power Consumption:
3W (Max)
Power Supply:
Input: AC 100-240V 50/60Hz
DC 5V/0.6A
DIMENSIONS & WEIGHT
Length:
152mm/5.98in
Width:
63mm/2.48in
Height:
20mm/0.79in
Weight:
102g/3.6oz
PROPERTIES
Color:
Black
Housing:
Metal Enclosure
WARRANTY
1-Year Manufacturer's Warranty
[/tab]
[shortdes]
1 in 4 out HDMI splitter With Auto Downscale
Video Resolutions up to 4K@60Hz
Advanced EDID management
[/shortdes]
General Information
UPC
850008956478
