Video resolution up to 8K@60Hz 4:2:0 12bit and 4K@120hz 4:4:4 12bit.
HDR/10/10+, Dolby Vision, and HLG pass-through.
VRR, ALLM, QMS, QFT, SBTM support.
Audio Extraction through Optical and Analog Outputs.
8K to 4K or 8K/4K to 1080P auto downscaling on all outputs.
Automatic HDR to SDR Conversion on all outputs.
Advanced EDID management.

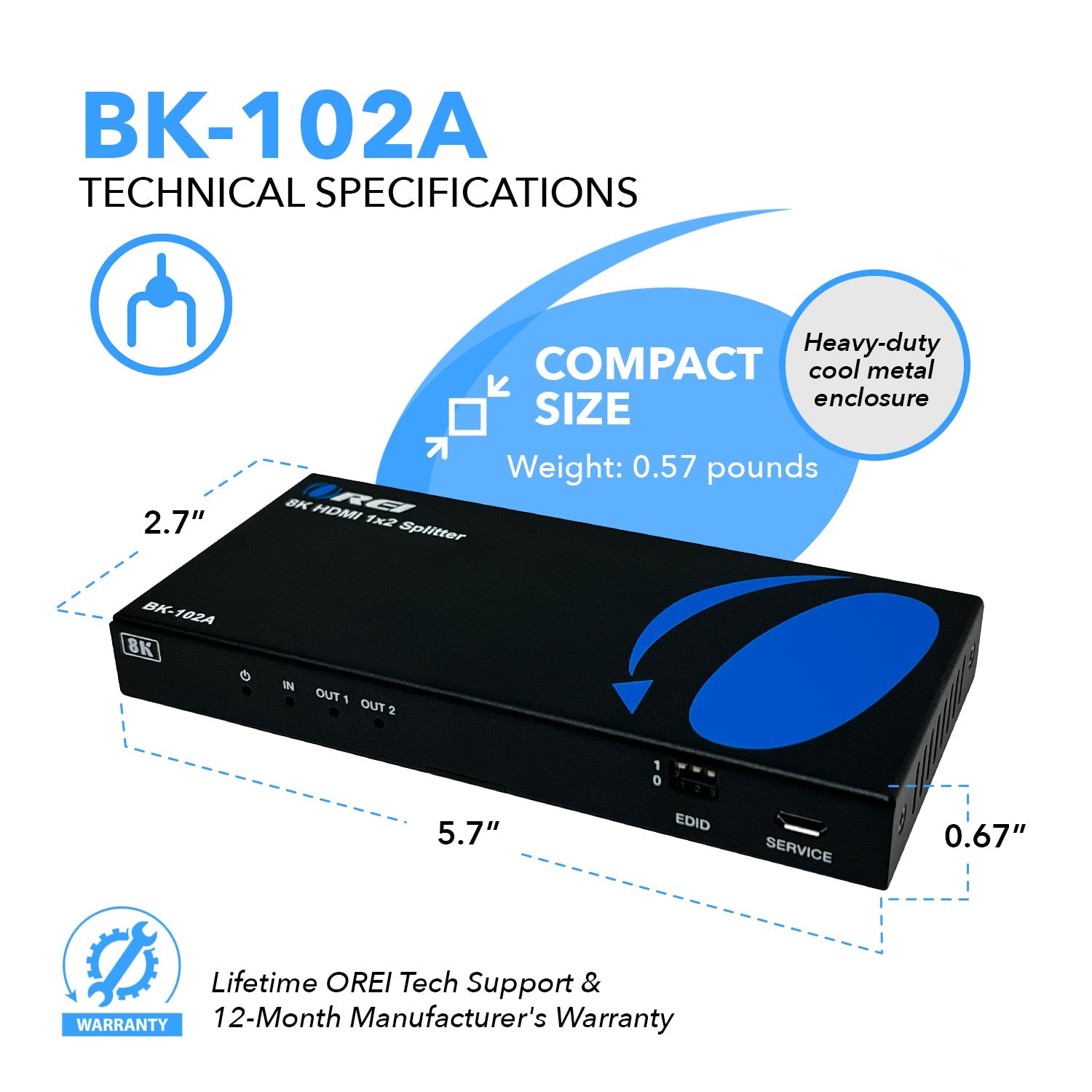

Compact and robust design

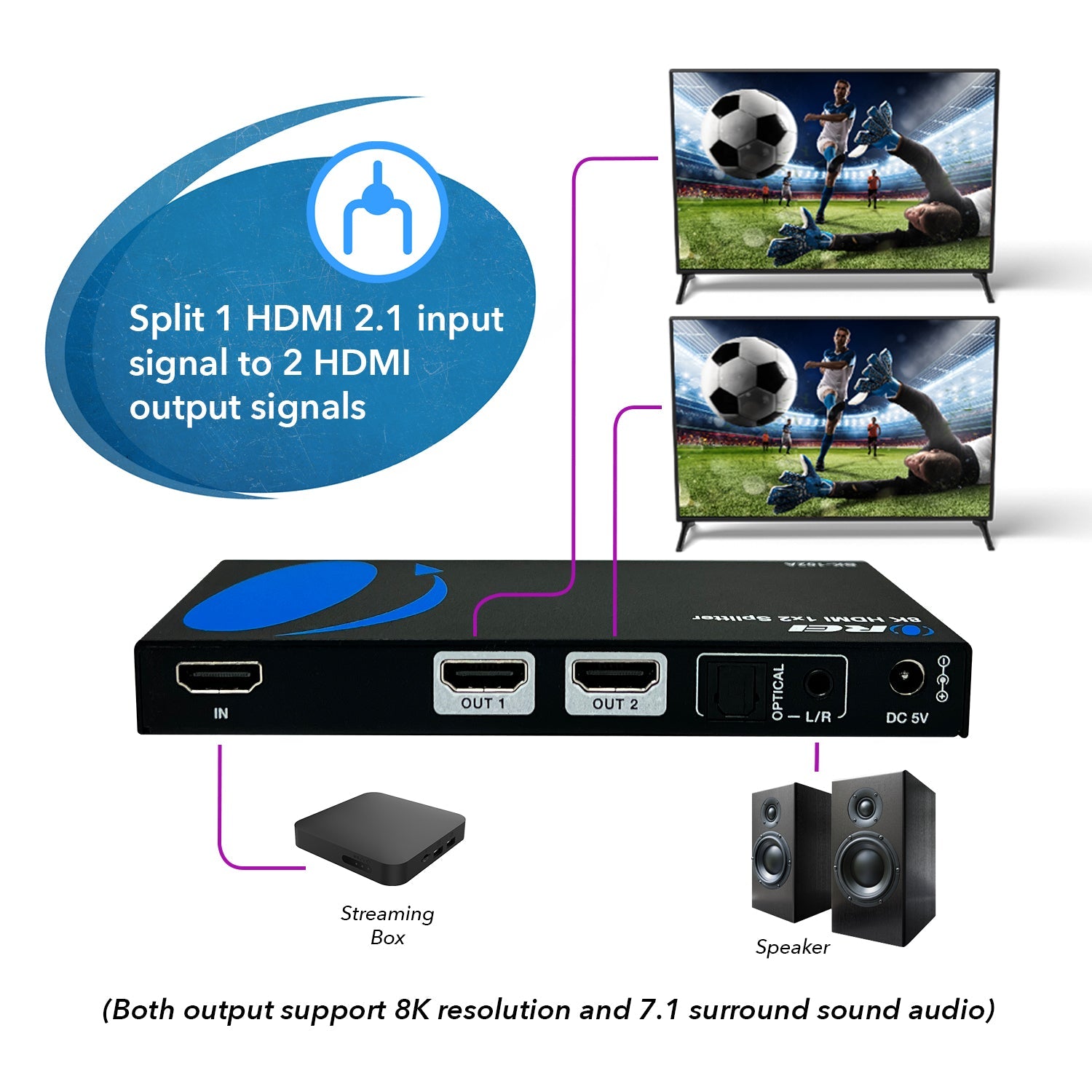

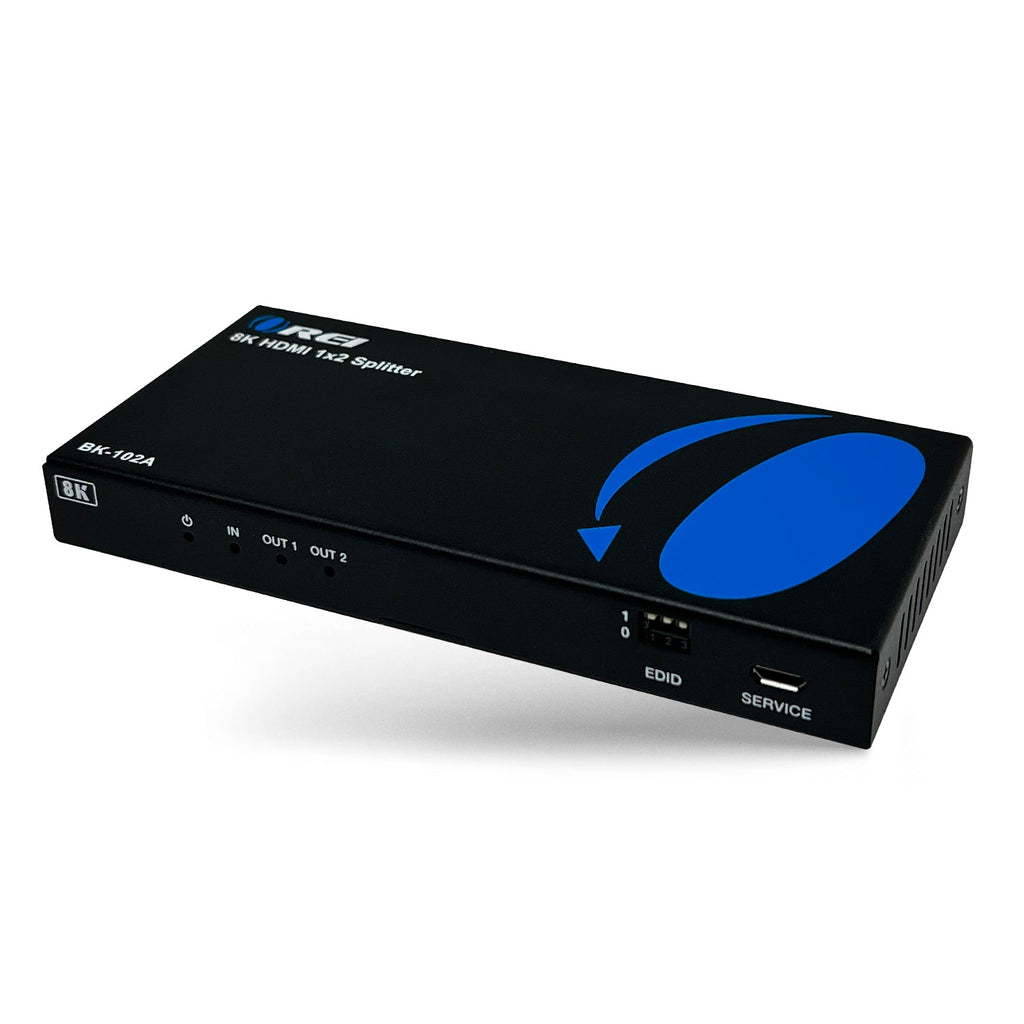

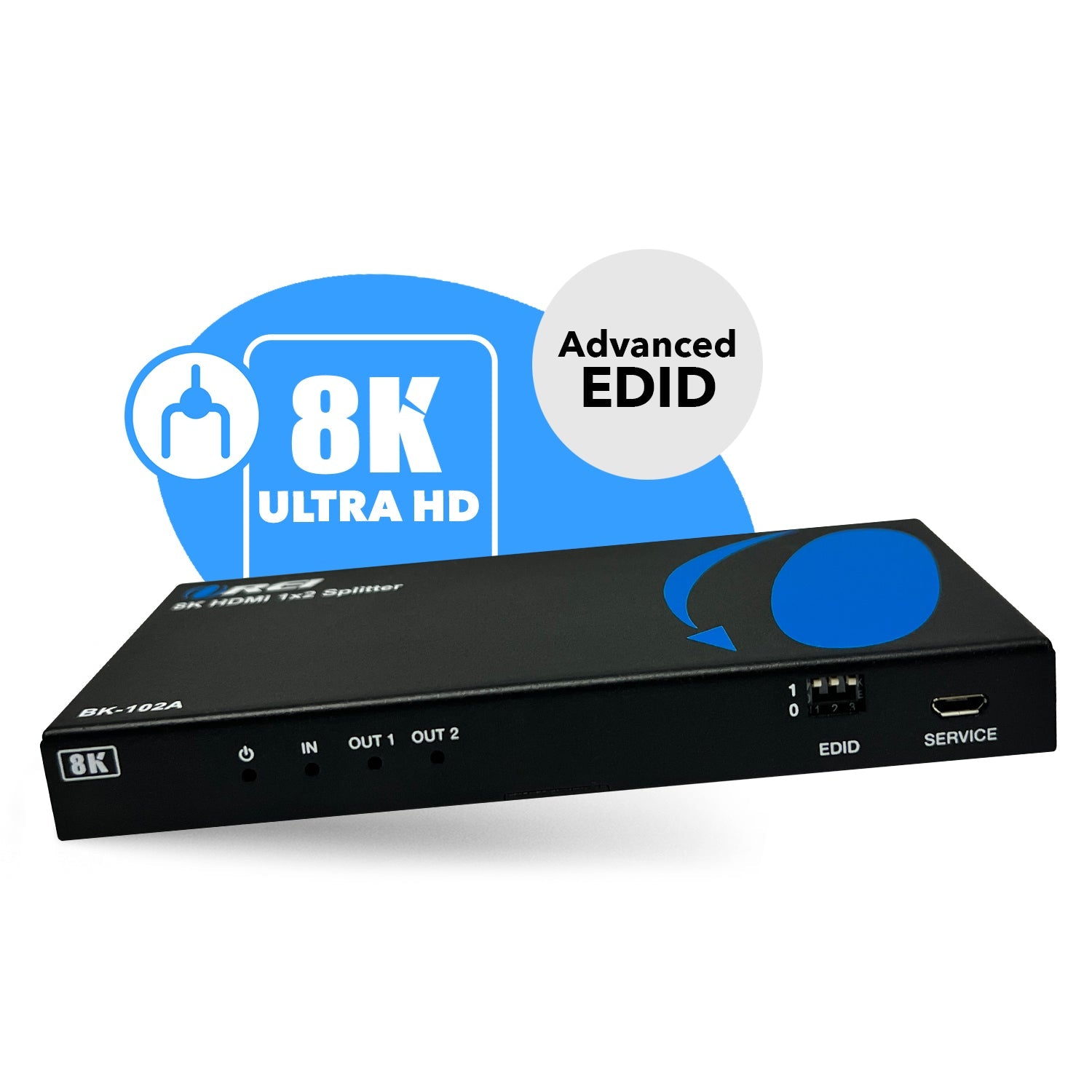

The BK-102A 8K 1x2 Splitter is an advanced solution for splitting a single media signal to 2 HDMI outputs synchronously, with video resolutions up to 8K@60Hz 4:2:0 12bit. It features audio extraction via optical and analog outputs, allowing you to separate audio for an immersive experience. It supports video bandwidth of up to 48Gbps FRL & 18Gbps TMDS, and complies with HDMI 2.1 and HDCP 2.3 standards. HDR/10/10+, Dolby Vision, and HLG pass through is supported. The device features advanced EDID management and can also downscale from 8K to 4K and from 8K/4K to 1080p. Moreover, it also features automatic HDR to SDR conversion for all outputs. It also features a compact design and plug & play setup.
[tab]

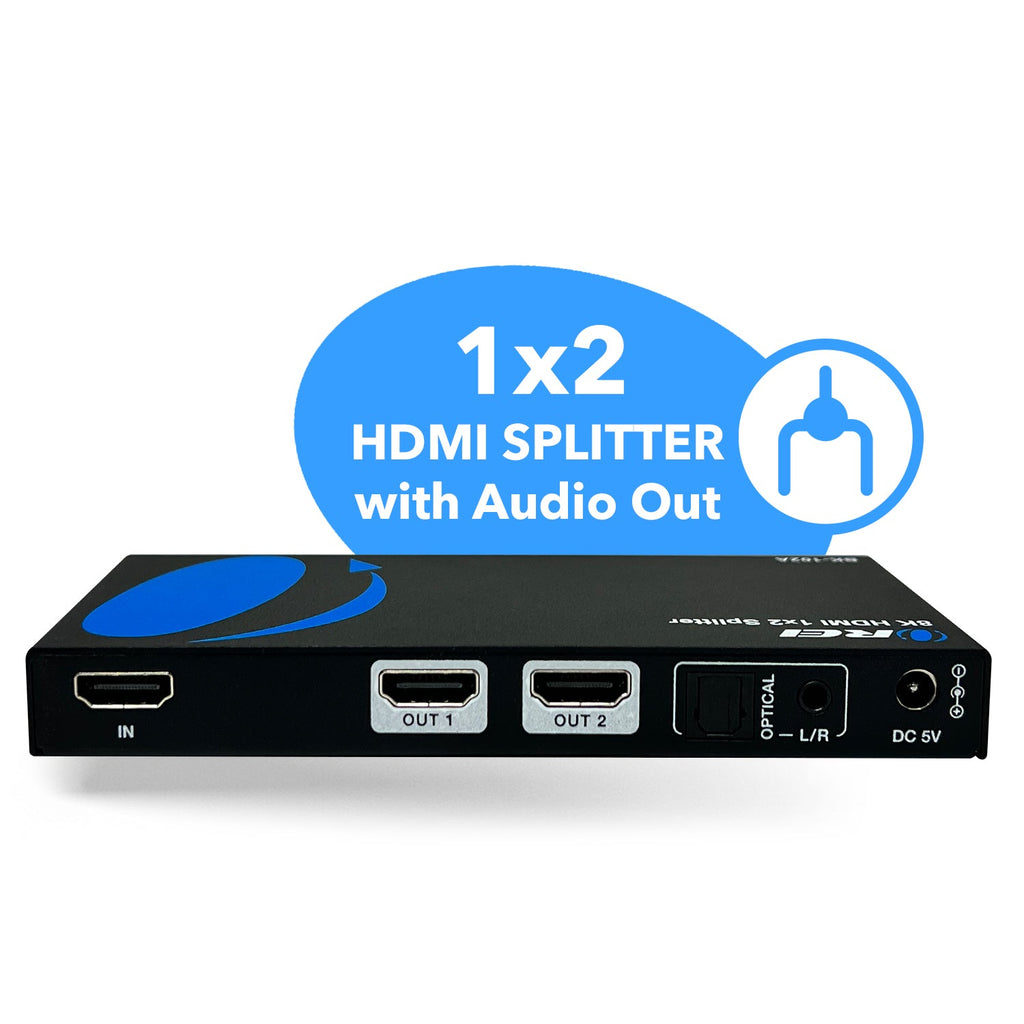

CONNECTIVITY
INPUT:
1 × HDMI [Type A, 19-pin female]
OUTPUT:
2 × HDMI [Type A, 19-pin female]
1 × L/R [3.5mm Stereo Mini-jack]
1 × Optical [S/PDIF]
CONTROL:
1× SERVICE [USB-C, Update port]
PACKAGE CONTENTS
1x BK-102A HDMI Splitter
1x Power Adapter
User Manual
SUPPORTED HDMI CABLES
HDMI 2.0/2.1
We recommend using high-quality HDMI 2.0/2.1 cables under 30 feet for optimum performance
