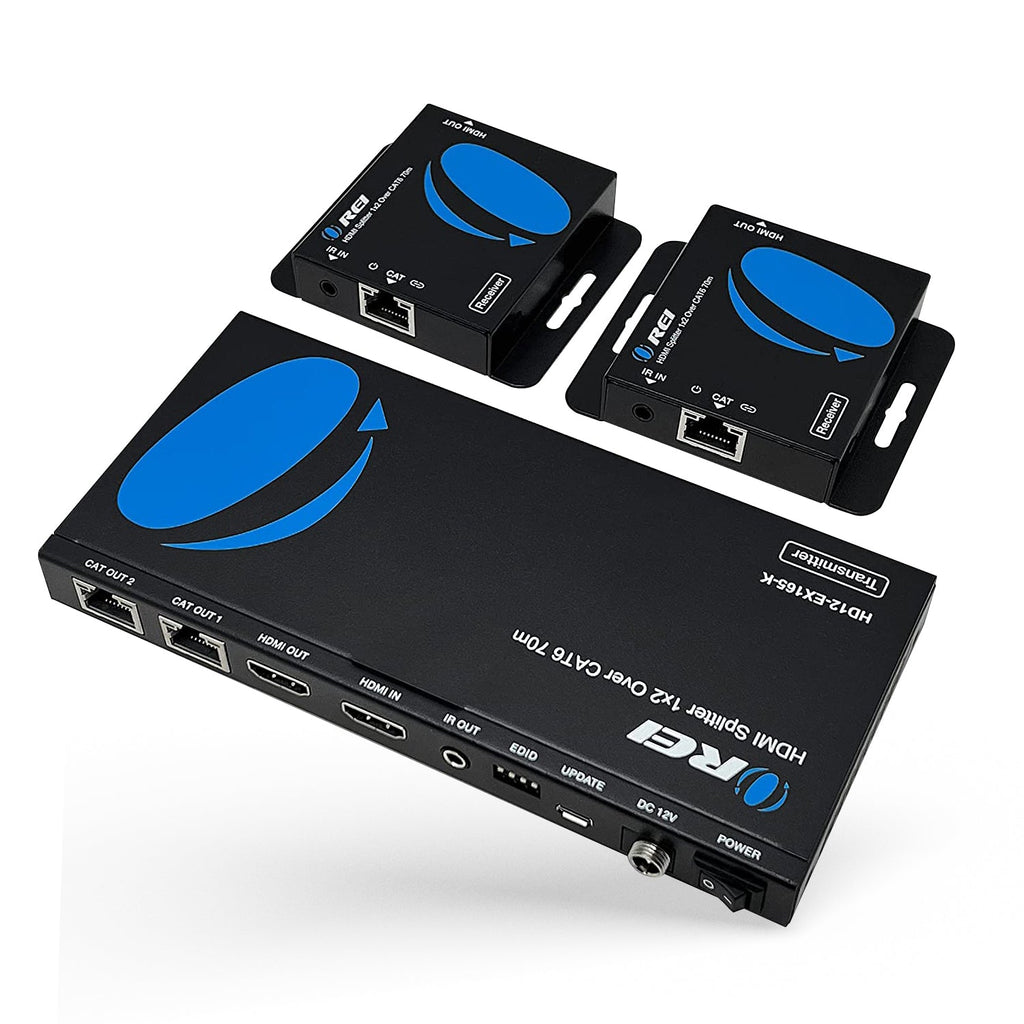

HD12-EX165-K: 1x2 HDMI Extender Splitter over CAT6 up to 165 feet(70m)
Key Features:
HDMI 1.4 and HDCP 1.4 compliant
Video resolutions up to 4K@30Hz and 1080p@60Hz
10.2Gbps video bandwidth
Extend audio/video signals up to 130 feet at 4K@30Hz and up to 230 feet at 1080p@60Hz
Audio formats: LPCM 7.1, Dolby True HD and DTS-HD Master Audio
Unidirectionla IR control from the Receivers to the Transmitter

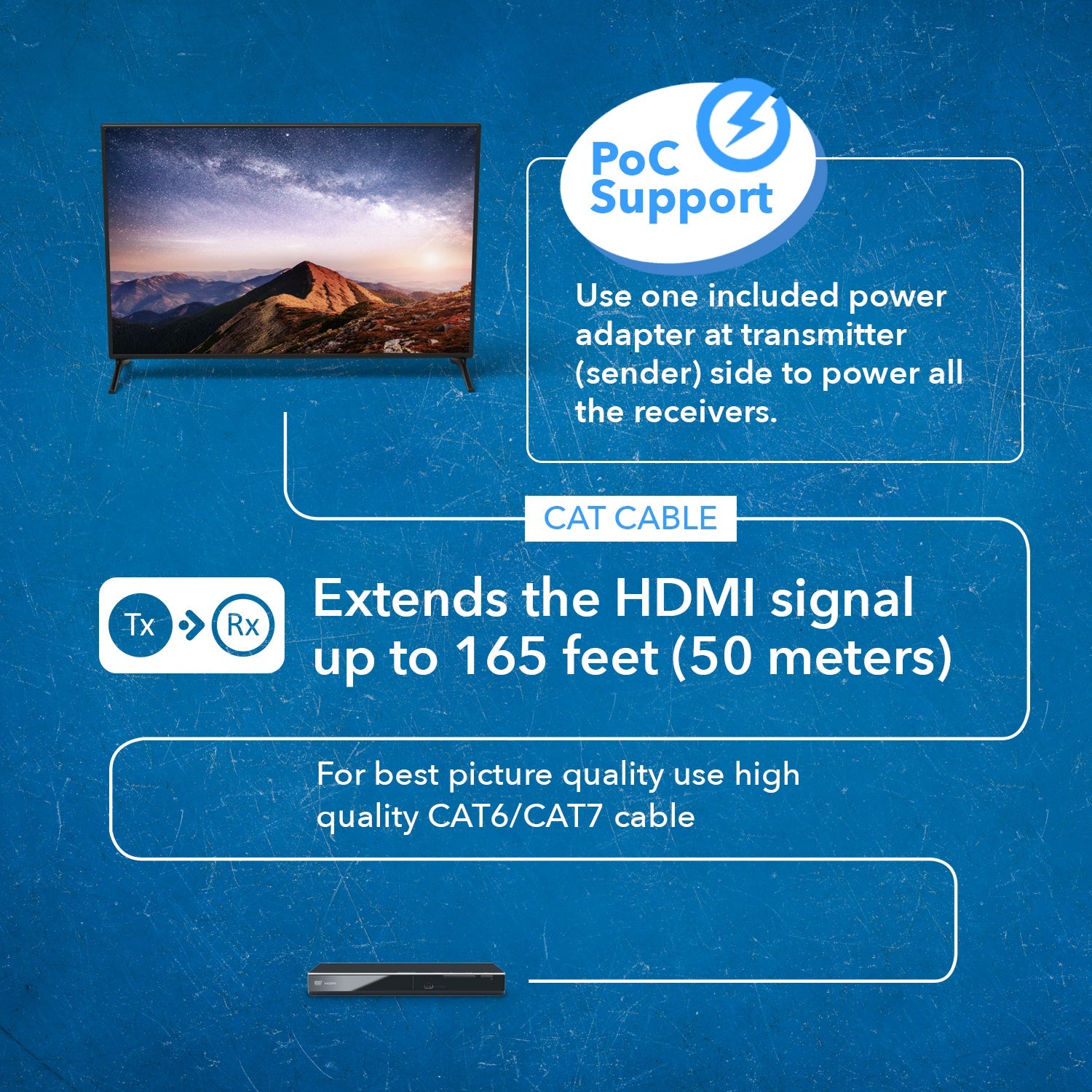

PoC support requiring only one power adapter
HDMI loop out to connect a display near the source
Advanced EDID management
Robust metal build and plug and play setup

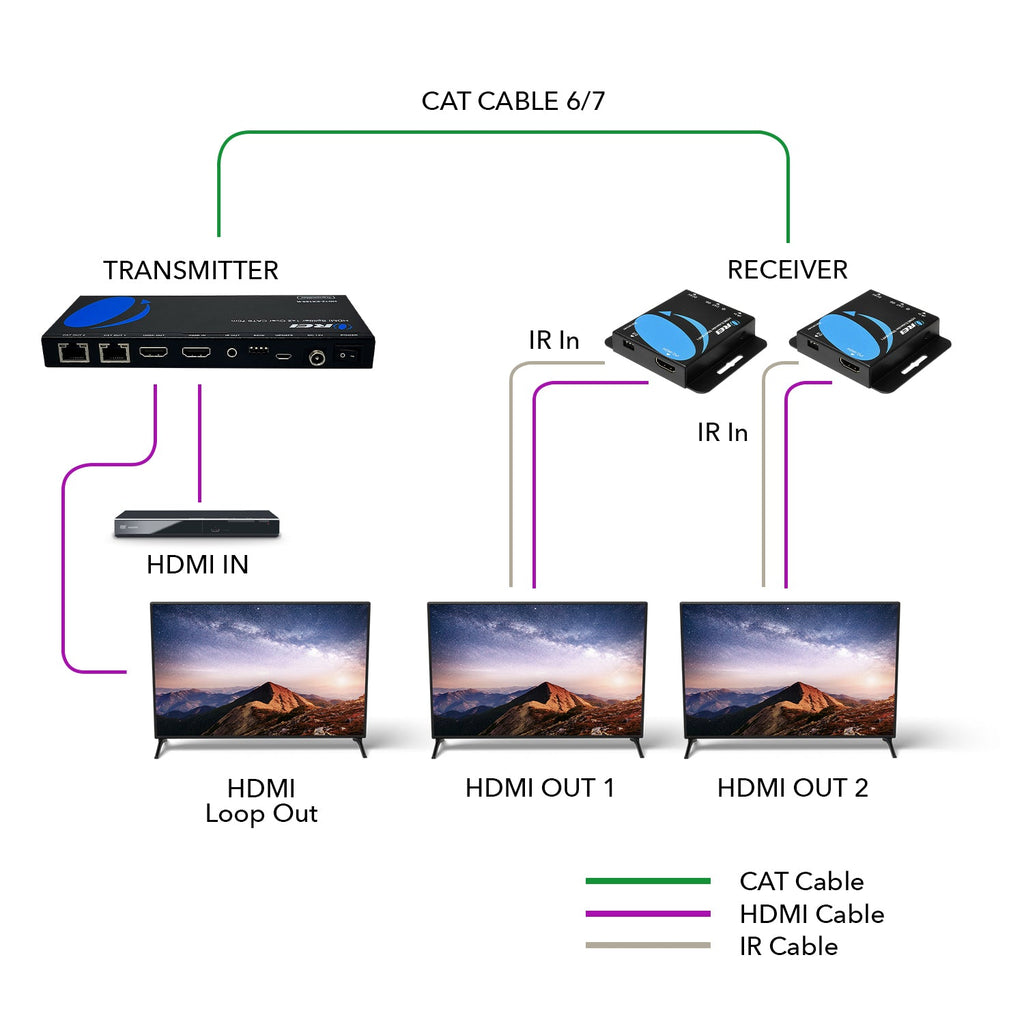

The HD12-EX165-K efficiently distributes one HDMI source signal to any two display devices placed far away. It supports video resolutions up to 4K@30Hz and 1080p@60hz up to 165 feet over a CAT6/7 cable. The device is HDMI 1.4 and HDCP 1.4 compliant. It provides video bandwidth of 10.2Gbps while providing support for audio formats such as LPCM 7.1, Dolby True HD and DTS-HD Master Audio. The Transmitter features an HDMI loop output port to connect a display near the source. The device also comes with unidirectional IR control from receiver to the Transmitter and also support PoC requiring only one power adapter. This Extender Splitter is perfect for video distribution to 2 displays placed far away in any residential or commercial setups given its robust metal build and plug and play setup.
Available in 1x4 and 1x8 versions as well.
[shortdes]
1x2 Extender Splitter over CAT6
Video reoslutions up to 4K@30Hz and 1080p@60Hz
Unidirectional IR control
[/shortdes]
[tab]
CONNECTIVITY
Transmitter:
INPUT:
1 × HDMI [Type A, 19-pin female]
OUTPUT:
1 × HDMI [Type A, 19-pin female]
2 x CAT [RJ45, 8-pin female]
CONTROL:
1 x UPDATE [Micro USB]
1 × IR OUT [3.5mm Stereo Mini-jack]
Receiver:
INPUT:
1 x CAT [RJ45, 8-pin female]
OUTPUT:
1 × HDMI [Type A, 19-pin female]
CONTROL:
1 x IR IN [3.5mm Stereo Mini-jack]
PACKAGE CONTENTS
1x Transmitter
2x Receiver
1x IR Blaster cable
2x IR Receiver cable
2x Mounting ear
4x Machine Screw (KM3*4)
1x Power Adapter
User Manual
SUPPORTED CAT CABLES
CAT5e, CAT6, CAT7:
We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance
EXTENDING DISTANCE
4K@30HZ:
130 Feet
1080P@60Hz:
230 Feet
VIDEO OUTPUT
Video Bandwidth:
10.2Gbps
Video Resolutions:
Up to 4K@30Hz 4:4:4
ADDITIONAL FEATURES
CEC:
No
ARC:
No
USB KVM:
No
PoC/PoE:
Yes
IR Control:
Yes
Downmix:
No
Downscale:
No
Over IP:
No
HDBaseT:
No
RS-232:
No
LOOP-OUT/LOCAL PORT
Has loop out port:
Yes
Number of Loop out ports:
1
AUDIO SUPPORT
HDMI Audio Formats:
LPCM 7.1, Dolby True HD, and DTS-HD Master Audio
COMPLIANCES
HDMI Compliance
HDMI 1.4
HDCP Compliance
HDCP 1.4
POWER
Power Consumption:
5.4W (Max)
Power Supply:
Input: AC 100-240V 50/60Hz
Output: DC 12V/1A

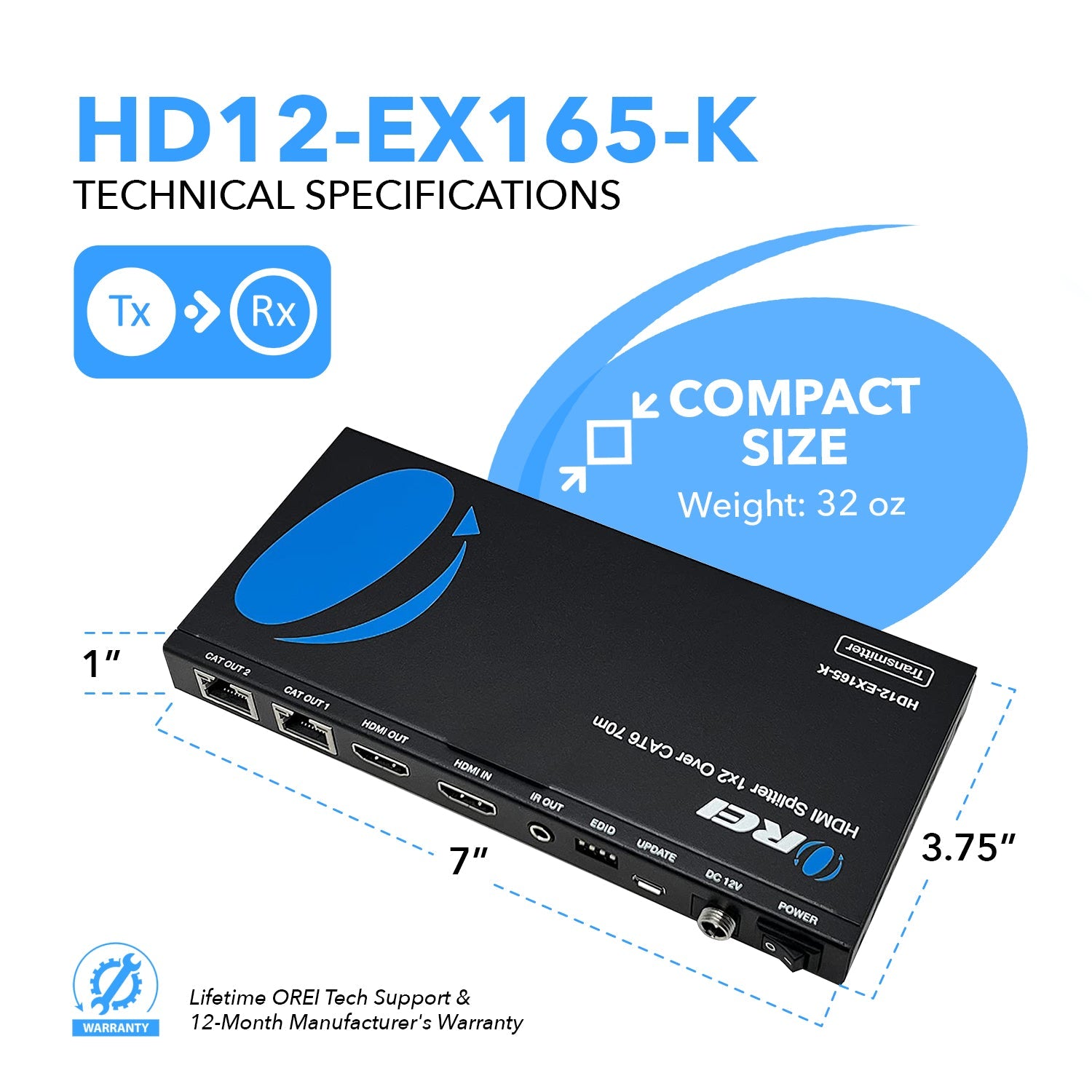

DIMENSIONS & WEIGHT
Transmitter:
Length:
175mm / 6.89in
Width:
82mm / 3.23in
Height:
18mm / 0.70in
Weight:
366g / 12.91oz
Receiver:
Length:
79.5mm / 3.12in
Width:
69mm / 2.71in
Height:
16.5mm / 0.64in
Weight:
130g / 4.58oz
PROPERTIES
Color:
Black
Housing:
Metal Enclosure
WARRANTY
1-Year Manufacturer's Warranty
[/tab]
[tab1]
FAQs
Yes, you can purchase these things directly from us. Please contact us & we will assist you further.
No, this product doesn not extend multiple screens. It will duplicate the input sources to multple outputs.
Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.
Yes, you can implement the daisy chain method.
Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.
We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.
Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.
Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.
No, this product doesn't upscale/downscale the video resolutions.
You can extend the display devices up to 400 Feet when using with a shielded CAT6 cable.
The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.
If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.
Please contact us so that we can troubleshoot the issue.
You can upgrade the firmware by connecting the PC & this device via RS-232 cable.
Please note that this product only supports the CEC function between HDMI input & HDMI output 1.
No, optical output doesn't supports CEC due to its limitations. CEC will work only with HDMI devices.
HDBaseT is the technology used for long distance transmission of lossless signals, resulting extremely low latency & giving the best picture quality.
In normal extenders, if you extend your signals up to some extend, the quality of the signals will degrade & you may find some latency issues. HDBaseT is the lastest standard which provides extending your signals to the longer distance without degrading the quality of the signals & with 0 latency.
We recommend you using a shielded CAT6 cables for optimum performance.
Our all the extenders supports IR Frequency & the devices using RF frequency will not be compatible with our products.
The IR Blaster/Emitter should be connected to the IR out port on the Transmitter and the IR Receiver should be connected to the IR in on the Receiver.
