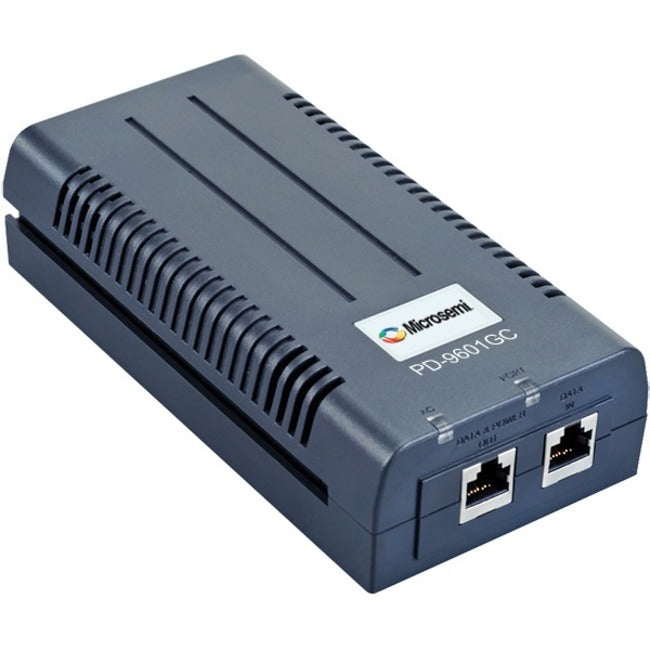

Microsemi 1 port, 90W, IEEE 802.3bt-compliant indoor port PoE midspan
The single port PoE midspan provides up to 90 Watts of power over Ethernet and offers a IEEE 802.3bt-compliant solution for remote powering of current as well as emerging high power applications. The PD-9601GC is designed to power PoE compliant devices such as IEEE 802.11ax access points, pan-tilt-zoom (PTZ) and dome cameras, IP videophones, thin clients and other high power Ethernet end terminals requiring up to 90W of power.
- Safety: UL/EN/IEC 60950-1 (Ed.2)
- Compact design
- EMI: FCC Part 15, Class B, EN 55032 Class B (emissions), EN 55024 (immunity), VCCI
- Regulatory compliance: IEEE 802.3bt Type 4, RoHS Compliant, WEEE Compliant, CE
- Power input: AC
- Power cord options: US, EU (Europe), UK, BR (Brazil), AU (Australia), JP (Japan)
- PoE output: 90W
- Data rates: 10/100/1000 Mbps
- Number of ports: 1
Product Type: PoE Injector
Environmentally Friendly: Yes
Environmental Certification: WEEE
Certifications & Standards:
- IEEE 802.3bt Type 4
- IEEE 802.3af/at
Product Series: PD-9600GC
Brand Name: Microchip
Compatibility:
- Access Points
- Pan-tilt-zoom (PTZ)
- Dome Cameras
- IP Videophones
- Thin Clients
- High Power Ethernet End Terminals
Form Factor: External
Length: 6.6"
Manufacturer: Microchip Technology Inc.
Product Model: PD-9601GC
Product Name: 1-Port, IEEE 802.3bt 90W PoE Midspan
Manufacturer Part Number: PD-9601GC/AC-US
Manufacturer Website Address: http://www.microchip.com
Package Contents:
- 1-Port, IEEE 802.3bt 90W PoE Midspan
- Power Cord
Limited Warranty: 1 Year
Weight (Approximate): 1.05 lb
