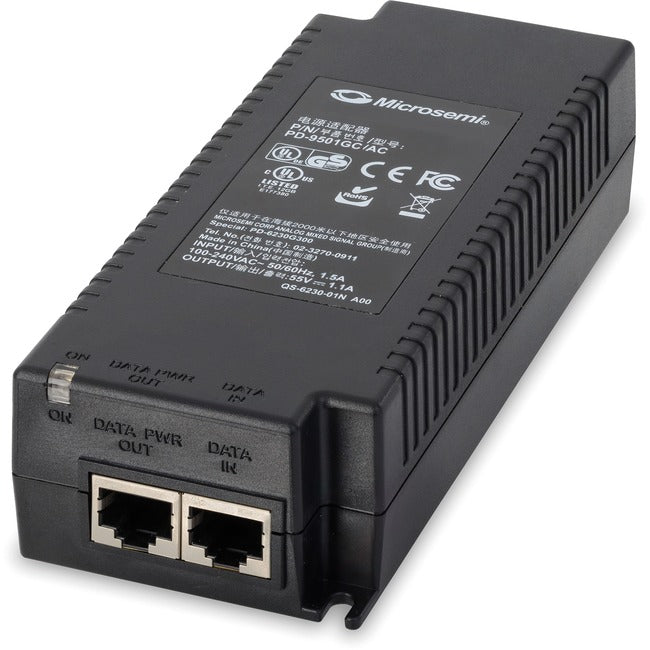

Microsemi 1 port, 60W, IEEE 802.3bt-compliant indoor PoE midspan PD-9501GC/AC-US

Microsemi 1 port, 60W, IEEE 802.3bt-compliant indoor PoE midspan

The single port PoE midspan provides up to 60 Watts of power over Ethernet and offers a IEEE 802.3bt-compliant solution for remote powering of current as well as emerging high power applications. The PD-9501GC is designed specifically to power IEEE 802.11n and IEEE 802.3bt access points, pan-tilt-zoom (PTZ) and dome cameras, IP videophones, thin clients and other high power Ethernet end terminals.

• Number of ports: 1


• PoE output: 60W


• Data rates: 10/100/1000 Mbps


• Power input: AC


• Power cord options: US, EU (Europe), UK, BR (Brazil), AU (Australia), JP (Japan)


• Regulatory compliance: IEEE 802.3bt (PoE), RoHS Compliant, WEEE Compliant, CE


• EMI: FCC Part 15, Class B, EN 55032 Class B (emissions), EN 55024 (immunity), VCCI


• Safety: UL/EN/IEC 60950-1 (Ed.2)


• Compact design

Product Type: PoE Injector
Environmentally Friendly: Yes
Environmental Certification: REACH
Certifications & Standards:

• CE
• IEEE 802.3bt (PoE)

Product Series: PD-9500GC
Brand Name: Microchip
Length: 5.9"
Manufacturer: Microchip Technology Inc.
Product Model: PD-9501GC
Product Name: 1-Port, IEEE 802.3bt 60W PoE Midspan
Manufacturer Part Number: PD-9501GC/AC-US
Manufacturer Website Address: http://www.microchip.com
Package Contents:

• 1-Port, IEEE 802.3bt 60W PoE Midspan
• Power Cord

Limited Warranty: 1 Year
Weight (Approximate): 11.29 oz
