AtlasIED TSD-PA20VG Amplifier - 20 W RMS - 1 Channel - Black
The TSD-PA20VG is a cost effective mono amplifier for 4? and distributed constant voltage speaker systems. Applications include hallways and classrooms. The TSD-PA20VG is also a cost effective alternative for small projector systems as it can be used with as many as (16) 25/70/100V ceiling speakers (tapped at 1W each), plus the extremely small footprint allows for easy mounting.

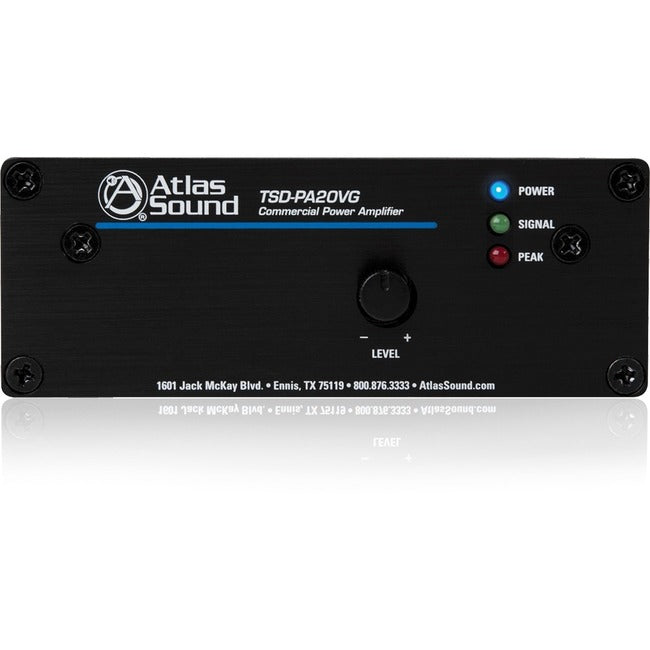

For sound masking applications the TSD-PA20VG has the capacity to drive up to 34 masking speakers tapped at .5W each on a 70.7V line. Output is gain controlled from a potentiometer on the front panel with removable knob.
Unit requires Power Supply that is sold separately for proper function, multiple TSDs can be powered with one power supply based on current requirements. You must use the TSD24V2500MA power supply. For multiple TSD applications use the TSD Power Calculator to determine the proper power supply needed.
- Power Supply Sold Separately
- Compact Chassis Design
- Energy Efficient
- Cable Management System

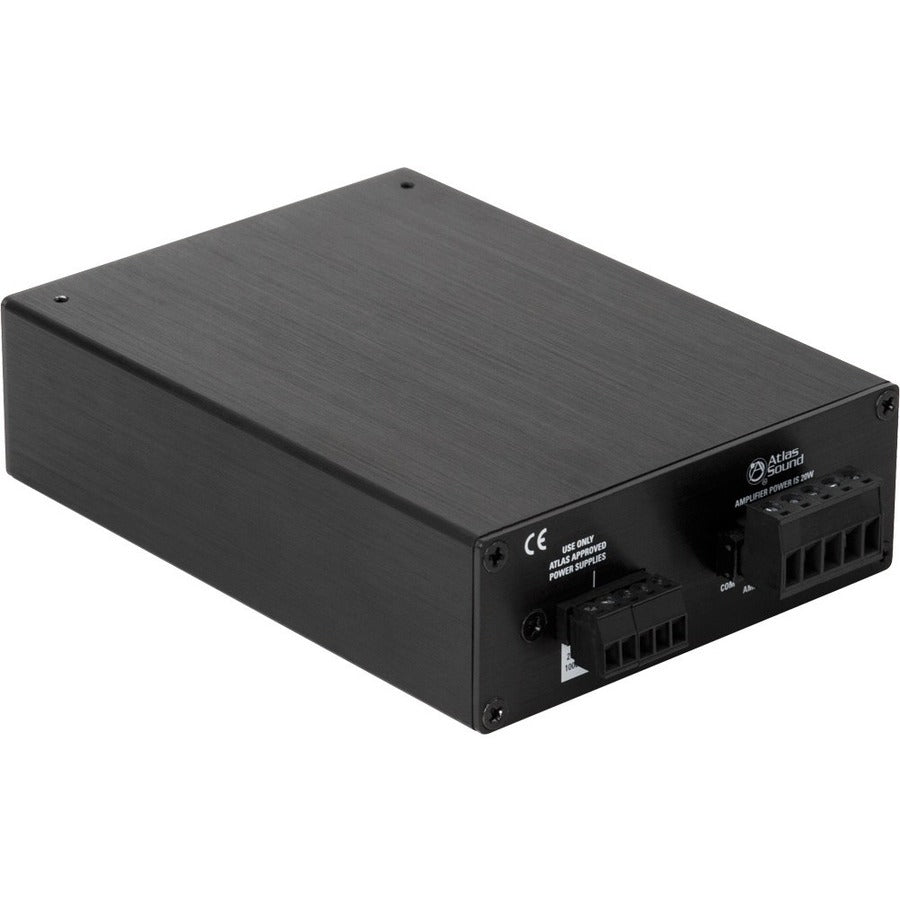

- Removable Phoenix Style I/O Connectors

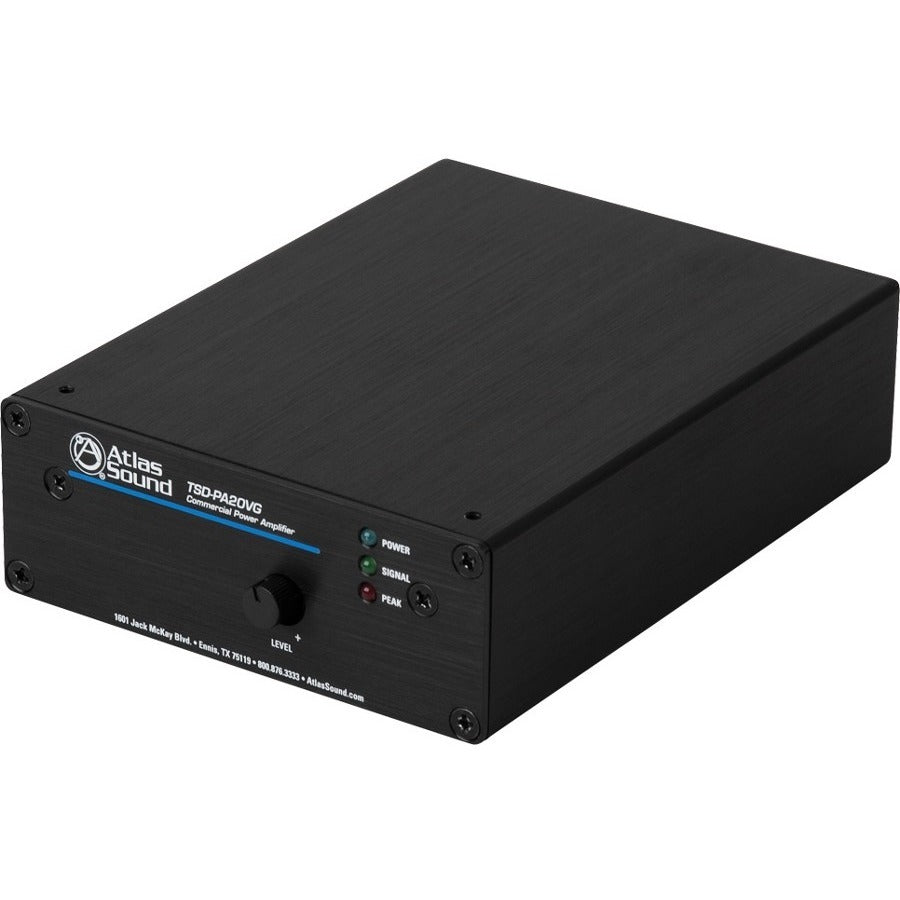

- Input Signal and Peak Indicator LEDs
- Removable Level Control with Set-It-And-Forget-It Security Cover
- One (1) Balanced Input

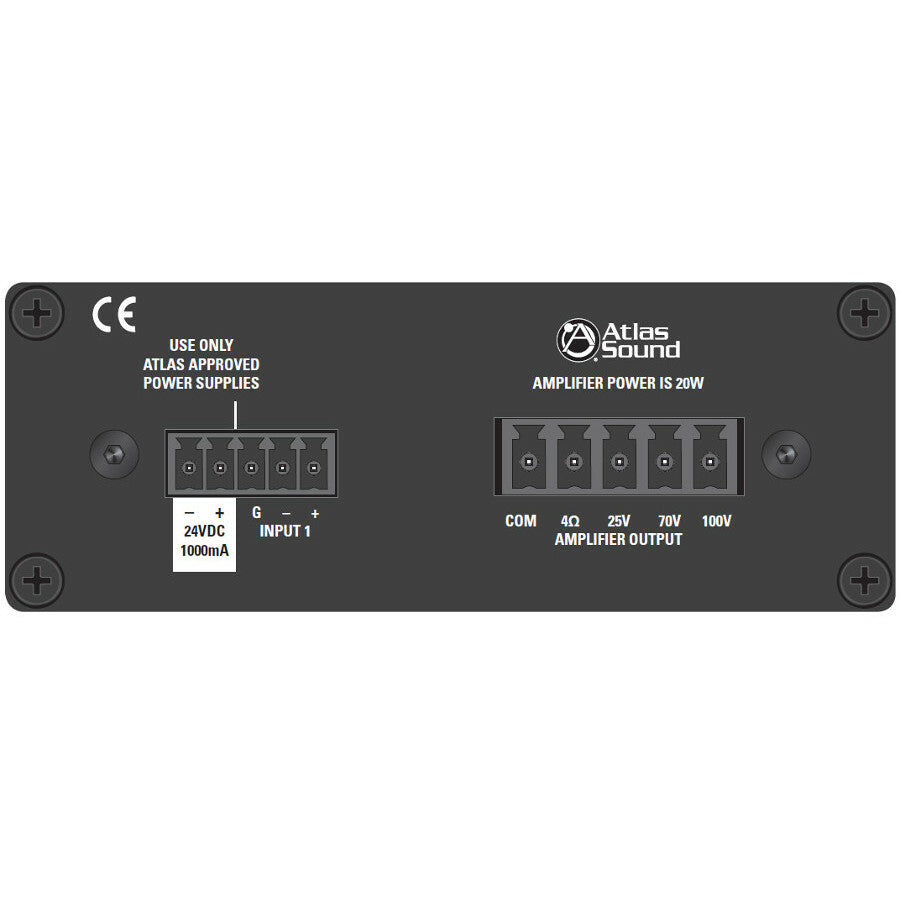

- 4?/25V/70.7V/100V Output
Product Type: Amplifier
Environmentally Friendly: Yes
Environmental Certification: RoHS
Product Color: Black
Product Series: TSD
Brand Name: AtlasIED
Manufacturer: Atlas Sound LP.
Product Model: TSD-PA20VG
Product Name: TSD-PA20VG Mono Power Amplifier
Manufacturer Part Number: TSD-PA20VG
Manufacturer Website Address: http://www.atlassound.com
Package Contents:
- TSD-PA20VG Mono Power Amplifier
- Velcro
- 2 x Brackets
- 2 x Cable Retainer
Limited Warranty: 3 Year
Weight (Approximate): 5.82 oz
