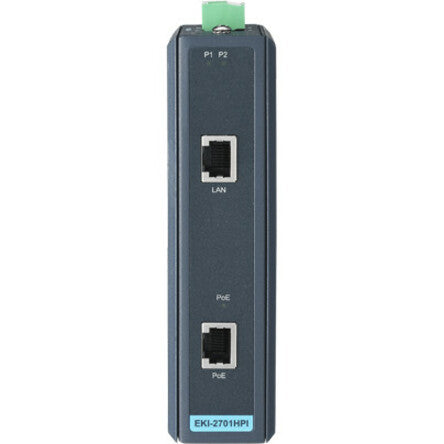

Advantech EKI-2701HPI PoE Injector
With the technology of PoE (Power over Ethernet), we can transfer both data and electrical power to Ethernet-enabled devices using a standard CAT5 cable. EKI-2701HPI is compliant IEEE 802.3af/at and inject 30W for PD device. This product can operate in a wide range of Temp. between -40 to 75°C and support wide power input range between 24 to 48 VDC.
- Supports 10/100/1000Base-T (X) for PoE+ OUT and Data IN
- IEEE 802.3af/at compliant, supports a full 30 watt output
- Power input (24 ~ 48 VDC), inject 30 W for each port
- Provides slim size and DIN-rail/Wall mount with IP30 metal mechanism
- Supports operating temperatures from -40 to 75°C
Product Type: PoE Injector
Environmentally Friendly: Yes
Environmental Certification: RoHS
Certifications & Standards:
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3af/at
- IEEE 802.3ab
Brand Name: Advantech
Form Factor: DIN Rail/Wall Mountable
Manufacturer: Advantech Co., Ltd
Product Model: EKI-2701HPI
Product Name: EKI-2701HPI PoE Injector
Manufacturer Part Number: EKI-2701HPI-AE
Manufacturer Website Address: http://www.advantech.com
Limited Warranty: 5 Year
