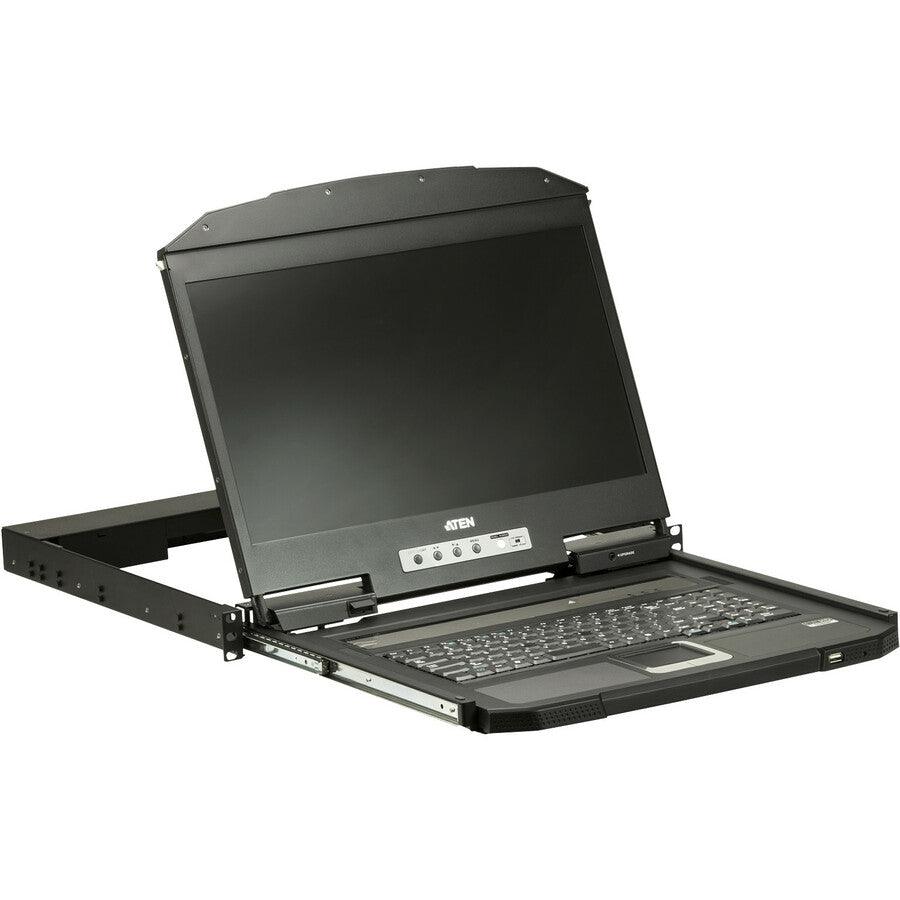

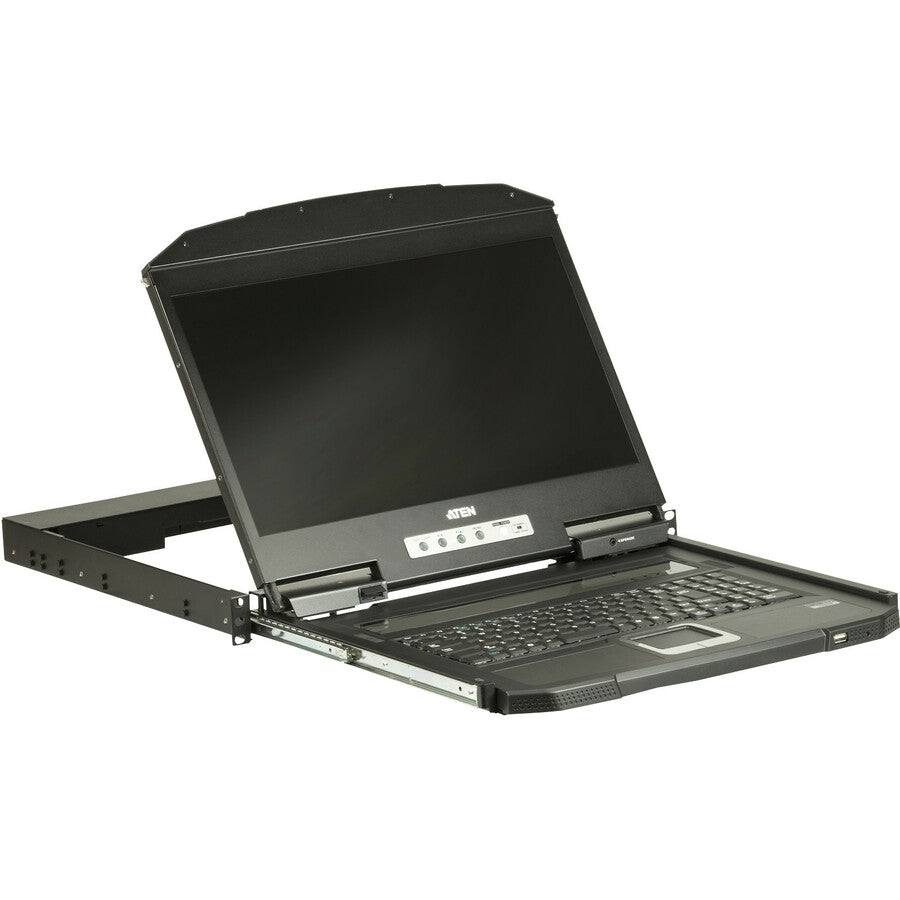

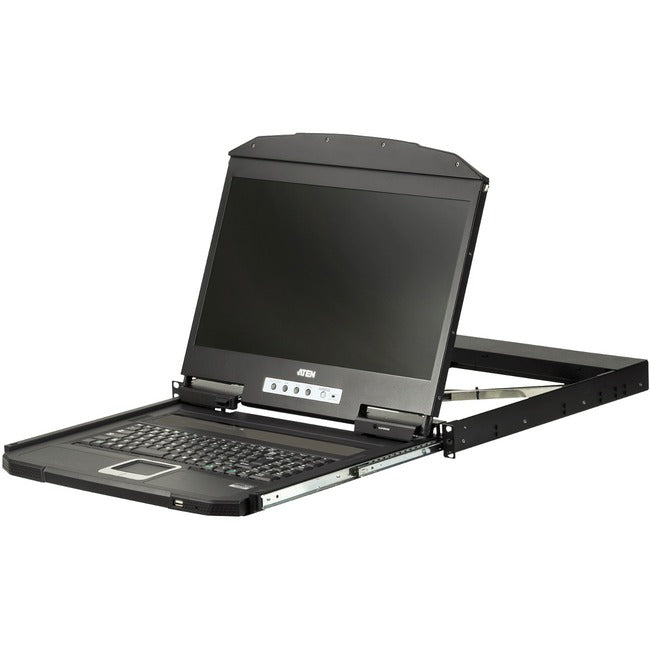

Aten 1U Ultra Short Depth Single Rail WideScreen LCD Console (USB / VGA)-TAA Compliant
The CL3100 USB VGA LCD Console is a short depth single rail LCD KVM console featuring an 18.5" LED-backlit widescreen LCD monitor with an integrated keyboard and touchpad. The short-depth design fits all 19" equipment cabinets, and is especially suitable for shallow racks. The CL3100 provides an ideal space-saving solution for special environments such as outside broadcast vans (OB vans) and compact control rooms.

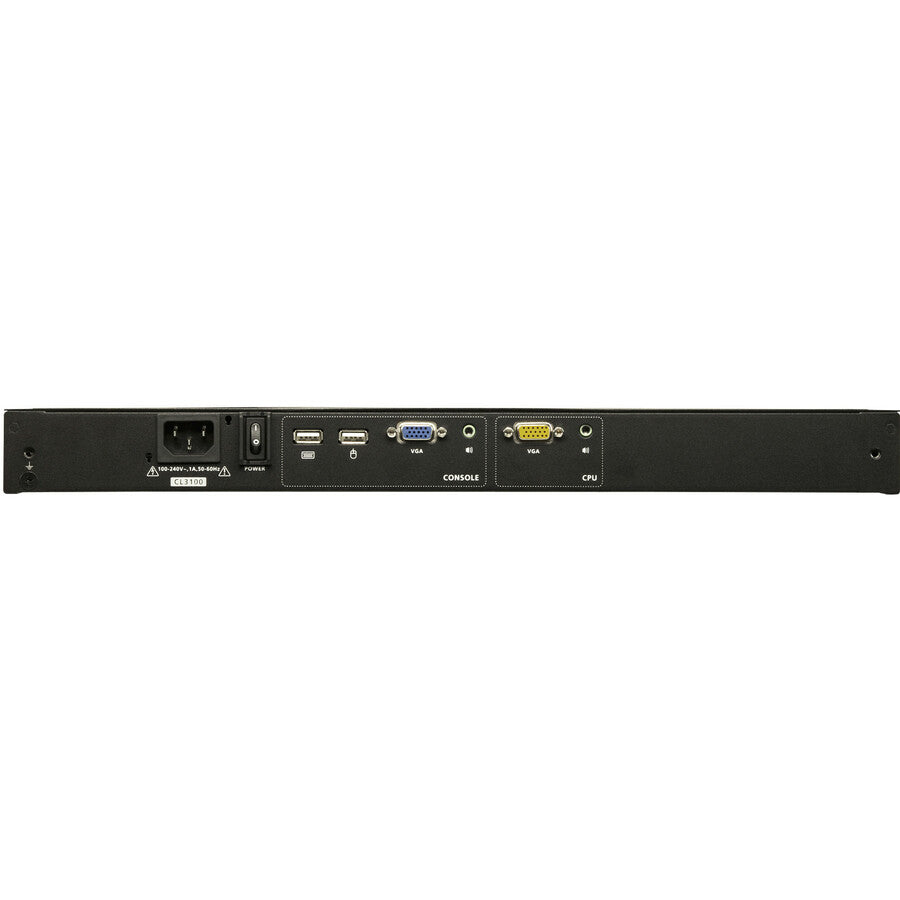

The CL3100 is a dedicated front end sliding console for compatible VGA KVM switches. For added convenience, users can choose to manage the computer from an external console. The CL3100 features a port for an external USB mouse on the unit's front panel, while ports for the second KVM console (USB keyboard/mouse and VGA monitor) are provided on the rear panel. The CL3100 also includes two mini stereo ports for connecting audio speakers.

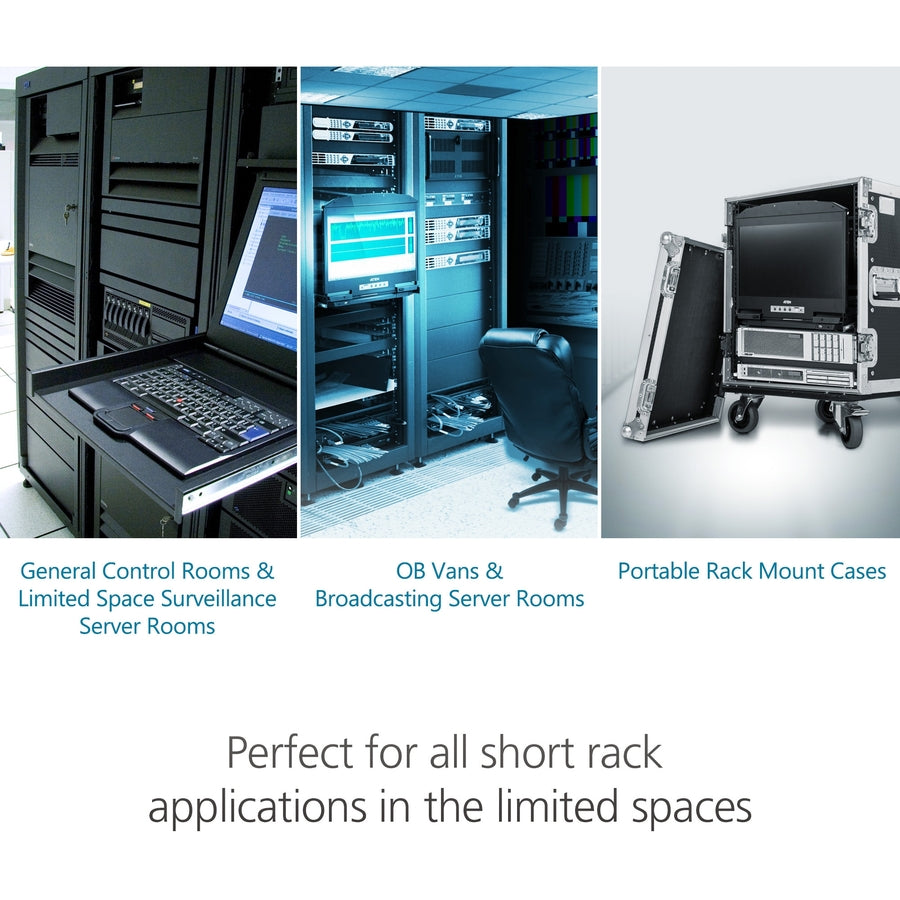

With a rich feature set, the CL3100 is designed to exceed the requirements for space utility optimization, adaptive deployment, and operational versatility, and is ideal for applications such as mobile live streaming in the broadcasting sector or control rooms with limited space in any industry.
More from the Manufacturer
- Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
- Integrated LCD KVM console with an 18.5'' LED-backlit widescreen LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack
- Short-depth design allows you to work with your rack-mounting equipment in narrow spaces
- Console lock - enables the console drawer to remain securely locked away in position when not in use

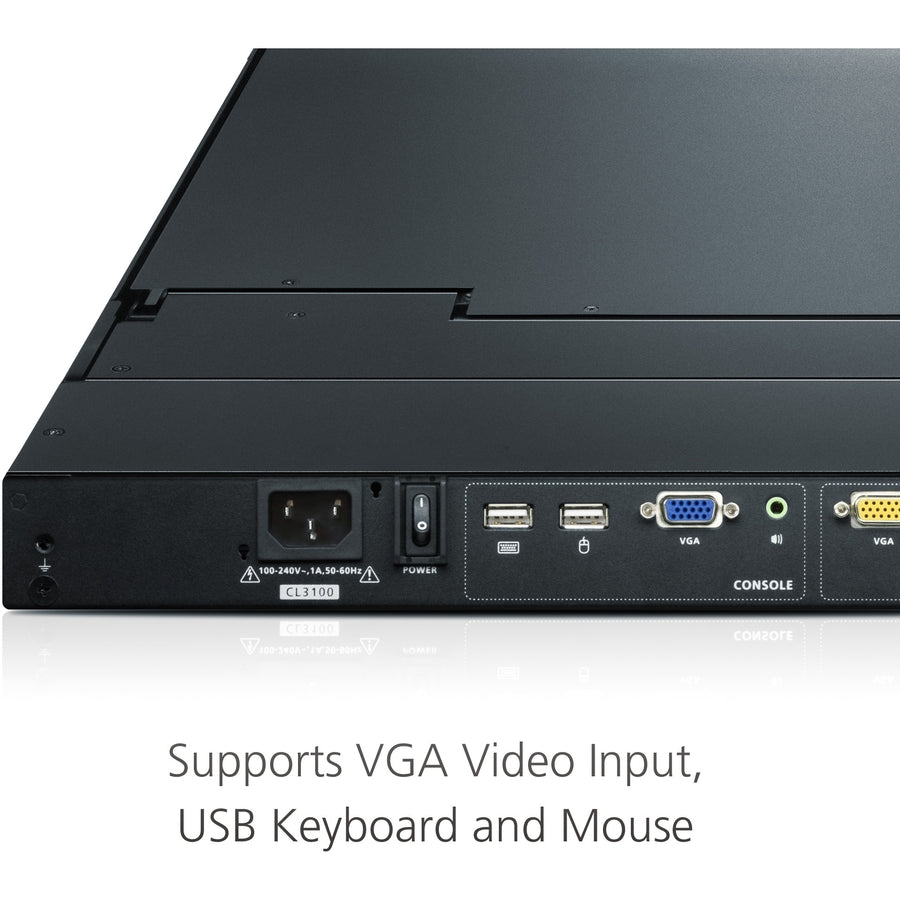

- Supports VGA video input; supports an external console with USB / VGA connectors

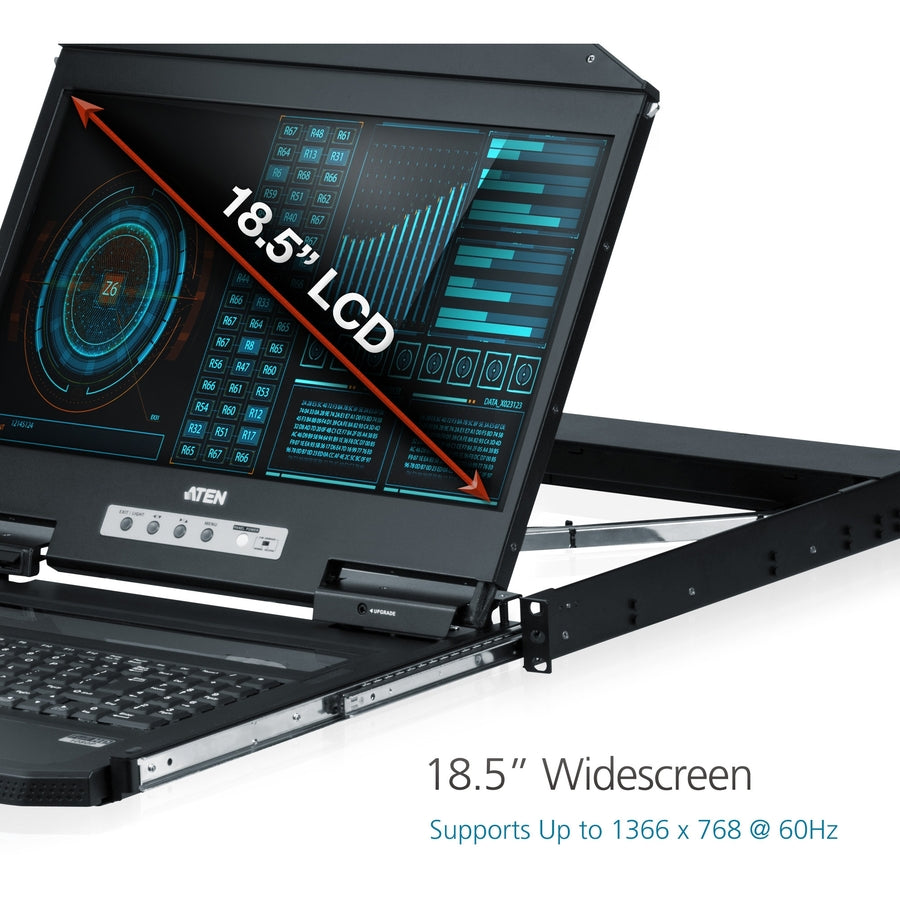

- 18.5" LCD screen with resolution of 1366 x 768 @ 60Hz
- External console supports input video resolutions up to 1920 x 1200 @ 60Hz
- Audio support for connecting speakers
- Additional hot-pluggable USB mouse port on front panel (also functions as a USB peripheral port)
- Console selection via hotkey
Product Type: LCD Rack Console
Environmentally Friendly: Yes
Environmental Certification: WEEE
Product Material: Plastic
Country Of Origin: Taiwan
Brand Name: ATEN
Manufacturer: ATEN Technology Inc
Product Model: CL3100NX
Product Name: CL3100 LCD KVM Console with Standard Rack Mount Kit
Manufacturer Part Number: CL3100NX
Manufacturer Website Address: http://www.aten.com/us/en/
Package Contents:
- CL3100 LCD KVM Console with Standard Rack Mount Kit
- 1 x USB VGA KVM Cable (VGA, USB, Audio; 1.8 m/6 ft)
- 1 x Firmware Upgrade Cable
- 1 x Power Cord
- 1 x User Instructions
Weight (Approximate): 20 lb
