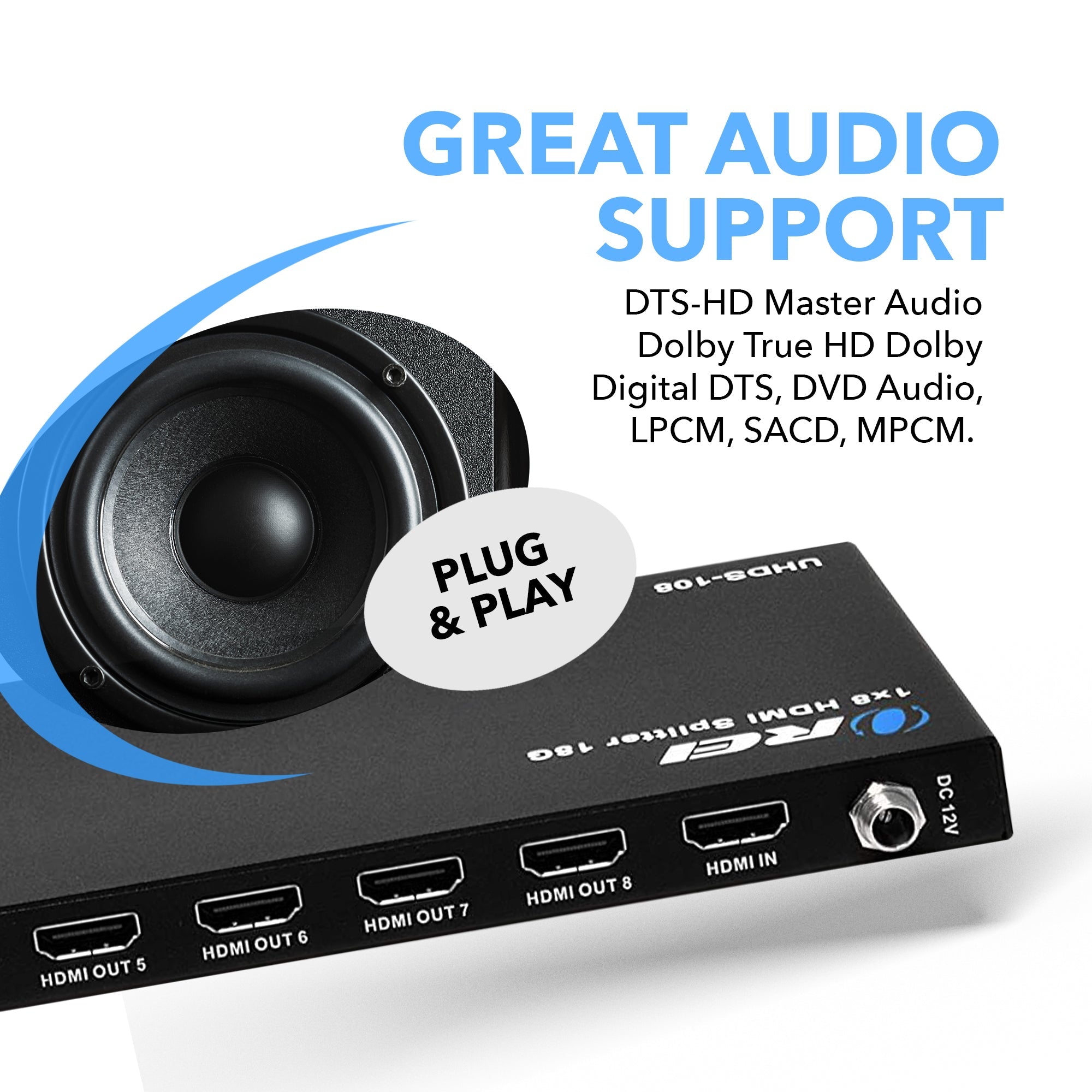

LPCM 7.1, Dolby True HD, and DTS-HD Master Audio support
EDID dip switch to toggle between 2 presets:
STD: Set the output to 1080p@60Hz
TV: Copy the EDID of the display connected to OUT1
Plug-and-play setup

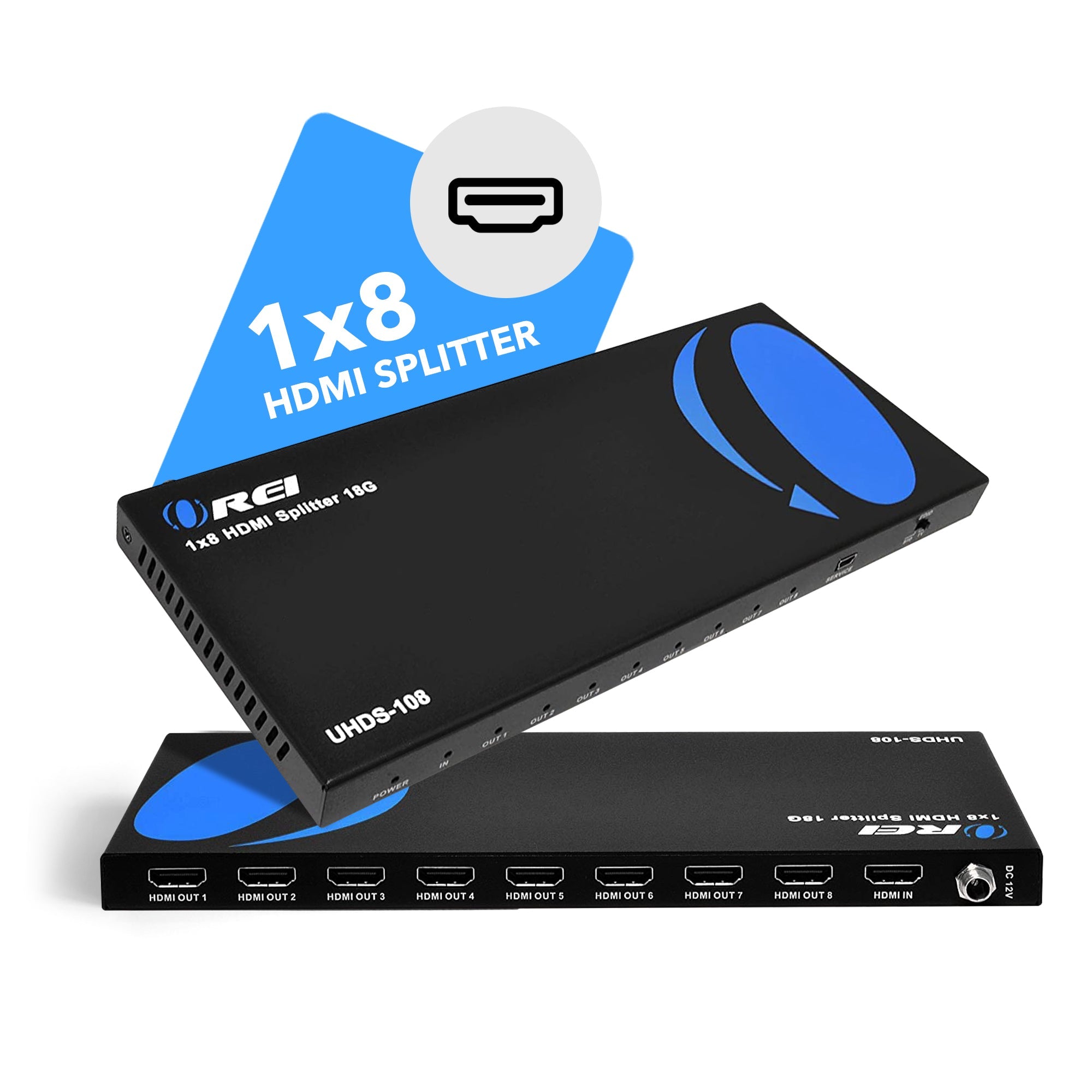

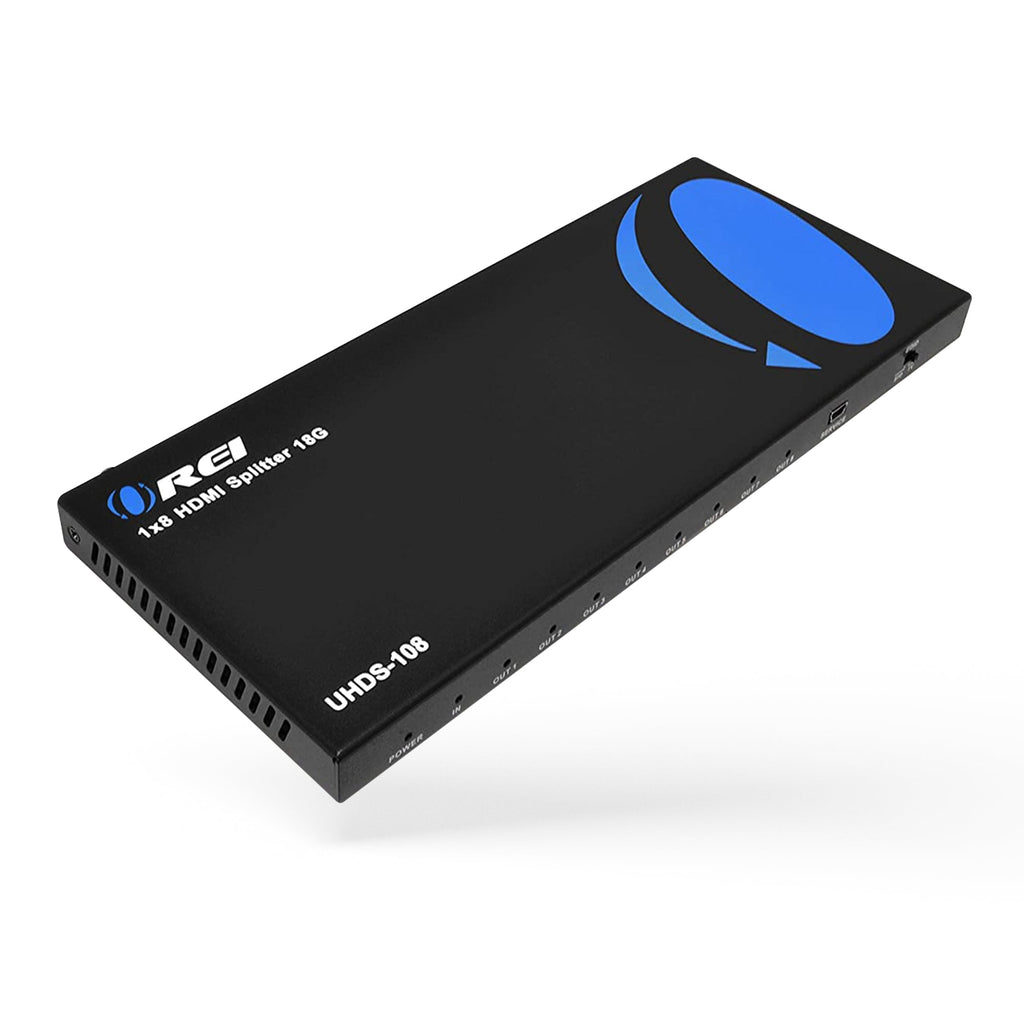

The UHDS-108 HDMI splitter can be used to display media content across 8 displays simultaneously. This splitter is HDMI 2.0b and HDCP 2.2 compliant with a video bandwidth of 18Gbps, and resolutions up to 4K@60Hz and 2K@60Hz. Features support for LPCM 7.1, Dolby TrueHD, and DTS-HD Master Audio. It features a toggle switch for EDID management. This HDMI Splitter makes it easy to mirror audio/video content from any media source to 8 displays simultaneously making it the best choice for any commercial or residential setups.
[shortdes]
1x8 4K HDMI splitter
Resolutions up to 4K@60Hz and 2K@60Hz
EDID management
[/shortdes]
[tab]
CONNECTIVITY
INPUT:
1 × HDMI [Type A, 19-pin female]
OUTPUT:
8 × HDMI [Type A, 19-pin female]
CONTROL:
1× SERVICE [Mini-USB B, Update port]
PACKAGE CONTENTS
1x UHDS-104 HDMI Splitter

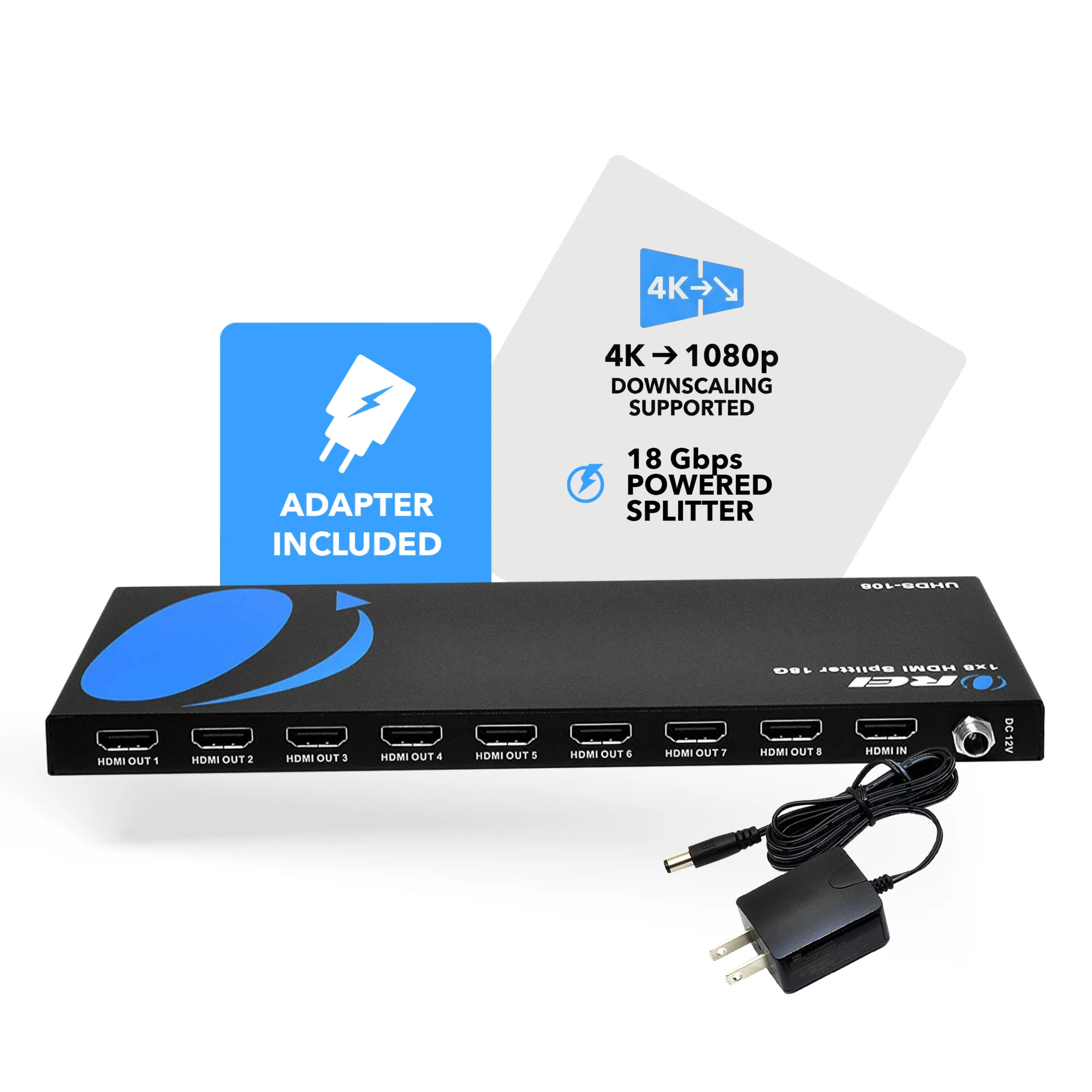

1x Power Adapter
User Manual
SUPPORTED HDMI CABLES
HDMI 2.0/2.1
We recommend using high-quality HDMI 2.0/2.1 cables under 30 feet for optimum performance
Our splitters will not work with capture cards due to the HDCP encryption on the output

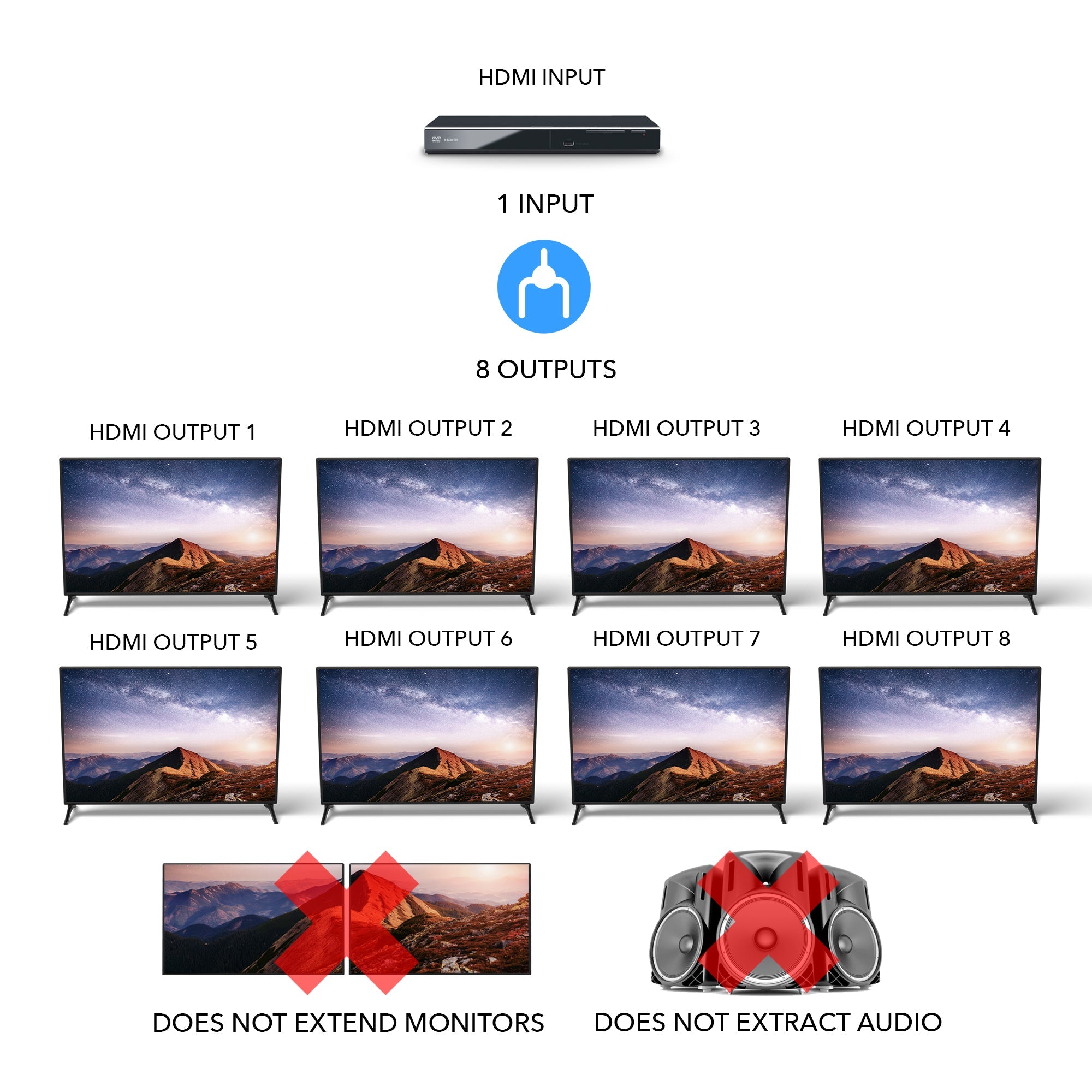

Our HDMI splitter will duplicate or "mirror" a single HDMI source on two HDMI displays. Both displays will show the same video and audio simultaneously
Our splitter does not support extend mode. It only supports mirror/duplicate screen function, each screen will show the same picture
Yes, the power adapter does support 220V
You can use standard HDMI cables up to 15 feet and high quality cables up to 30 feet.
However, you can use fiber optic active HDMI cables up to 200 feet. If its not a high quality cable then you may lose the signal in some instances.
No, the HDMI splitters do not support CEC because most customers do not want all the TV's to turn ON as soon as the source is turned ON.
The output resolution support up to 4K x 2K@30Hz,1080P@120Hz,and 1080P 3D@60Hz.
DTS-HD/Dolby-true-HD/LPCM 7.1/DTS/Dolby-AC3/DSD
It supports HDMI 1.4A
[/tab1]
General Information
UPC
850008956867
