ViewZ Broadcast VZ-185RM-P 18.5" XGA LED LCD Monitor - 16:9
3-Gbps (3G)-SDI, Automatically adapts to SMPTE and ITU digital video standards for 3G-SDI, HD-SDI, and SDI
Display the Luma(Y), Chroma(Cb/Cr) and RGB Components of the input video signal
Use JOG dial button (or the Up and Down cursor buttons) to highlight the function, display the items and change the setting value you want to change.
Decoder supports CEA-608(ANC, Line21) / 708
Display an X-Y plot of two signals, revealing the detailed relationship between two signals. On screen display of chrominance information in Cb and Cr channels. Display can be opaque or solid against the visual display
Supports Under Monitor Display function, using TSL Protocol
Support for VITC and LTC timecode display
By using the ViewZ VZ-CSP software along with relatively inexpensive colorimeter such as I-One and K-10A, you can get calibration results as close to using the actual CS-2000 hardware
- Panel Native Gamut / VZ-CSP compatible
- SDI Active Loop Through Out
- Gamma 2.2-base Calibration
- SDI to HDMI Converter
- 12bit to 8bit Dithering

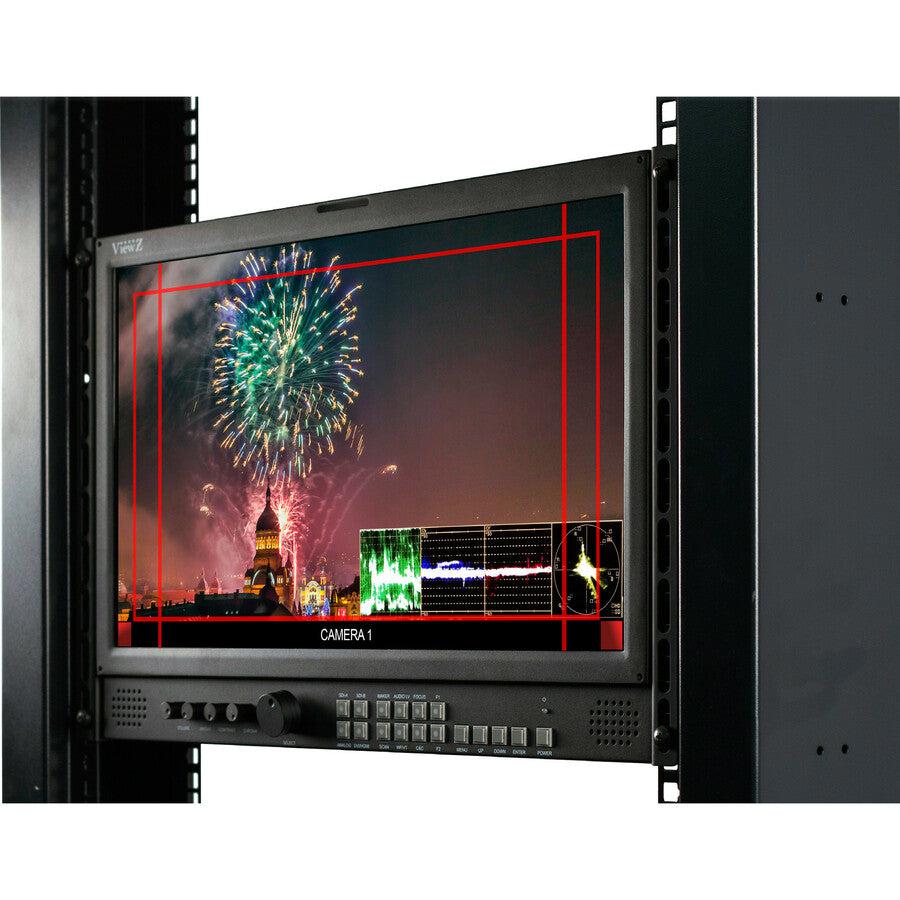

- 18.5" Rack Mount LED 3G-SDI Monitor
- 1366 x 768 Resolution
Product Type: LCD Monitor
Environmentally Friendly: Yes
Environmental Certification: RoHS
Energy Star: Yes
Country Of Origin: South Korea
Brand Name: ViewZ
Manufacturer: ViewZ
Product Model: VZ-185RM-P
Product Name: VZ-185RM-P 18.5" Video Production Rack Mount 3G-SDI Monitor
Product Line: Broadcast
Manufacturer Part Number: VZ-185RM-P
Manufacturer Website Address: http://www.viewzusa.com
Limited Warranty: 2 Year
Weight (Approximate): 15.45 lb
