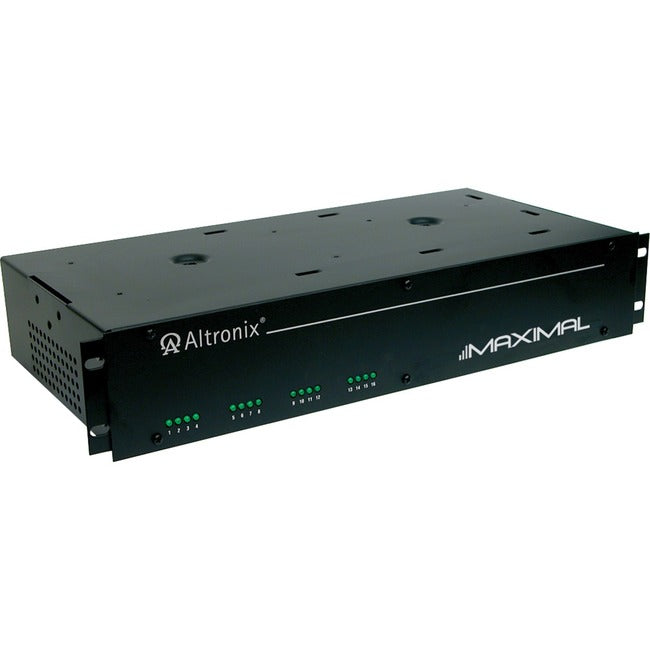

Maximal PDU
Power Supply/Charger with Access power controllers - 16 PTC outputs are selectable for 12VDC or 24VDC @ 6 amp, outputs are individually selectable for Fail-Safe or Fail-Secure operation, fire alarm disconnect is selectable by output, AC & battery monitoring, 2U EIA 19" Rack Mount Chassis, 115VAC input.
- Instantaneous transfer to stand-by batteries.
- Fire Alarm disconnect
- Built-in charger for sealed lead acid or gel type batteries.
- Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the outputs.
- Supervision: AC Fail, Low Battery
- Thermal and short circuit protection with auto reset.-
- Individually selectable Mag Lock/Strike (Fail-Safe, Fail-Secure) solid state PTC protected outputs.
- Sixteen (16) independently controlled PTC protected 12VDC and/or 24VDC outputs.
Product Type: PDU
Product Condition: New
Country Of Origin: United States
Rack Height: 2U
Brand Name: Maximal
Length: 20.3"
Manufacturer: Altronix Corporation
Product Model: MAXIMAL3RD
Product Name: PDU
Mount Type: Rack-mountable
Manufacturer Part Number: MAXIMAL3RD
Manufacturer Website Address: http://www.altronix.com
Packaged Quantity: 1
Limited Warranty: Lifetime
Weight (Approximate): 12.85 lb
