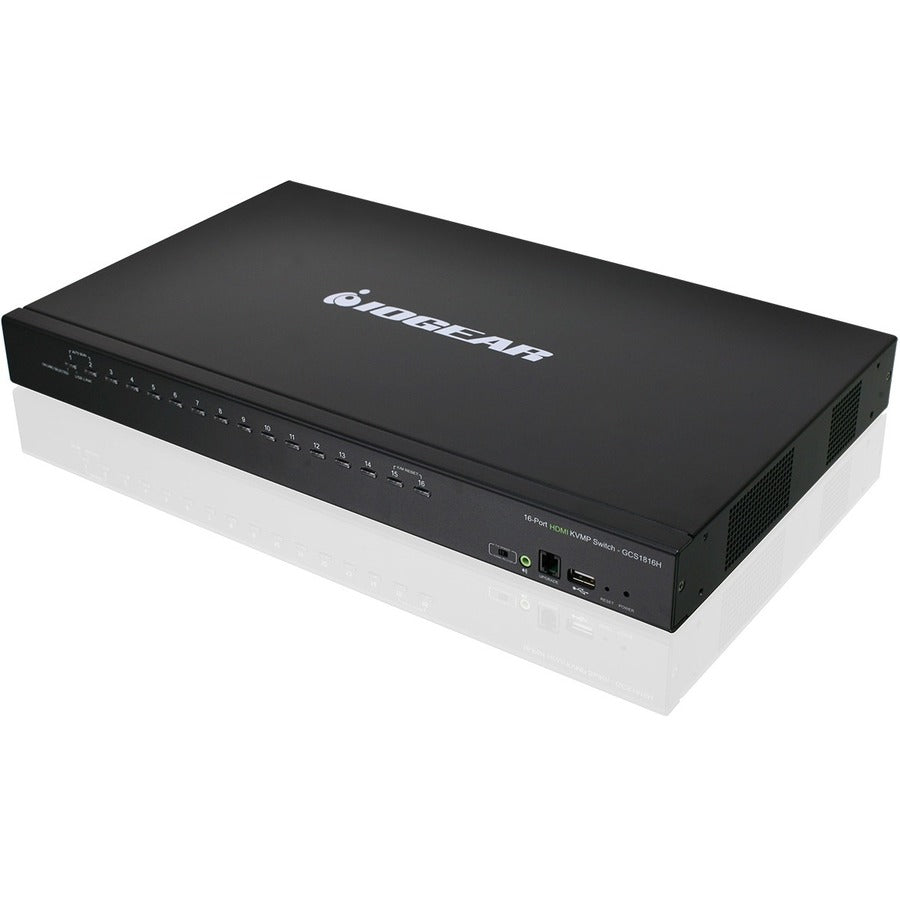

The IOGEAR 16-Port USB HDMI KVM Switch with Audio (TAA) is perfect for data center administrators, IT professionals, and government agencies that need centralized control of multiple servers and workstations with high-definition video, USB peripheral support, and audio capabilities. Our solution delivers:
-
16-port KVM connectivity that consolidates control of multiple systems from a single console
-
USB HDMI switching providing crystal-clear 4K video and seamless peripheral control
-
KVMP switch with audio enabling complete multimedia server management
-
TAA compliance meeting strict government procurement standards for secure installations
Key Features
-
16 server ports supporting simultaneous connection to multiple systems
-
4K HDMI video support at 30Hz with crystal-clear display quality
-
USB 2.0 hub functionality for keyboard, mouse, and peripheral sharing
-
Integrated audio switching with microphone and speaker support
-
Hotkey switching enabling rapid system selection via keyboard shortcuts
-
OSD menu system providing intuitive on-screen navigation
-
Rack-mountable design with 1U form factor for data center deployment
-
Auto-scan mode for monitoring multiple systems sequentially
Technical Specifications
| Manufacturer |
IOGEAR |
| Model Number |
GCS1816H |
| Type |
16-Port USB HDMI KVM Switch with Audio |
| Server Ports |
16 x USB HDMI KVM ports |

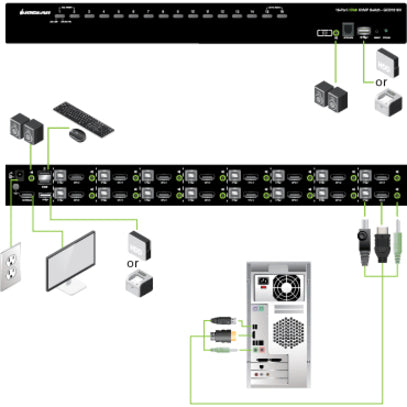

| Console Ports |
1 x USB keyboard/mouse, 1 x HDMI monitor, 1 x audio |
| Video Resolution |
Up to 4K (3840 x 2160) at 30Hz |
| Video Compatibility |
HDMI 1.4, backward compatible |
| USB Specification |
USB 2.0 compliant |
| Audio Support |
Microphone and speaker switching |
| Switching Methods |
Front panel buttons, hotkeys, OSD menu |
| Hotkey Activation |
Scroll Lock x2 or Ctrl x2 |
| Auto-Scan |
5-99 seconds user-configurable interval |
| OSD Language |
English, French, German, Italian, Japanese, Spanish |
| Keyboard Emulation |
USB keyboard and mouse |
| OS Compatibility |
Windows, Mac, Linux, Sun, Unix |
| EDID Support |
DDC2B compliant for optimal resolution detection |
| Flash Upgradable |
Firmware upgradeable via USB |
| Power Consumption |
12W maximum |
| Power Supply |
External 12V DC adapter |
| Operating Temperature |
0°C to 50°C (32°F to 122°F) |
| Storage Temperature |
-20°C to 60°C (-4°F to 140°F) |
| Humidity |
0% to 80% non-condensing |
| Dimensions |
17.3" x 8.7" x 1.73" (440 x 221 x 44 mm) |
| Weight |
4.4 lbs (2 kg) |
| Mounting |
1U rack-mount, desktop placement |
| MTBF |
50,000 hours at 25°C |
| Compliance |
TAA, FCC, CE, RoHS |
| Standards |
USB 2.0, HDMI 1.4, DDC2B |
| Warranty |
3-year manufacturer warranty |
| Compatible Systems |
Data centers, server rooms, government facilities, broadcast studios, security control rooms |
Frequently Asked Questions
Q: What advantages does a 16-port configuration provide for server management?
The 16-port KVM switch enables centralized control of up to 16 servers from a single keyboard, monitor, and mouse setup, dramatically reducing space requirements and equipment costs. This 16-port capacity is ideal for medium to large server rooms, providing efficient management of entire server racks while minimizing the need for multiple consoles and reducing cable complexity.
Q: How does USB HDMI connectivity enhance video quality and peripheral support?
USB HDMI switching delivers crystal-clear 4K video at 30Hz with full HDCP compliance, ensuring high-definition display quality for detailed server monitoring and troubleshooting. The USB 2.0 hub functionality supports keyboard, mouse, and other USB peripherals with transparent switching, while EDID support automatically optimizes resolution settings for connected displays.
Q: What multimedia capabilities does the KVMP switch provide?
The KVMP switch with audio includes integrated microphone and speaker switching, enabling complete multimedia server management for applications requiring audio feedback such as diagnostic alerts, video conferencing servers, or multimedia content servers. This comprehensive approach eliminates the need for separate audio switching equipment in server environments.
Q: How does TAA compliance benefit government and enterprise deployments?
TAA compliance ensures the switch meets Trade Agreements Act requirements for government procurement, making it eligible for federal, state, and local government purchases. This certification demonstrates adherence to strict security and manufacturing standards, providing confidence for sensitive installations including defense, healthcare, and critical infrastructure environments.
Q: What switching methods optimize workflow efficiency?
Multiple switching options include front panel push buttons, customizable hotkey combinations (Scroll Lock x2 or Ctrl x2), and intuitive OSD menu navigation. The auto-scan feature monitors all connected systems with user-configurable intervals from 5-99 seconds, enabling proactive monitoring of server status across the entire infrastructure.
Q: How does the rack-mount design benefit data center installations?
The compact 1U rack-mount form factor maximizes space efficiency in server racks while providing professional cable management and secure mounting. The rugged design withstands data center environments with operating temperatures up to 50°C, while the 50,000-hour MTBF ensures reliable long-term operation in mission-critical deployments.
Q: What operating systems and platforms are supported?
The switch provides broad compatibility with Windows, Mac, Linux, Sun, and Unix systems through transparent USB keyboard and mouse emulation. Multi-language OSD support includes English, French, German, Italian, Japanese, and Spanish, making it suitable for global deployments and diverse IT environments.
IOGEAR 16-Port USB HDMI KVM Switch with Audio (TAA) providing centralized server control with 4K video, audio switching, and government compliance.
