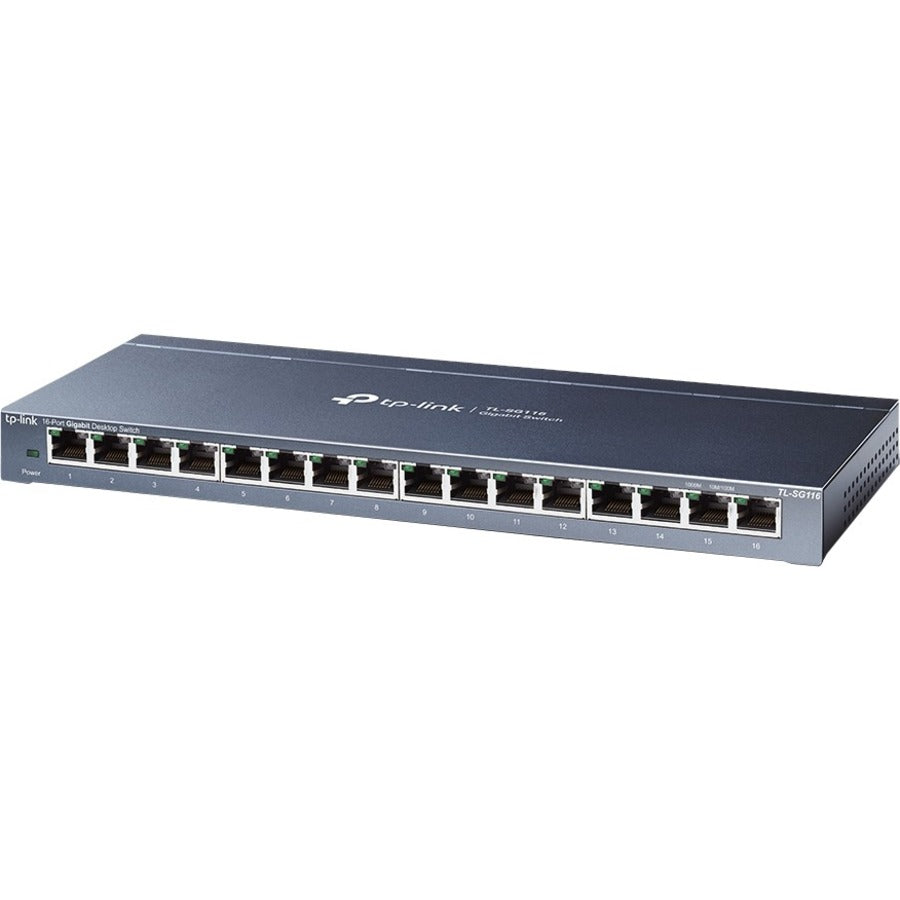

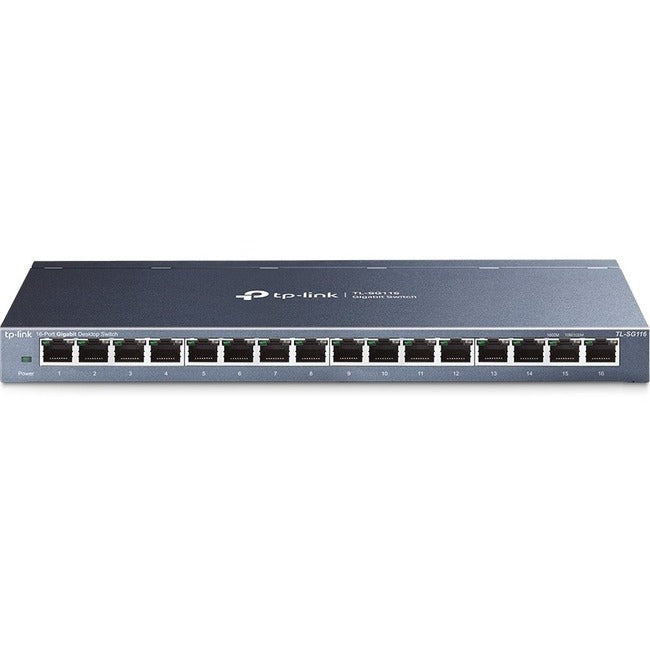

The TP-Link TL-SG116 16-Port Gigabit Desktop Switch is perfect for small businesses, home offices, and workgroups that need reliable gigabit ethernet connectivity with energy-efficient green technology. Our solution delivers:
-
16 port gigabit switch that provides high-speed network expansion for multiple devices
-
Desktop switch format offering compact design for office environments
-
Green ethernet technology reducing power consumption by up to 50%
-
Plug and play setup requiring no configuration or technical expertise
Key Features
-
16 gigabit ethernet ports supporting 10/100/1000 Mbps auto-negotiation
-
Energy-efficient design with power consumption optimization
-
Auto MDI/MDIX support eliminating the need for crossover cables
-
Store-and-forward switching ensuring optimal performance and data integrity
-
LED indicators providing clear port status and activity monitoring
-
Fanless design ensuring silent operation in office environments
-
Metal housing providing durability and effective heat dissipation
-
Desktop mounting with space-saving form factor
Technical Specifications
| Manufacturer |
TP-Link |
| Model Number |
TL-SG116 |
| Type |
16-Port Gigabit Desktop Switch |
| Port Configuration |
16 x 10/100/1000BASE-T RJ45 ports |
| Auto-Negotiation |
10/100/1000 Mbps auto-sensing |
| Auto MDI/MDIX |
All ports support auto-crossover |
| Switching Capacity |
32 Gbps |
| Forwarding Rate |
23.8 Mpps |
| MAC Address Table |
8,000 entries |
| Buffer Memory |
4.1 MB |
| Jumbo Frame Support |
Up to 15KB |
| Flow Control |
IEEE 802.3x flow control |
| Green Technology |
IEEE 802.3az Energy Efficient Ethernet |
| Power Consumption |
8.8W maximum, 50% power saving mode |
| LED Indicators |
Power, Link/Activity per port |
| Power Supply |
External 12V/1A power adapter |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Storage Temperature |
-40°C to 70°C (-40°F to 158°F) |
| Humidity |
10% to 90% non-condensing |
| Dimensions |
11.0" x 7.2" x 1.0" (280 x 180 x 26 mm) |
| Weight |
1.9 lbs (0.87 kg) |
| Mounting |
Desktop placement |
| MTBF |
1,730,000 hours at 25°C |
| Compliance |
FCC, CE, RoHS |
| Standards |
IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3az |
| Warranty |
3-year limited warranty |
| Compatible Systems |
Small business networks, home offices, workgroups, SOHO environments |
Frequently Asked Questions
Q: How does the gigabit ethernet performance benefit small business networks?
A: The TP-Link TL-SG116 gigabit ethernet switch provides 1000 Mbps speeds on all 16 ports with 32 Gbps switching capacity, enabling high-speed file transfers, video streaming, and cloud application access. This gigabit performance eliminates network bottlenecks common in 100 Mbps environments, improving productivity for bandwidth-intensive business applications.
Q: What makes this desktop switch format ideal for office environments?
A: The compact desktop switch design measures only 11" x 7.2" x 1" and features fanless operation for silent performance. The metal housing provides durability while the space-saving form factor fits easily on desks, shelves, or in small wiring closets. This makes it perfect for small business offices where space and noise are considerations.
Q: How does the green ethernet technology reduce power consumption?
A: The green ethernet technology incorporates IEEE 802.3az Energy Efficient Ethernet standards, automatically adjusting power consumption based on cable length and link utilization. This results in up to 50% power savings compared to conventional switches, reducing operational costs and environmental impact while maintaining full gigabit performance.
Q: What does plug and play setup mean for network deployment?
A: Plug and play functionality means the switch requires zero configuration - simply connect power and network cables to begin operation immediately. Auto-negotiation handles speed selection, auto MDI/MDIX eliminates crossover cable requirements, and the switch automatically learns device locations, making it ideal for users without networking expertise.
Q: How power efficient is this switch for continuous operation?
A: With maximum power consumption of only 8.8W and intelligent power management features, this switch is extremely efficient for 24/7 operation. The green technology dynamically adjusts power usage, while the fanless design eliminates moving parts that consume additional energy, resulting in low operating costs and extended hardware lifespan.

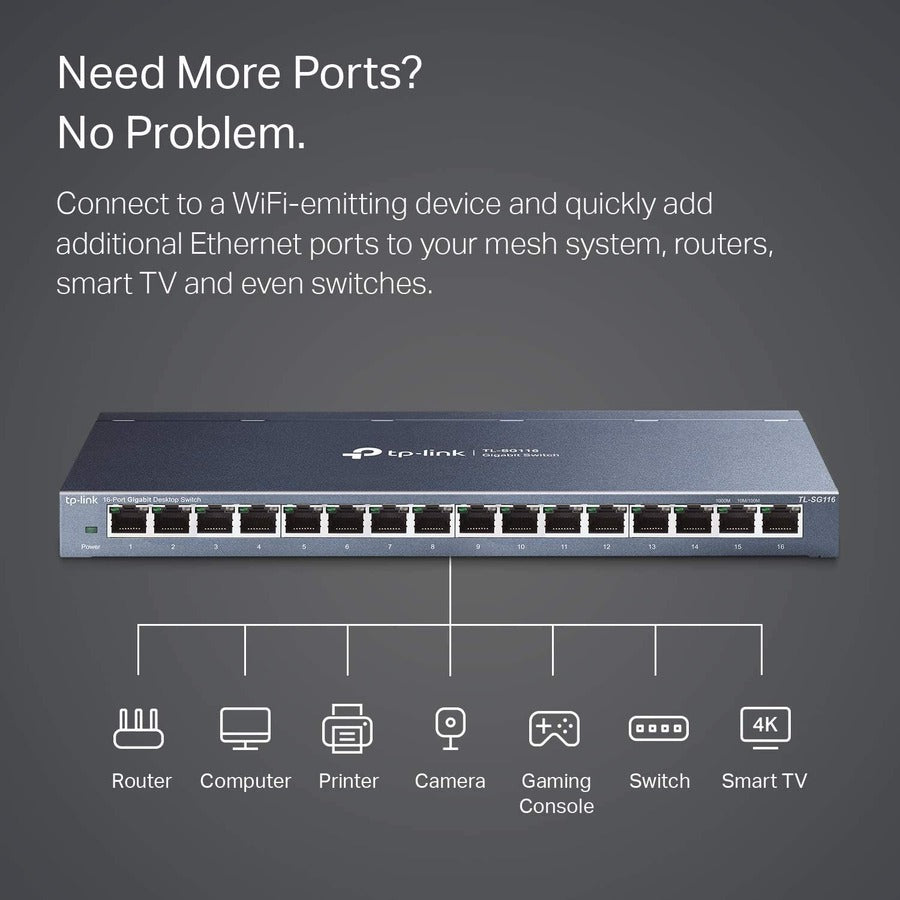

Q: What network applications benefit most from this 16-port configuration?
A: The 16 port configuration is ideal for small business LANs, home offices with multiple devices, workgroup networks, and SOHO environments. It perfectly supports IP phones, wireless access points, computers, printers, NAS devices, and security cameras while providing room for network growth without requiring immediate expansion.
Q: How does the unmanaged design simplify network maintenance?
A: As an unmanaged switch, the TL-SG116 requires no software configuration, firmware updates, or ongoing maintenance tasks. The store-and-forward switching architecture automatically handles data forwarding, while LED indicators provide instant visual status feedback, making network troubleshooting straightforward for non-technical users.
TP-Link TL-SG116 16-Port Gigabit Desktop Switch featuring green ethernet technology, plug and play setup, and power efficient design for small business networks.
