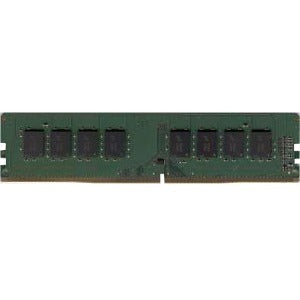

Dataram 16GB DDR4 SDRAM Memory Module
DTI24U2T8W/16G is an Unbuffered 2Gx64 memory module, which conforms to JEDEC's DDR4-2400, PC4-2400 standard. The assembly is Dual-Rank. Each rank is comprised of eight 1Gbx8 DDR4-2400 Industrial temp SDRAMs.
One EEPROM is used for Serial Presence Detect.
Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology.
A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C.
- DIMM 16 GB capacity is enough to execute all memory hungry programs simultaneously
- 288-pin-pin DDR4 SDRAM operates at an effective bus speed with minimal power consumption and as a result, you get optimal computer performance with an improved memory heat dissipation
- No matter how heavy and numerous the applications that you are using, 2400 MHz memory speed with Unbuffered signal will run them smoothly
Product Type: RAM Module
Environmentally Friendly: Yes
Environmental Certification: RoHS
Brand Name: Dataram
Form Factor: DIMM
Length: 5.3"
Manufacturer: Dataram Corporation
Product Name: 16GB DDR4 SDRAM Memory Module
Manufacturer Part Number: DTI24U2T8W/16G
Manufacturer Website Address: http://www.dataram.com
Number Of Pins: 288-pin
