Name: 16" X 16" X 6" Nema 3 Enclosure With Fan Al161606N3-Ft
Brand: ArmorLogix
SKU: AL161606N3-FT
Price: 1879.00 CAD
Availability: InStock

16" X 16" X 6" Nema 3 Enclosure With Fan Al161606N3-Ft

Roll over image to zoom in Click on image to zoom

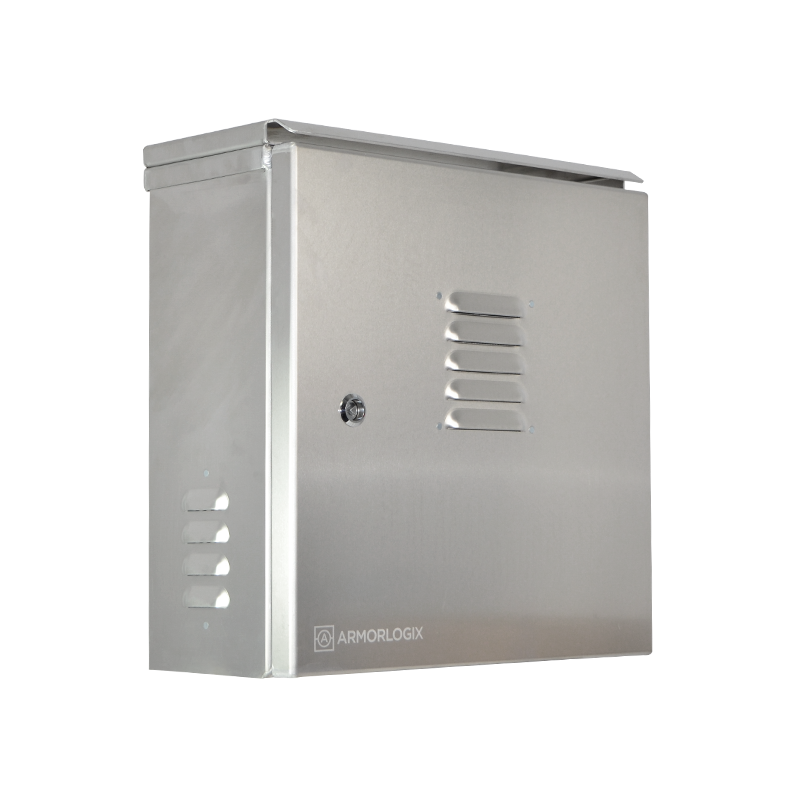

16″ X 16″ X 6″ NEMA 3 ENCLOSURE WITH FAN AL161606N3-FT

Constructed For Indoor & Outdoor Application
Durable 1/8” 5052 Aluminum Construction
Weathertight 1/4″ Rubber Door Seals
Built-in Sunshade
Screened Vents On Sides & Door

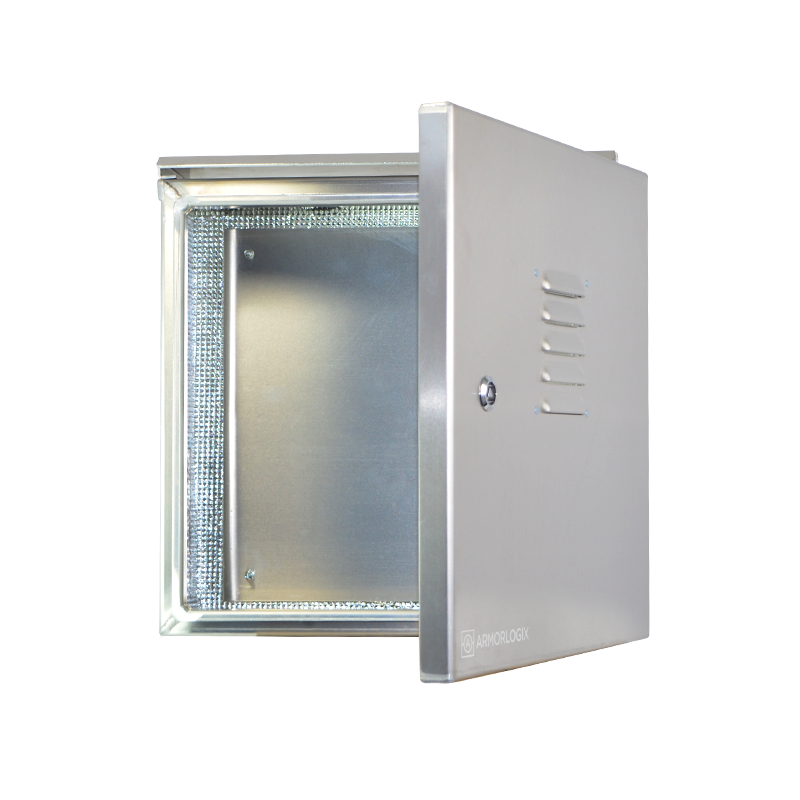

Adjustable / Removable Equipment Mounting Plate
Security Lock with Key

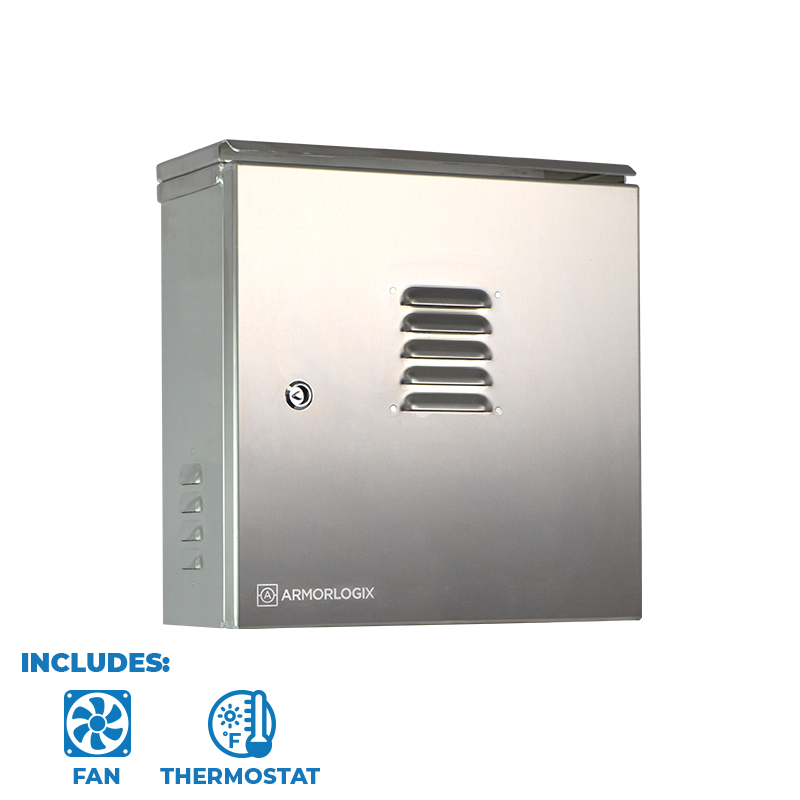

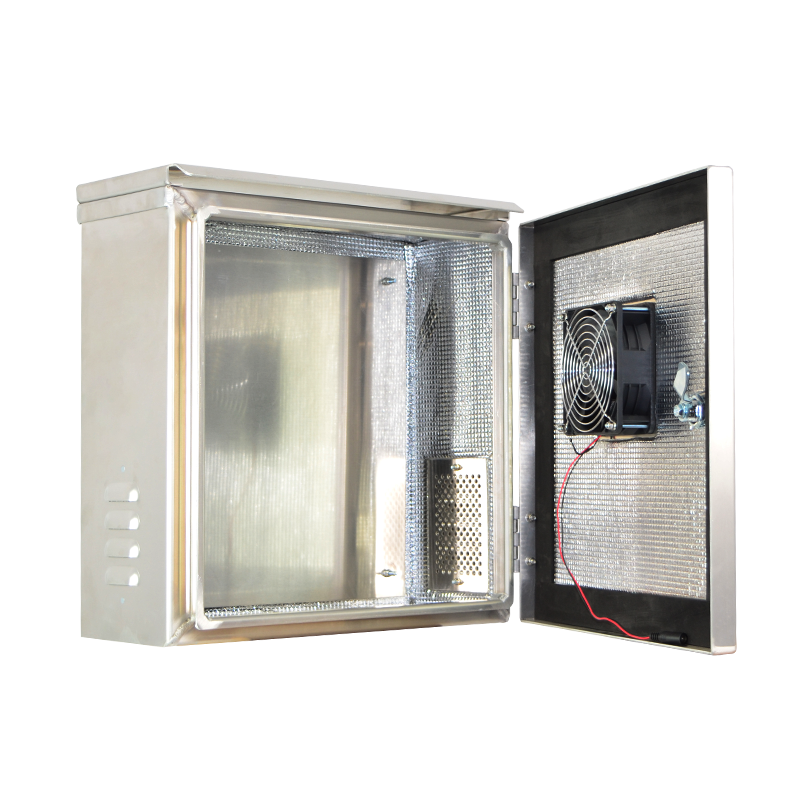

Includes installed thermostatic fan
A pair of Wall / Pole Enclosure Mount Plates are included

OVERVIEW

16″ x 16″ x 6″ NEMA 3 weatherproof enclosure is manufactured from 5052 Aluminum. This construction resists rusting and corrosion making it ideal for use for marine applications as well as other rugged environments. Each enclosure includes a sunshade, airflow vents with screens, insulation, triangular cam lock, and universal mounting brackets. These brackets allow for installers to mount the enclosure directly to a wall (flush mount), or mount to a pole using banding brackets (optional accessory). A removable back-plate allows for items to be installed vertically and assembled outside of the enclosure. This model includes a thermostat/fan combination for temperature control.

Applications: The AL161606N3-FT enclosure is commonly installed at gate entries, in manufacturing facilities, data centers, airports, municipal areas, and more.

SPECIFICATIONS

Material		1/8" 5052 Aluminum
NEMA Rating		3
Mounting Brackets		Universal Wall / Pole Brackets - Bands not included (x2)
Door Seals		1/4" Weather Tight Neoprene
Equipment Mounting Plate		1x (13" x 14")
Security Lock		Yes (2x keys included)
Dimensions: External		16” W x 16.875” H x 7.5” D
Dimensions: Internal Max		15.625” W x 15.625” H x 6.875” D
Dimensions: Internal Min		15.625” W x 15.625” H x 3.5” D
Weight		21 lbs.

RESOURCES

PDF Spec Sheet – Download

General Information

Canada: Prices in CAD. Ships nationwide in 2–5 business days. GST/HST/PST calculated at checkout. Shipping policy.
