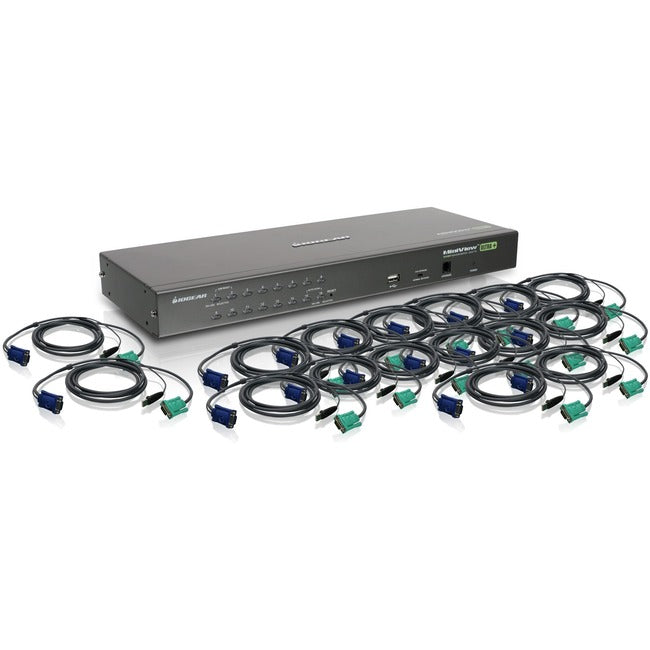

16 Port Kvm Switch With 16 Usb Cables

IOGEAR GCS1716KITU KVM Switch

The GCS1716KITU KVM is a combo switch with USB KVM cables included; allowing access and control of up to 16 directly connected computers from a single console (keyboard, mouse, and monitor). As many as 16 additional switches can be cascaded bringing the total number of connected computers to 256 computers that can be controlled from a single keyboard-monitor-mouse console. A custom ASIC (patent pending) provides an auto-sensing function that recognizes the position of each station on the installation, eliminating the need to manually set the position with DIP switches. Additionally, the GCS1716 features high density SPHD 15-pin instead of the usual 25-pin connectors thus allowing for a compact design and installation in a 1U system rack.

More from the Manufacturer

• Rack mountable in a 19" (1U) system rack


• ** Front USB Port - Fully compliant with USB 1.1 for system upgrades and shared peripherals


• Supports both USB and PS/2, VGA computers


• Maximum video resolution: up to 2048 x 1536


• Security - 2 level password protection for OSD


• *Cascade up to 2 levels - control up to 256 computers from a single console


• Easy to operate - computer selection via front panel LED's, intuitive OSD (on screen display), and hotkeys


• Auto Scan Mode to monitor connected computers


• Broadcast Mode to send commands to all connected computers


• Multi platform OS support - Windows®, Mac, Sun Solaris™ , and Linux®

Product Type: KVM Switchbox
Environmentally Friendly: Yes
Environmental Certification: WEEE
Rack Height: 1U
Brand Name: IOGEAR
Form Factor: Rack-mountable
Manufacturer: IOGEAR, Inc
Product Model: GCS1716KITU
Product Name: GCS1716KITU KVM Switch
Manufacturer Part Number: GCS1716KITU
Manufacturer Website Address: http://www.iogear.com
Package Contents:

• GCS1716KITU KVM Switch


• 1 x 2m USB KVM Cable


• 1 x 2m PS/2 KVM Cable


• 16 x 3m USB KVM Cable


• 1 x Console Cable


• 1 x Cascade Cable


• 1 x Firmware Upgrade Cable


• 1 x Grounding Wire


• 1 x Foot Pad Set


• 1 x Power Adapter


• 1 x Installation Guide


• 1 x Warranty Card


• 1 x Standard Rack Mounting Kit
