Name: 15" X 10" X 22" Nema 3 Enclosure Al151022N3
Brand: ArmorLogix
SKU: AL151022N3
Price: 1283.00 CAD
Availability: InStock

15" X 10" X 22" Nema 3 Enclosure Al151022N3

Roll over image to zoom in Click on image to zoom

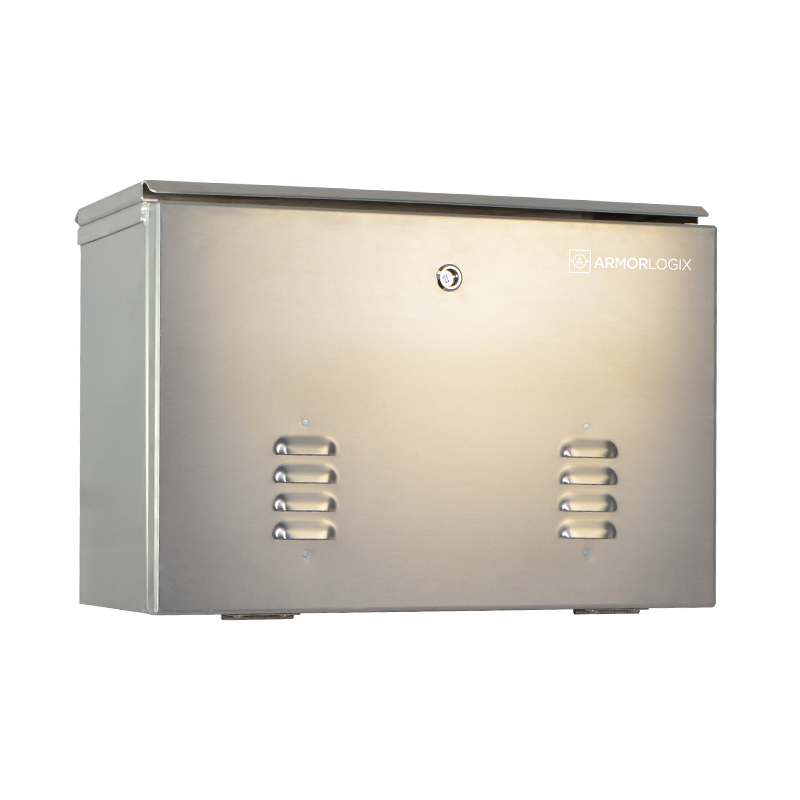

15″ X 10″ X 22″ NEMA 3 ENCLOSURE AL151022N3

Constructed For Indoor & Outdoor Applications
Durable 1/8” 5052 Aluminum Construction
Weathertight 1/4″ Rubber Door Seals

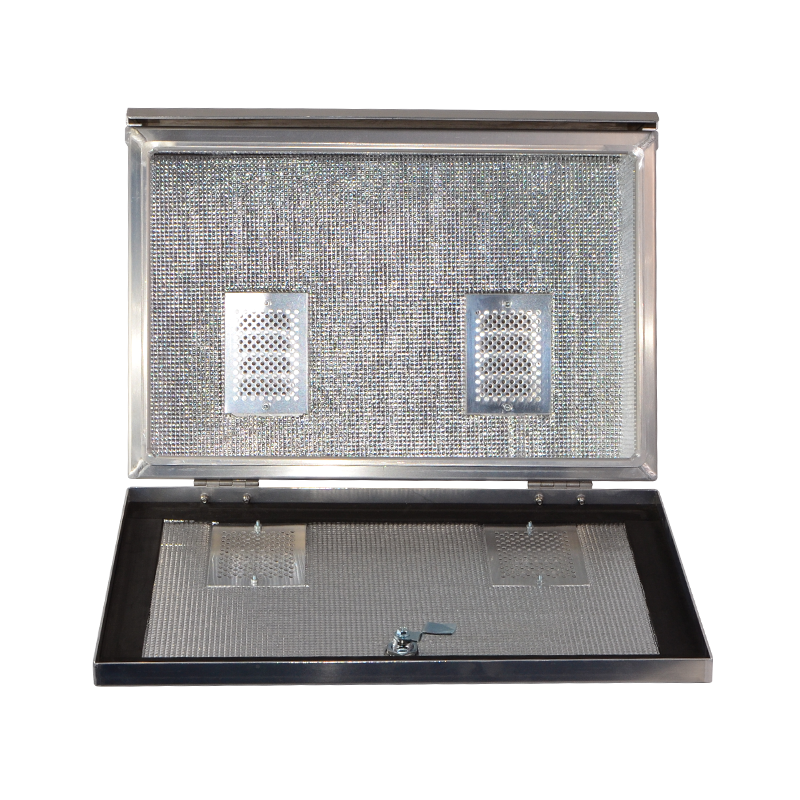

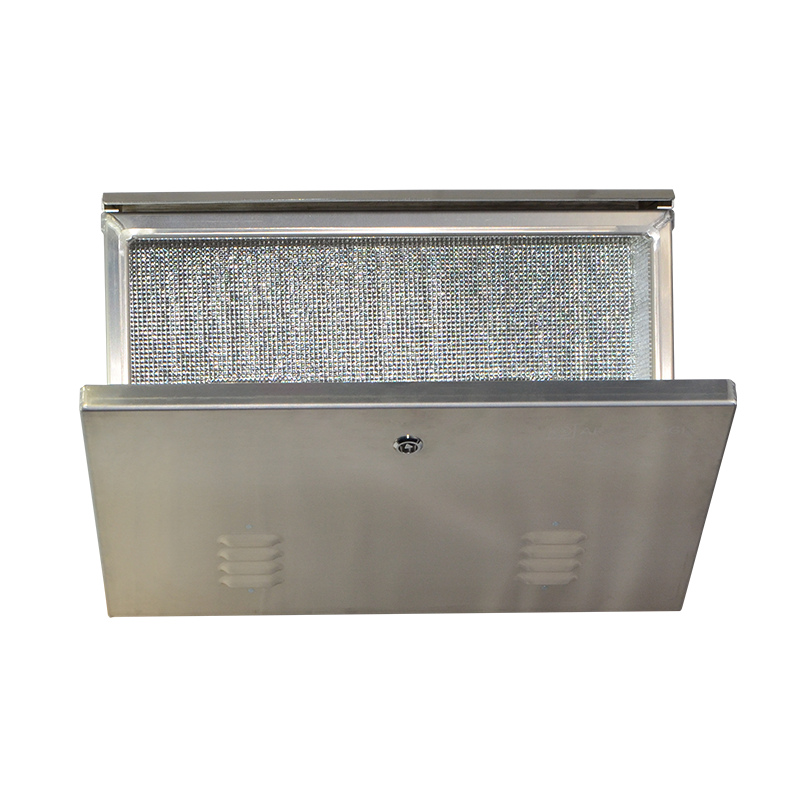

Screened Vents On Door & Back
Security Lock with Key
Optional temperature-controlled heaters available

OVERVIEW

15″ x 10″ x 22″ NEMA 3 weatherproof enclosure is manufactured from 5052 Aluminum. This construction resists rusting and corrosion making it ideal for use for marine applications as well as other rugged environments. Each enclosure includes a sunshade, airflow vents with screens, insulation, and triangular cam lock. Temperature control available with an optional thermostatic fan, heater, or both depending on your needs.

Applications: The AL151022N3 is commonly found at railway crossings, oil and mining operation centers, public utility centers, industrial manufacturing facilities, and more.

SPECIFICATIONS

Material		1/8" 5052 Aluminum
NEMA Rating		3
Mounting Brackets		N/A
Door Seals		1/4" Weather Tight Neoprene
Security Lock		Yes (2x keys included)
Dimensions: External		22.125” W x 15.5625” H x 11.875” D
Dimensions: Internal		21.75” W x 14.25” H x 10.75” D
Weight		22 lbs

RESOURCES

PDF Spec Sheet – Download
