Name: 13" X 22" X 13" Nema 4 Enclosure Al132213N4
Brand: ArmorLogix
SKU: AL132213N4
Price: 1201.20 USD
Availability: InStock

13" X 22" X 13" Nema 4 Enclosure Al132213N4

Roll over image to zoom in Click on image to zoom

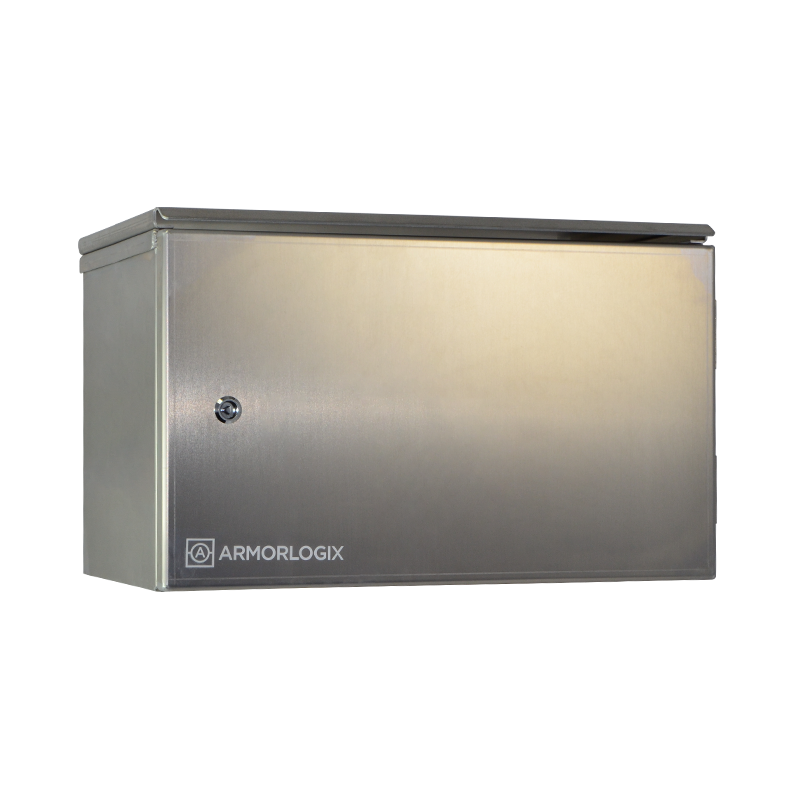

13″ X 22″ X 13″ NEMA 4 ENCLOSURE AL132213N4

Constructed For Indoor & Outdoor Application
Durable 1/8” 5052 Aluminum Construction
Weathertight 1/4″ Rubber Door Seals
Built-in Sunshade
Adjustable / Removable 25″ × 19″ Equipment Mounting Plate
Security Lock with Key
A pair of Wall / Pole Enclosure Mount Plates are included

OVERVIEW

13″ x 22″ x 13″ NEMA 4 weatherproof enclosure is manufactured from 5052 Aluminum. This construction resists rusting and corrosion making it ideal for use for marine applications as well as other rugged environments. Each enclosure includes a sunshade, insulation, triangular cam lock, and universal mounting brackets. These brackets allow for installers to mount the enclosure directly to a wall (flush mount), or mount to a pole using banding brackets (optional accessory). A removable back-plate allows for items to be installed vertically and assembled outside of the enclosure. Temperature control available with a heater.

SPECIFICATIONS

Material		1/8" 5052 Aluminum
NEMA Rating		4
Mounting Brackets		2x Universal Wall / Pole Brackets - Bands not included
Door Seals		1/4" Weather Tight Neoprene
Equipment Mounting Plate		1x (19" x 11")
Security Lock		Yes (2x keys included)
Dimensions: External		22.1875” W x 13.875” H x 14.125” D
Dimensions: Internal Max		21.8125” W x 12.75” H x 13.5” D
Dimensions: Internal Min		21.8125” W x 12.75” H x 11.75” D
Weight		33 lbs.

RESOURCES

PDF Spec Sheet – Download
