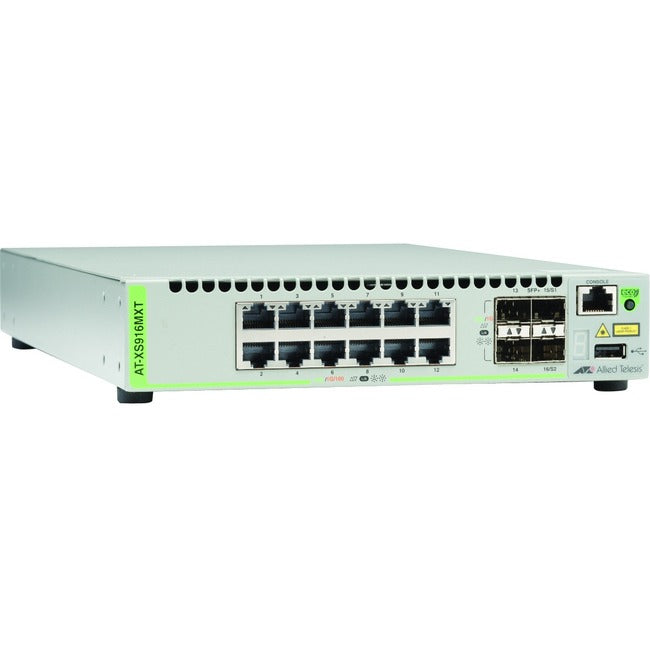

Allied Telesis 12-Port 100/1000/10G Base-T (RJ-45) Stackable Switch with 4 SFP/SFP+Slot
The AT-XS916MXT and AT-XS916MXS switches offer cost effective, high-speed 10G connectivity for servers and storage, and support 100/1000 connections for existing networks. The XS900MX Series enable a highly flexible and reliable network, which can easily scale to meet increasing traffic demands.
Overview
The XS900MX Series are the ideal 10G access switches for enterprise networks or anywhere a relay switch with 10G uplink is required. Theswitches also make the ideal core or aggregation switch, to connect servers and storage in a small network.
The AT-XS916MXT features 12 x 100/1000/10GBASE-T and 4 x SFP+ slots. The AT-XS916MXS features 4 x 100/1000/10GBASE-T and 12 x SFP+ slots.
Easy management
The XS900MX Series switches feature Allied Telesis Management FrameworkTM (AMF), a sophisticated suite of management tools that provides a simplified approach to network management.
Common tasks are automated or made so simple that the everyday running of a network can be achieved without the need for highly trained, and expensive, network engineers.Powerful features like centralized management, auto-backup, auto-upgrade, auto- provisioning and auto-recovery enable plug-and-play networking and zero-touch management.
Resiliency
Ethernet Protection Switching Ring (EPSRingTM) and 10 Gigabit Ethernet allow several XS900MX Series switches to form a protected ring capable of recovery within as little as 50ms. This feature is perfect for high performance and high availability in enterprise networks.
Stackable
Create a VCStack of two XS900MX Series switches (using 10G SFP+ direct attach cables). VCStack provides a highly available system where network resources are spread out across stacked units, reducing the impact if one of the units fails. With VCStack and the XS900MX Series, up to 28 x 10G ports can be provisioned as a single virtual switch in one rack unit.
- Expand your network capacity with the help of 12 networking ports and transfer your data quickly and easily
- Cascade to other network devices through the uplink port to expand your local area network
- Stack port provides an easy and hassle-free way to extend your office network
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Can work as layer 3 routing for scalable network design
- Rack mounting enables you to organize wires & secure cables for professional installation
Product Type: Layer 3 Switch
Environmentally Friendly: Yes
Environmental Certification: TV
Compatible Rack Unit: 1U
Product Series: XS900MX
Brand Name: Allied Telesis
Form Factor: Rack-mountable
Manufacturer: Allied Telesis, Inc
Product Model: AT-XS916MXT
Product Name: 12-Port 100/1000/10G Base-T (RJ-45) Stackable Switch with 4 SFP/SFP+Slot
Product Line: CentreCOM
Manufacturer Part Number: AT-XS916MXT-10
Manufacturer Website Address: http://www.alliedtelesis.com
Package Contents:
- 12-Port 100/1000/10G Base-T (RJ-45) Stackable Switch with 4 SFP/SFP+Slot
- US Power Cord
Weight (Approximate): 6.17 lb
