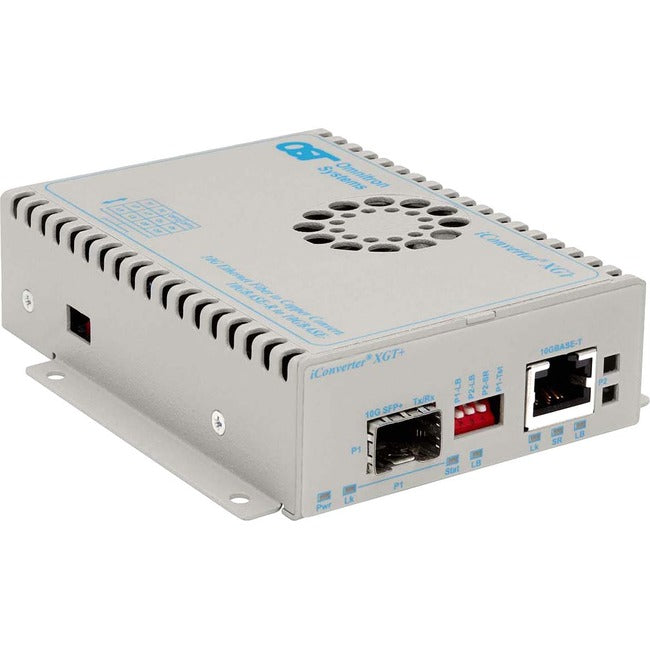

Omnitron Systems iConverter XGT+ 10GBASE-T Ethernet Media Converter
The iConverter XGT+ is a 10 Gigabit Ethernet media converter with one 10GBASE-T RJ-45 port and one XFP or SFP+ pluggable transceiver port that provides copper-to-fiber media conversion.
The iConverter XGT+ provides a variety of 10G data center connectivity solutions, including resolving interface disparities between equipment with 10GBASE-T RJ-45 ports and existing rack servers or switches with fiber optic ports. Architecture changes such as migrating from Top of Rack to End of Row can present cabling challenges when extending network distances from racks of servers. The XGT+ converts short-reach cabling to multimode fiber, single-mode fiber or CAT-6A cabling (up to 100 meters) to extend distances to servers, switches and patch panels. For CAT-6A cabling links less than 30 meters, the XGT+ supports 10GBASE-T Short Reach mode. In this mode, the device conserves energy by reducing power and cooling requirements.
The iConverter XGT+ also supports CWDM and DWDM transceivers to convert 10GBASE-T interfaces to WDM wavelengths. This enables connecting equipment with 10GBASE-T interfaces to iConverter CWDM multiplexers that expand fiber capacity and transport multiple 10G data channels across existing fiber links.
The XGT+ supports high-power (power level 4) XFP transceivers and the latest generation of wavelength tunable DWDM XFP transceivers. The wavelength of atunable transceiver can be programmed and saved, eliminating the need for external programming equipment. Built-in loopback functions, on-board status LEDs and link fault propagation modes facilitate easy setup and quick troubleshooting.
The iConverter XGT+ is available as a compact, unmanaged standalone unit, or chassis plug-in module that can be managed with a management module installed in the chassis. The hot-swappable, plug-in modules can be mounted in a variety of chassis with AC and DC power supplies. The standalone iConverter XGT+ has built-in mounting brackets. It is DC powered and available with an external AC to DC power adapter, or a terminal connector for wiring directly to a DC power source.
- Connect different types of media within a network with this single port
- With Twisted Pair cable, get the desired data transfer rate up to a required distance
- With 10GBase-X technology get up to 10Gbps data transfer rate over supported network cable
- No hassle of internal installation, install externally
Product Type: Transceiver/Media Converter
Environmentally Friendly: Yes
Environmental Certification: REACH
Country Of Origin: United States
Product Series: XGT+
Brand Name: Omnitron Systems
Form Factor: External
Manufacturer: Omnitron Systems
Product Name: iConverter XGT+ 10GBASE-T Ethernet Media Converter
Product Line: iConverter
Manufacturer Part Number: 8589N-0-E
Manufacturer Website Address: http://www.omnitron-systems.com
Package Contents:
- iConverter XGT+ 10GBASE-T Ethernet Media Converter
- Mounting brackets
- External Universal AC/DC Adapter
Limited Warranty: Lifetime
Weight (Approximate): 1 lb
