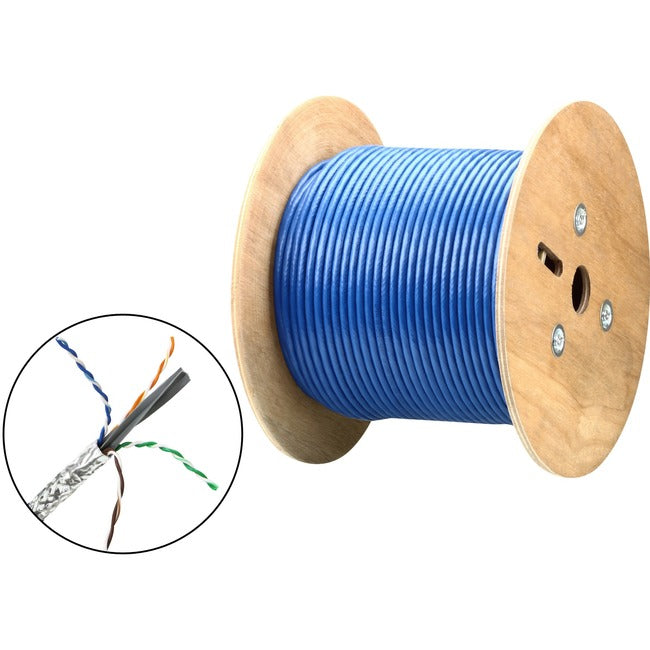

ATEN 305M HDBaseT SF/UTP CAT 6 Cable
The 2L-2910 is a twisted pair cable engineered for optimum signal transmission at resolutions up to 4K including digital and analogue data, audio, and video applications. The cable supports sweep frequency up to 400 MHz and has been verified to meet performance requirements set by the HDBaseT Alliance.
The 2L-2910 supports long distance connections while safeguarding transmission quality. The outer metal layer and the braid protect signal transmissions from electromagnetic interference and reduce the impact caused by electrical noise.
The 2L-2910 utilizes SF/UTP design with four unshielded 23 AWG twisted pair conductors. Among the four unshielded twisted pair conductors, there is one cross filler to reduce cross talk. Most importantly, the cable meets the requirements set by ANSI/ TIA-568-C.2 (2009) ensuring high performance in electrical transmission.
- Compatible with ATEN HDBaseT extenders and splitters.
- Flame test UL 1685 (CM rated), RoHS compliant
- Braid wire: tinned copper
- Outer shielded material: AI Mylar tape
- Supports up to 4K data transmission
- Conductor material: 23 AWG bare copper
- Supports sweep frequency up to 400 MHz
- Verified to meet performance requirements set by HDBaseT Alliance
- Optimized for multiple distributions including HD video, audio, Ethernet, power and control
Product Type: Network Cable
Environmentally Friendly: Yes
Environmental Certification: RoHS
Product Color: Blue
Brand Name: ATEN
Manufacturer: ATEN Technology Inc
Product Name: 305M HDBaseT SF/UTP CAT 6 Cable
Manufacturer Part Number: 2L-2910
Manufacturer Website Address: http://www.aten.com/us/en/
Packaged Quantity: 1
Weight (Approximate): 38.74 lb
