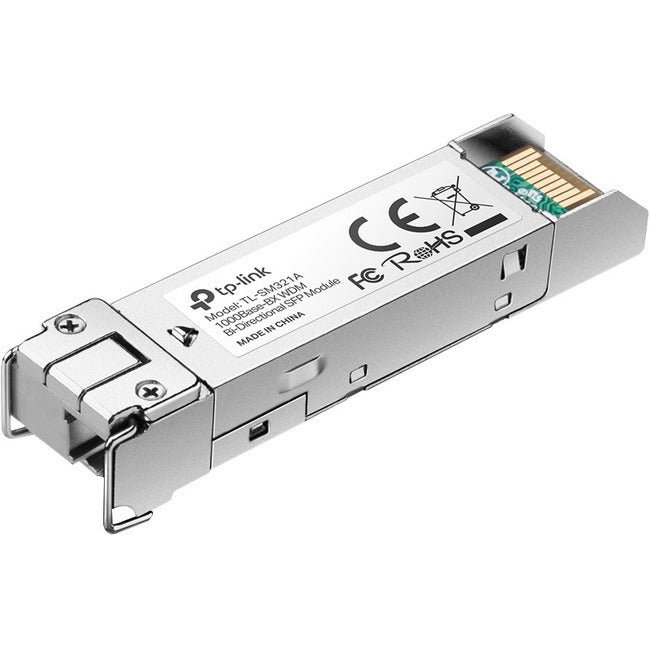

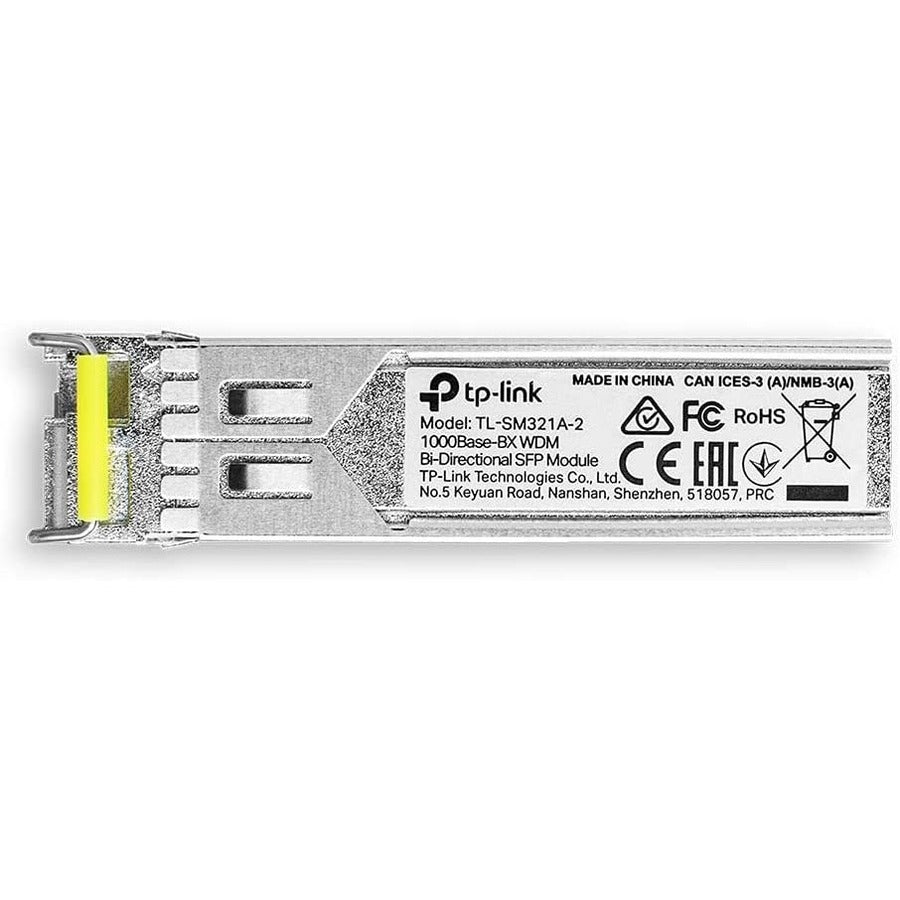

TP-Link 1000Base-BX WDM Bi-Directional SFP Module
TP-LINKs TL-SM321A-2 is developed in accordance with the Small Form Pluggable Multi-Source Agreement (SFP-MSA). As a WDM Bi-Directional optical transceiver, TL-SM321A-2 uses an integrated LC Bi-Directional optical interface connector and the data link is up to 2 km in 9/125 µm SMF (Single-Mode Fiber).
Also, TL-SM321A-2 incorporates the Digital Diagnostic Monitoring (DDM) feature which is compatible with SFF-8472. DDM supports real-time monitoring of the transceiver, and shows parameters including the transceiver current which transmits/receives optical power and operating temperature.
TP-Link's TL-SM321A-2 is used for short-and medium distance fiber network in practice, and it provides fast and stable gigabit fiber connection for switches, routers, servers, etc.
- Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
- For transmitting data at gigabit speed over hundreds of miles with little integrity loss, single-mode fiber optic is an ideal solution
- With 1000Base-BX technology, enjoy up to 1000Mbps data transfer rate over optical fiber cable
Product Type: SFP (mini-GBIC)
Brand Name: TP-Link
Compatibility: MSA Compliant
Form Factor: Hot-swappable
Manufacturer: TP-LINK Technologies Co., Ltd
Product Model: TL-SM321A
Product Name: 1000Base-BX WDM Bi-Directional SFP Module
Manufacturer Part Number: TL-SM321A-2
Manufacturer Website Address: http://www.tp-link.com/us
Limited Warranty: 2 Year
