- DEVICE INTERFACE: 8 x Gigabit PoE+ Ports; 2 x Gigabit SFP Slots; 6-Pin Removable Terminal Block; DIN-Rail Mount; LED Indicators; Wall Mount; Grounding Point
- POE+ POWER & SWITCHING CAPACITY: The industrial PoE+ switch is equipped with 20Gbps switching capacity, and a 240W @56V DC PoE power budget supplies up to eight Power over Ethernet devices with PoE+ power.
- DIN-RAIL & WALL MOUNT KIT: This 10-Port Gigabit PoE+ switch comes with an integrated DIN-Rail mount and mounting hardware brackets.
- EXTREME TEMPERATURE SWITCH: The metal hardened IP30 rated DIN-Rail Gigabit PoE+ switch is equipped with a rugged IP30 rated enclosure and designed to withstand a wide temperature range 20° - 65°C (-4° - 149°F) for harsh environments.
- REDUNDANT POWER: The 10-port network switch has dual redundant power inputs with overload current protection (power supply sold separately: models:TI-S12048 / 48VDC3000).
- ALARM RELAY: The DIN-Rail switch alarm output is triggered by power failure of primary and/or redundant power
- TRENDnet LIFETIME WARRANTY: The TI-PGM102 Industrial Gigabit PoE+ Switch comes with Lifetime TRENDnet Manufacturer WARRANTY.

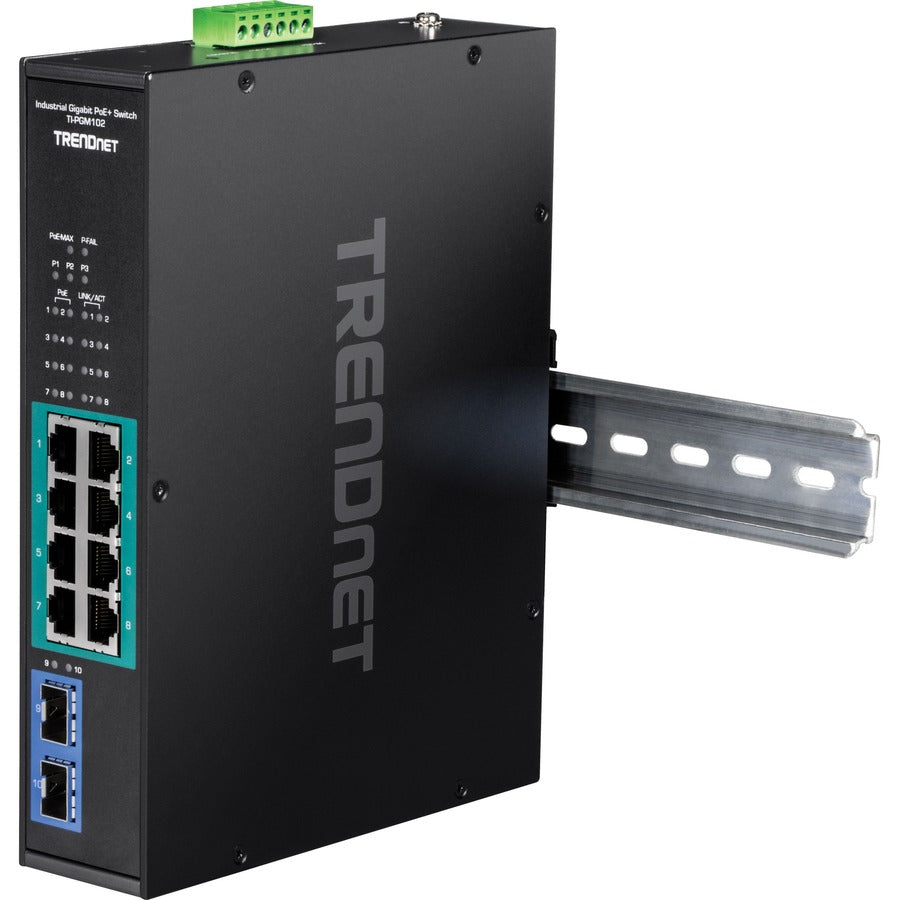

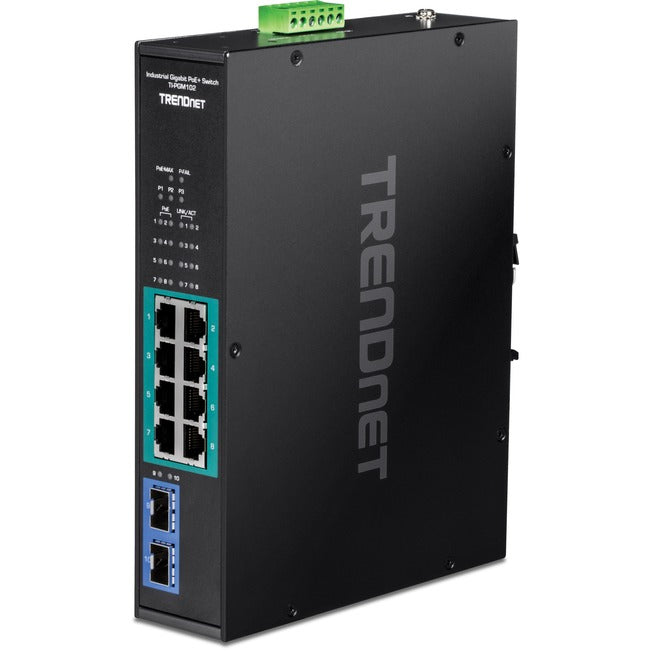

TRENDnet's 10-Port Industrial Gigabit PoE+ DIN-Rail Switch -20° - 65°C (-4° - 149°F), model TI-PGM102, has eight gigabit PoE+ ports with a 240W PoE power budget, plus two gigabit SFP slots for long distance fiber applications. Users are able to connect eight PoE+ devices to the switch, while still providing two gigabit SFP slots for additional network connections. This switch is equipped with an IP30 rated metal enclosure, designed to operate within a wide temperature range of -20° - 65°C (-4° - 149°F) for harsh, industrial environments.
PoE Power
A 240W PoE+ power budget supplies up to eight Power over Ethernet devices with PoE+ power.
Fault Tolerance
Features redundant power inputs with overload current protection and output alarm relay.
Industrial Hardened Design
Rugged IP30 rated housing is designed to operate within a wide temperature range of -20° - 65°C (-4° - 149°F).
NETWORKING SOLUTION | FEATURES | Full PoE+ Power Budget
Supplies up to 30W of PoE/PoE+ power per port with a 240W PoE power budget
Switching Capacity
20Gbps switching capacity
Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance
Network Ports
8 x Gigabit PoE+ ports and 2 x Gigabit slots
Redundant Power
Redundant power inputs with overload current protection (power supply sold separately, models: TI-S24048, 48VDC3000)
Wide Operating Temperature
Rated for an operating temperature range of -20° - 65°C (-4° - 149°F)

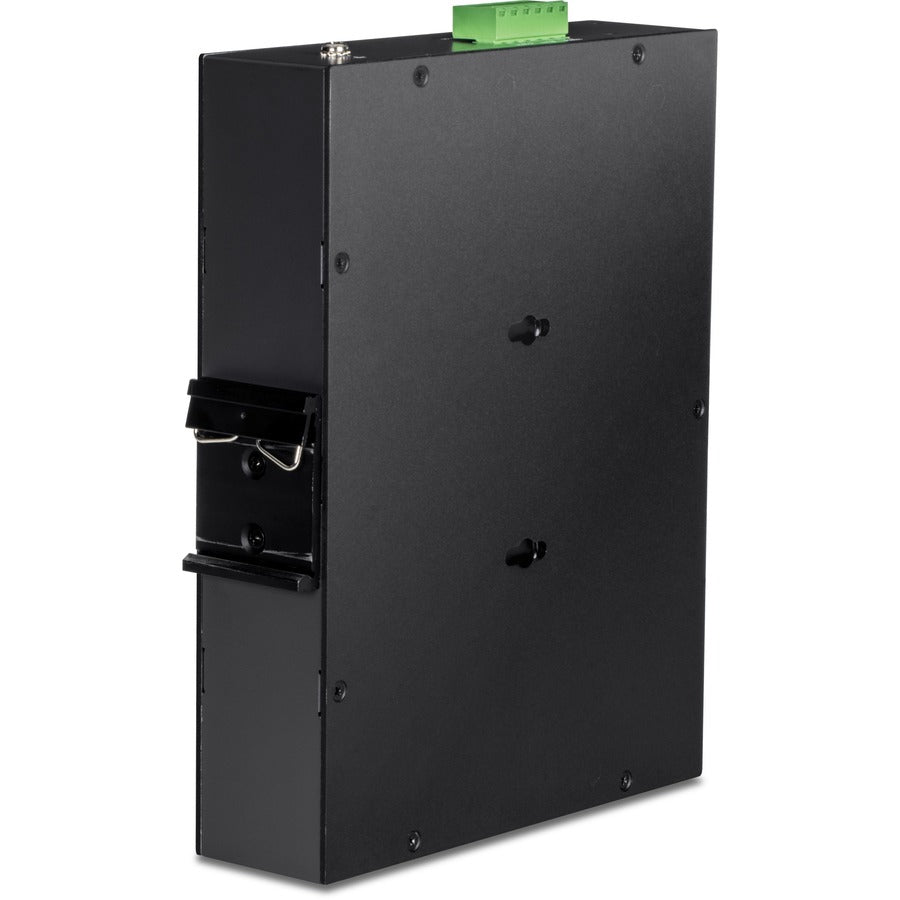

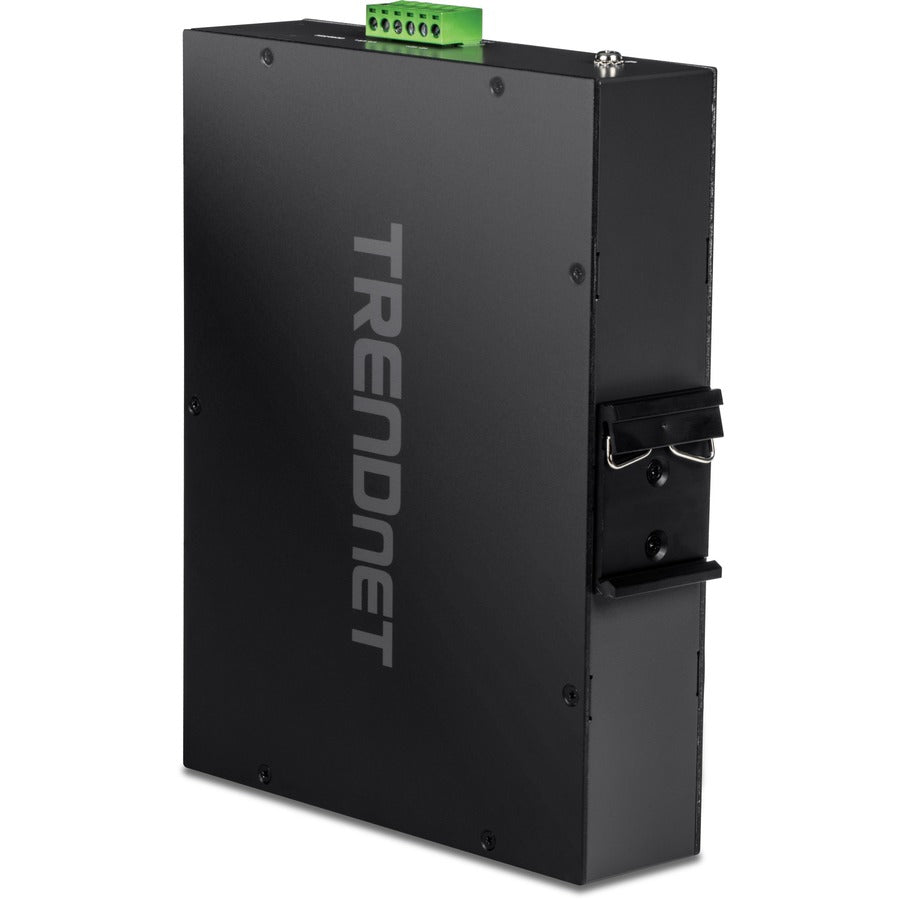

DIN-Rail/Wall Mounts
IP30 rated metal enclosure with included DIN-Rail and wall-mount hardware
Alarm Relay
Alarm relay triggered by power failure of primary and/or redundant power
Grounding Point
Grounding point protects equipment from external electrical surges
- Expand your network capacity with the help of 8 networking ports and transfer your data quickly and easily
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Gigabit Ethernet port for ultra-fast network speeds
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- With Wall mounting feature, you can conveniently install the switch while keeping the wires and cables organized
