The TP-Link TL-SG1210MPE 10-Port Gigabit Easy Smart Switch is perfect for small businesses, home offices, and network environments who need reliable PoE+ power delivery combined with intelligent network management. Our 8-Port PoE+ switch delivers professional networking capabilities in an affordable, easy-to-manage package:
-
8-Port PoE+ Gigabit Ethernet providing up to 30W per port for IP cameras, wireless access points, and VoIP phones
-
2 additional Gigabit ports for high-speed uplink connections and network expansion
-
Easy Smart management with web-based configuration for VLAN, QoS, and monitoring features
-

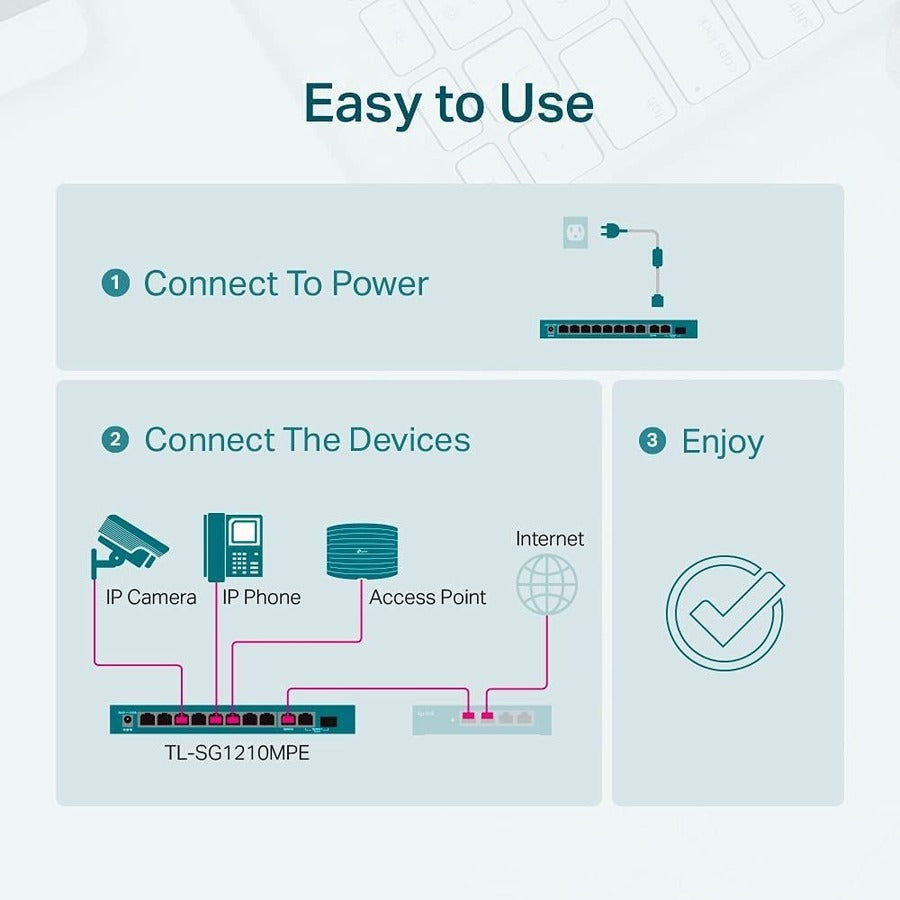

Plug-and-play deployment with automatic device detection and power allocation
Key Features
-
8 x Gigabit PoE+ ports delivering up to 30W per port with 123W total power budget
-
2 x Gigabit uplink ports for connecting to routers, servers, or network backbone
- Intelligent Easy Smart management with web GUI for advanced configuration
-
VLAN support enabling network segmentation and improved security
-
QoS prioritization ensuring optimal performance for critical applications
-
Energy-efficient design with automatic power adjustment based on connected devices
Technical Specifications
| Manufacturer |
TP-Link |
| Model Number |
TL-SG1210MPE |
| Type |
10-Port Gigabit Easy Smart Switch |
| Port Configuration |
8 x 10/100/1000 PoE+ + 2 x 10/100/1000 |
| PoE Standard |
IEEE 802.3at/af PoE+ up to 30W per port |
| Total PoE Budget |
123W maximum power consumption |
| Switching Capacity |
20 Gbps |
| Forwarding Rate |
14.88 Mpps |
| Management |
Web-based Easy Smart Configuration Utility |
| VLAN Support |
Port-based, 802.1Q Tag VLAN |
| Form Factor |
Desktop/rack-mountable design |
| Compatible Systems |
Small business networks, home offices, security systems |
Target Use Cases
-

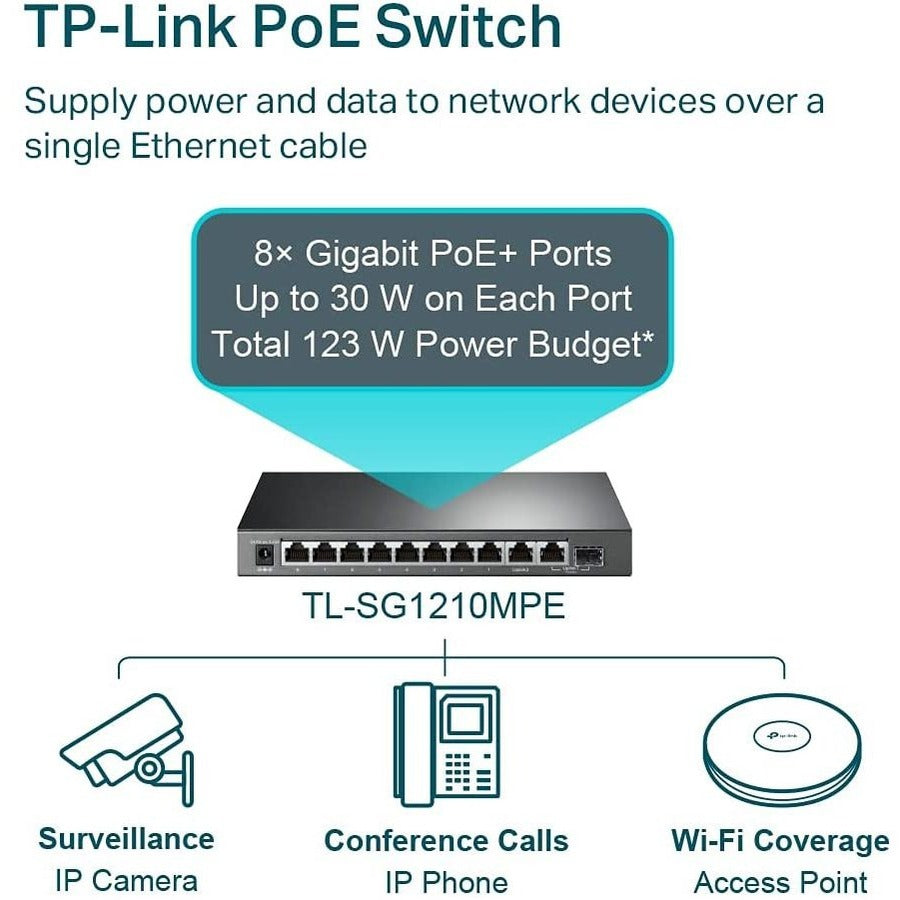

IP surveillance systems powering multiple PoE cameras with centralized management
-
Small business networks requiring managed switching with PoE device support
-
Wireless network infrastructure providing power and connectivity to access points
-
VoIP phone systems eliminating the need for separate power adapters
-
IoT device networks supporting powered sensors and smart building equipment
Frequently Asked Questions
Q: How many devices can this PoE+ switch power simultaneously?
A: This 8-Port PoE+ switch can power up to 8 devices simultaneously, with each port delivering up to 30W. The total power budget of 123W ensures reliable power distribution based on connected device requirements.
Q: Does this switch require advanced networking knowledge to configure?
A: No. The Easy Smart management interface provides a user-friendly web GUI that simplifies configuration of VLANs, QoS, and monitoring features, making it perfect for small businesses without dedicated IT staff.
Q: What types of devices are compatible with the PoE+ ports?
A: The PoE+ Gigabit ports are compatible with IP cameras, wireless access points, VoIP phones, IoT sensors, and any IEEE 802.3at/af compliant devices requiring up to 30W of power delivery.
Q: Can this switch be used in both desktop and rack environments?
A: Yes. This 10-Port Gigabit switch features a versatile form factor that supports both desktop placement and rack mounting, providing flexibility for various installation environments and network configurations.
Q: Does this switch support network segmentation for security?
A: Absolutely. The switch supports both port-based and 802.1Q tag VLANs, enabling network segmentation for improved security and traffic management — essential for isolating different device types and user groups.
TP-Link TL-SG1210MPE 10-port Gigabit Easy Smart switch with 8-port PoE+ delivering 30W per port. Perfect for small business networks and IP surveillance.
