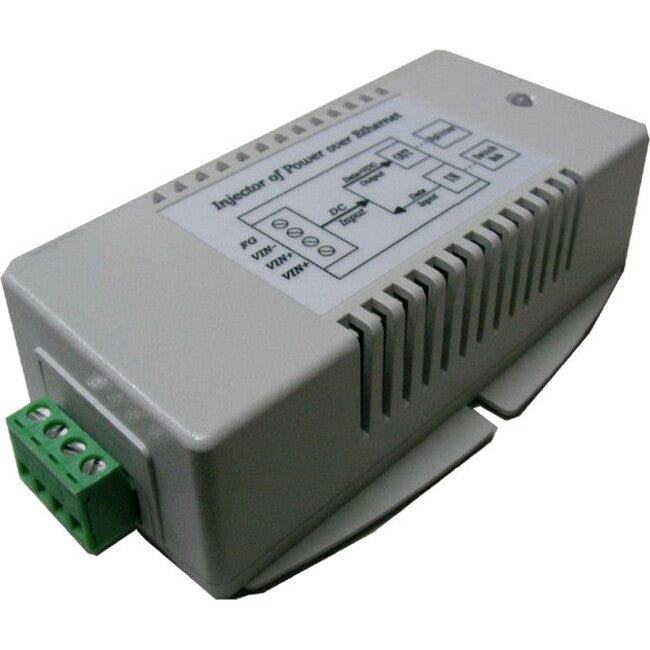

Tycon Power TP-DCDC-1248GD-HP PoE Injector
The TP-DCDC Gigabit Series of DC to DC converters offered by Tycon Power Systems are a low cost and high efficiency solution for those requiring IEEE802.3af and IEEE802.3at Power Over Ethernet from a 12VDC or 24VDC or 48VDC voltage source like a battery system or vehicle. They have an integrated POE injector to apply the 802.3af or 802.3at output to the CAT5 Ethernet cable. The output voltage is regulated 48VDC-56VDC. They have two isolated inputs for connecting 2 power sources, like a primary and backup power source. A metal enclosure model is available for industrial applications.
They accept gigabit data-in to a shielded RJ45 Jack and provide gigabit data-out and POE power on the shielded RJ45 output jack. They work by supplying power on the unused Ethernet pins 4,5(V+) and 7,8(V-). They have various protections for surge, short circuit and overload. The units have power outputs up to 35W.
If the remote device does not support 802.3af or 802.3at power over Ethernet, a TP-POE-1224 802.3xx converter is available to change the POE output to passive POE with 12V or 24VDC POE output.
Product Type: PoE Injector
Certifications & Standards:
- IEEE802.3af
- IEEE802.3at
- FCC Class B
- EN55022 Class B
- UL1950
- CSA 22.2
- TUV EN60950
Product Series: TP-DCDC
Brand Name: Tycon Power
Compatibility:
- 12V / 24V / 48V Battery Systems
- Wireless Access Points
- Client Devices
- IP Phone
- Security Camera Systems
Length: 4.9"
Manufacturer: Tycon Power Systems
Product Model: TP-DCDC-1248GD-HP
Product Name: TP-DCDC-1248GD-HP PoE Injector
Manufacturer Part Number: TP-DCDC-1248GD-HP
Manufacturer Website Address: http://www.tyconpower.com
Limited Warranty: 1 Year
Weight (Approximate): 10.58 oz
