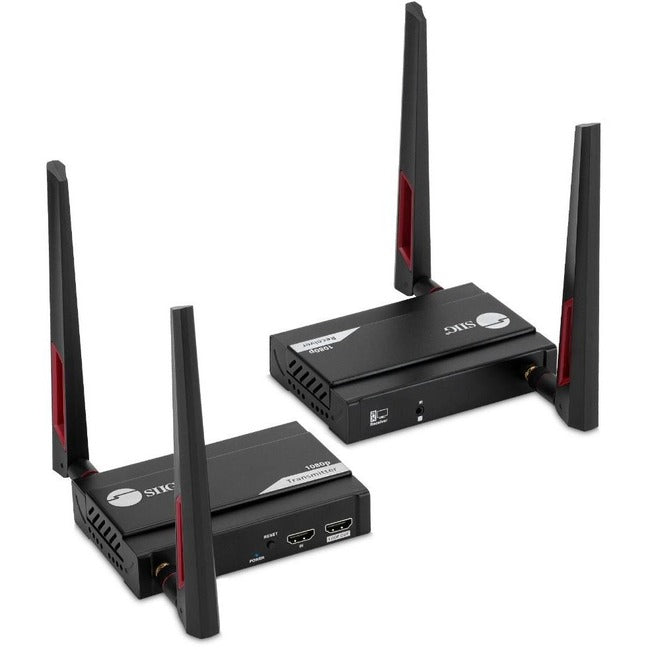

SIIG 1 to 4 Full HD Wireless HDMI Extender with Loopout & IR Kit
Multiple Connectivity Port
Transmitter unit (TX):
Comes with two 5dBi detachable antennas, one HDMI video input port, one HDMI video loop-out port, one 3.5mm IR output port, one reset button, and one DC 12V/1A power jack
Receiver unit (TX):
Comes with two 5dBi detachable antennas, one HDMI video output, one 3.5mm IR input port, one reset button, and one DC 12V/1A power jack
Applications
- Conference room
- Show room
- Church
- Lecture hall
- Exhibition
- Home entertainment
- Shopping center
- Restaurant
- Educational facilities

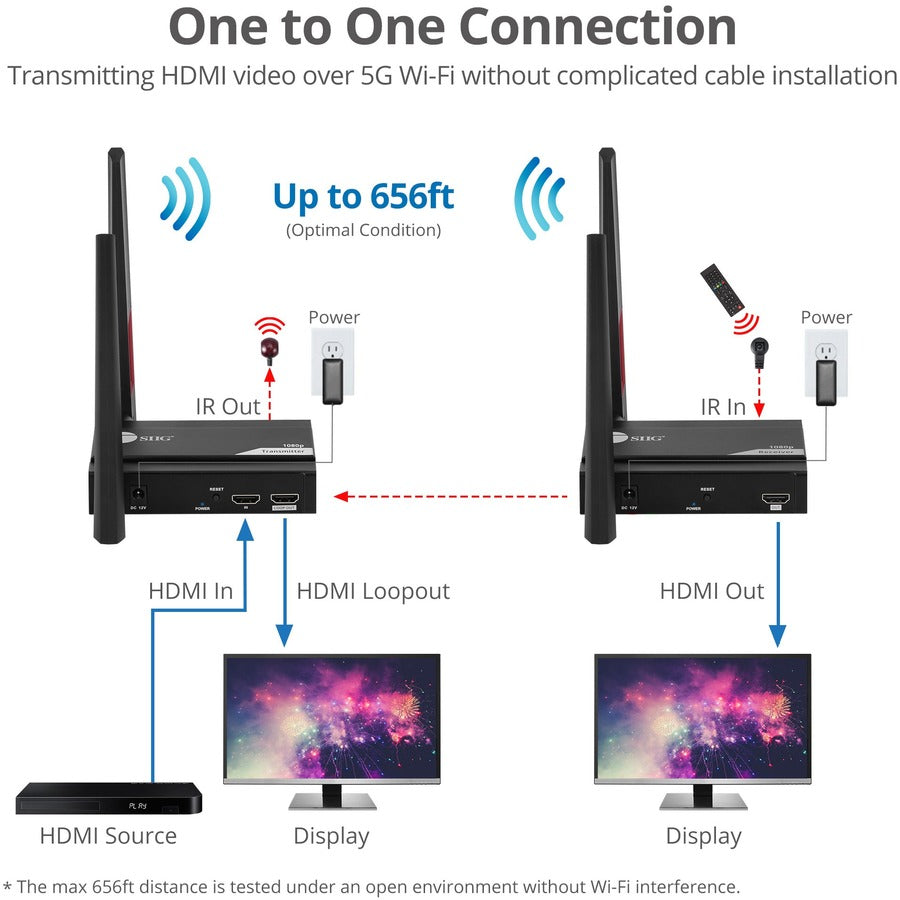

- Transmits and receives HDMI A/V signals wirelessly without complicated cable or wire installation, working range up to 656ft through line-of-sight environment
- It offers high quality configurable, low-bandwidth video and support up to 1080p@60Hz
- Four Receivers At Same Time: Connect one transmitter to four receivers and a local HD display simultaneously! Perfect for sharing content like movies or security systems throughout the house or business! Note: Requires Full HD Wireless HDMI Extender - Receiver (part # CE-H27711-S1) sold separately
- Build in 5G wireless high speed transmission signal, faster transmission speed and stronger anti-interference ability. Using an external dual-gain antenna can transmit over long distance, up to 656 ft in an open space.
- Supports Audio format LPCM 2.0 CH up to 48KHz
- Built-in one way IR signal extension modules allows remote controlling the HDMI source device at the receiver and playback at the distant display. Supports an IR signal in the 60KHz carrier frequency
- Works with most of the HDMI equipped devices, such as DVD, Blu-ray players, Set-top boxes, AV receivers, Cable/Satellite boxes and computer systems

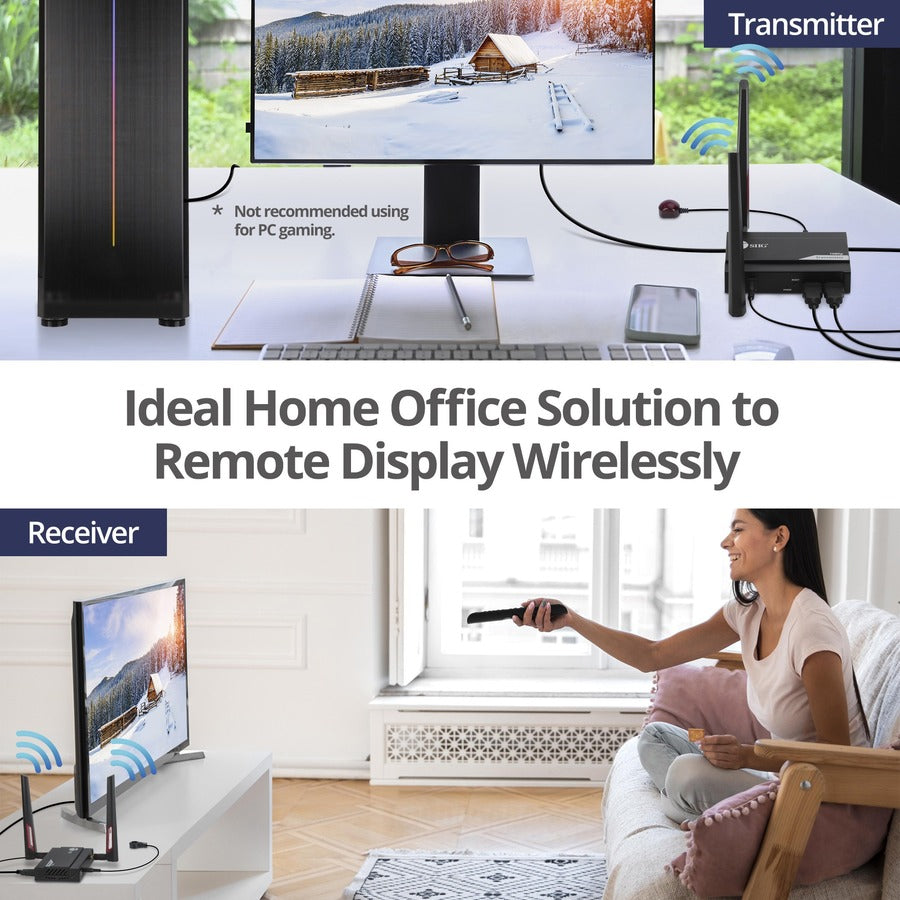

- Ideal wireless solution for apartments or condos where installing wiring is prohibited, a perfect solution for adding displays throughout your home or serving as digital signage, POP for small business office and showroom
- Compact design for easy and flexible installation
- Plug-n-play, no software or Wi-Fi connection required
Product Type: Video Extender Transmitter/Receiver
Environmentally Friendly: Yes
Environmental Certification: RoHS

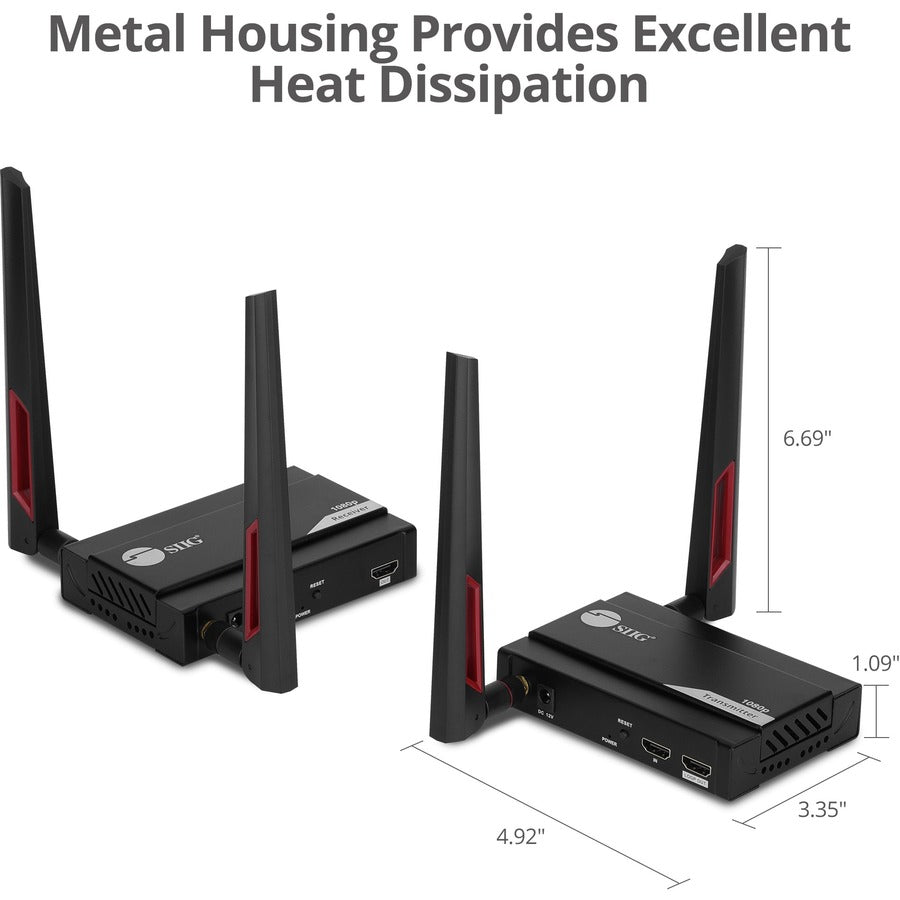

Transmitter Height: 1.10"
Transmitter Width: 4.92"
Transmitter Depth: 4.02"
Receiver Height: 1.10"
Receiver Width: 4.92"
Receiver Depth: 4.02"
Transmitter Weight (Approximate): 5.28 oz
Receiver Weight (Approximate): 5.28 oz
Product Color: Black
Brand Name: SIIG
Manufacturer: SIIG, Inc
Product Name: 1 to 4 Full HD Wireless HDMI Extender with Loopout & IR Kit
Manufacturer Part Number: CE-H27611-S1
Manufacturer Website Address: http://www.siig.com

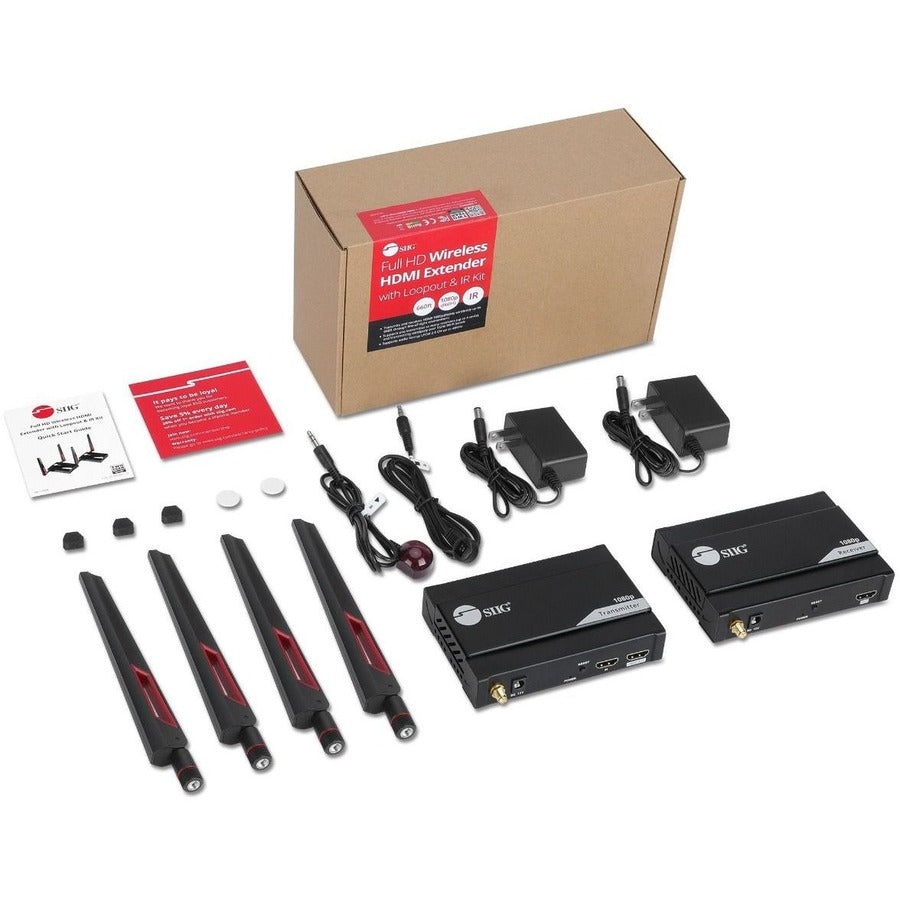

Package Contents:
- 1 x Transmitter
- 1 x Receiver
- IR Blaster Extension cable
- IR Receiver Extension cable
- 2 x Power Adapter 12V/1A
- Quick Start Guide
Limited Warranty: 2 Year
