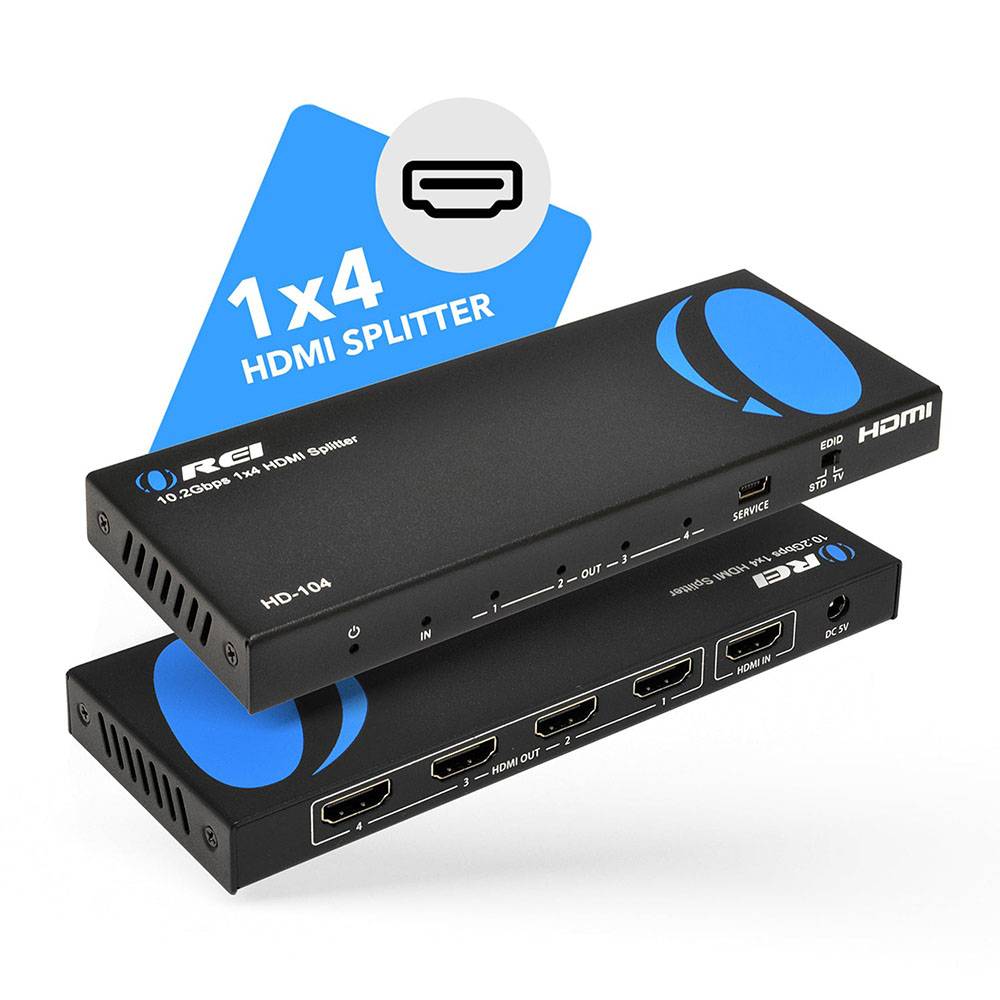

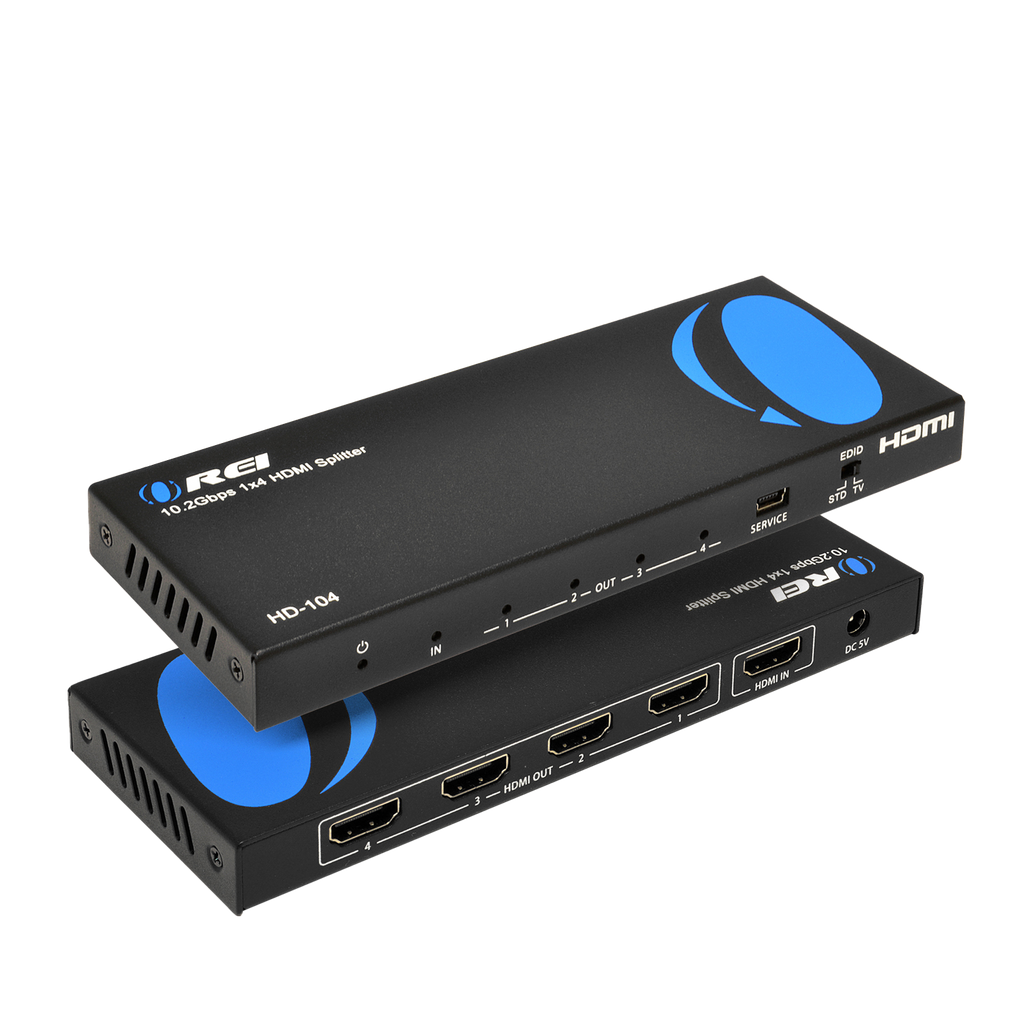

OREI HD -104: 1 Input 4 Output HDMI Splitter with EDID management
Key Features:
HDMI 1.4 and HDCP 1.4 compliant
Video resolution up to 4K@30Hz
2.97Gbps video bandwidth

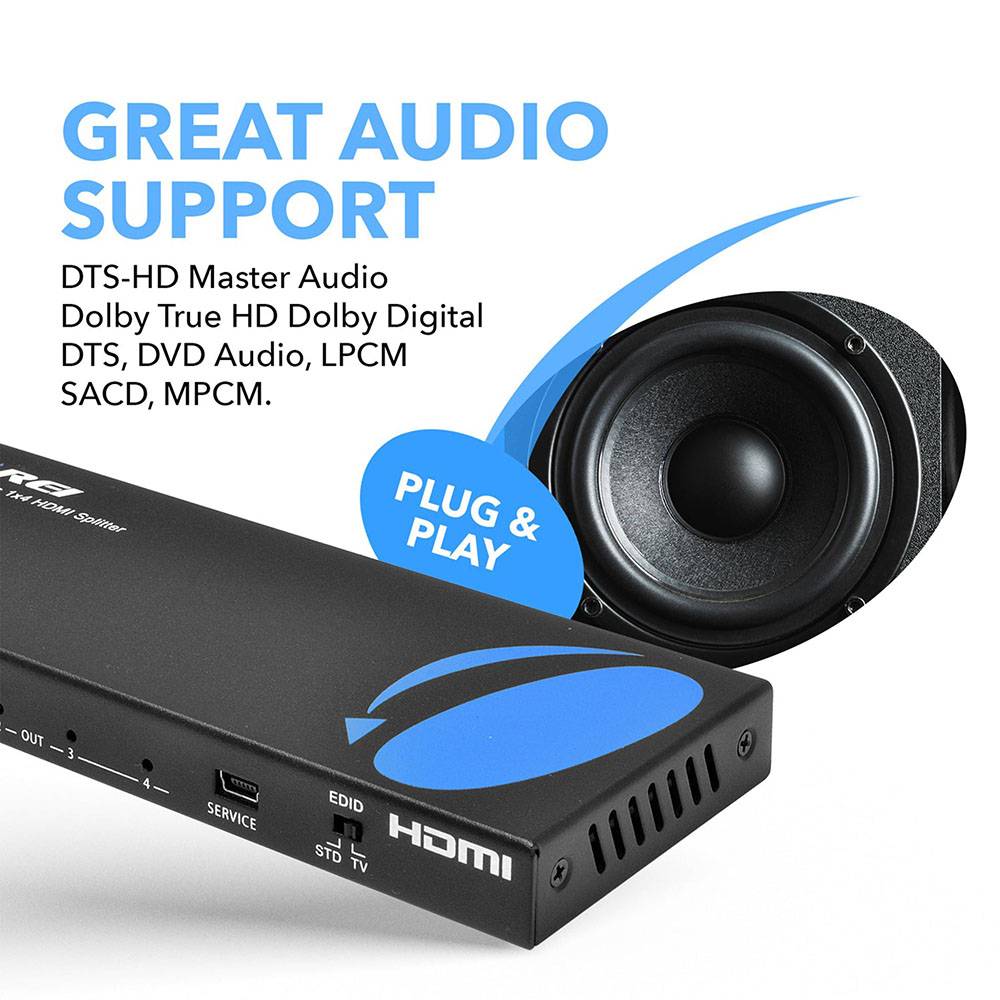

Audio formats - LPCM 7.1, Dolby TrueHD, DTS-HD, and DSD
3D video support at 1080p@60Hz
EDID management

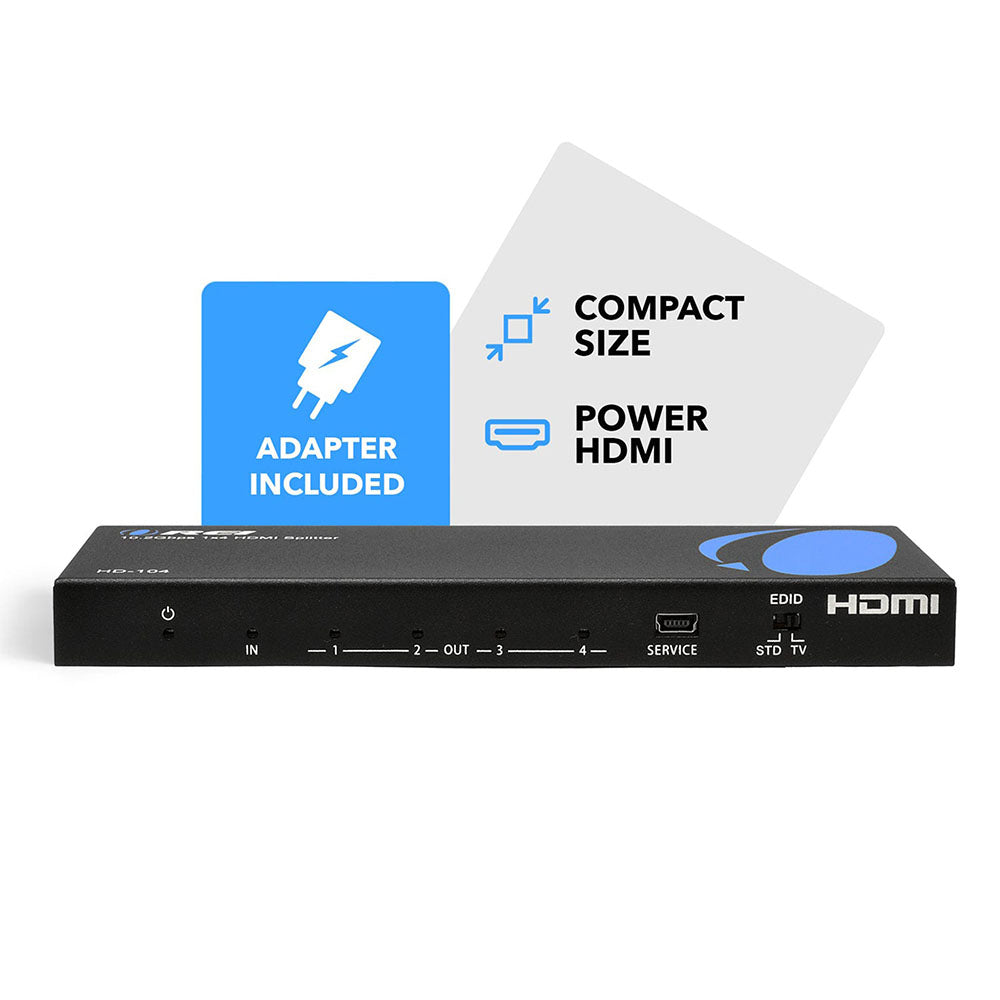

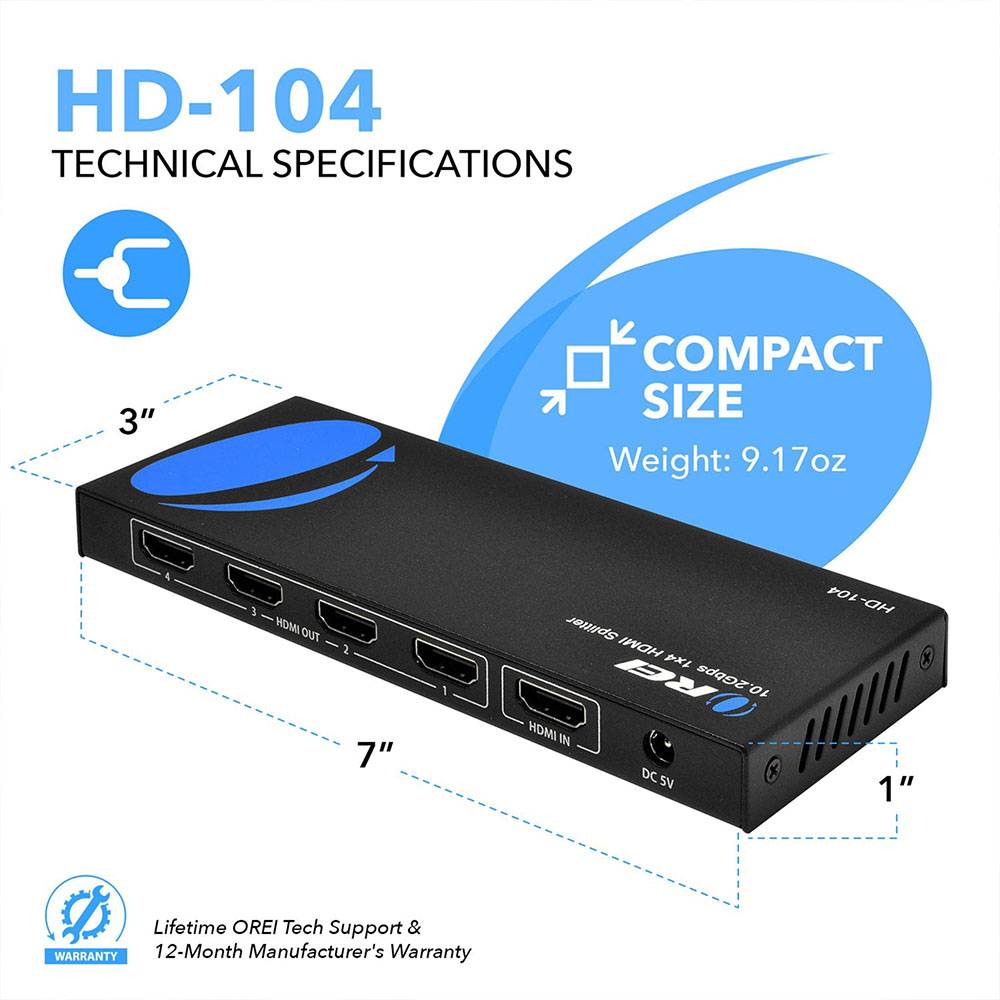

Small size and plug-and-play setup
The OREI HDS-104 HDMI splitter is a reliable device for splitting an audio/video signal to 4 outputs. It supports video resolutions up to 4K@30Hz while being HDMI 1.4 and HDCP 1.4 compliant. It also supports 2.97Gbps video bandwidth while also supporting audio formats such as DTS-HD/Dolby-true-HD/LPCM 7.1/DTS/Dolby-AC3/DSD. It features dip switches for EDID management. The device is perfect for a commercial or residential setup requiring the duplication of content onto 4 screens.
[shortdes]
Mirror content to 4 displays
Resolutions up to 4K@30Hz
EDID management
[/shortdes]
[tab]
CONNECTIVITY
INPUT:
1 × HDMI [Type A, 19-pin female]
OUTPUT:
4 × HDMI [Type A, 19-pin female]
CONTROL:
1 × SERVICE port [5-pin, Mini USB-B]
PACKAGE CONTENTS
1x HD-104 HDMI Splitter
1x Power Adapter
User Manual
SUPPORTED HDMI CABLES
HDMI 2.0/2.1
We recommend using high-quality HDMI 2.0/2.1 cables under 30 feet for optimum performance
Our splitters will not work with capture cards due to the HDCP encryption on the output
Our HDMI splitter will duplicate or "mirror" a single HDMI source on two HDMI displays. Both displays will show the same video and audio simultaneously

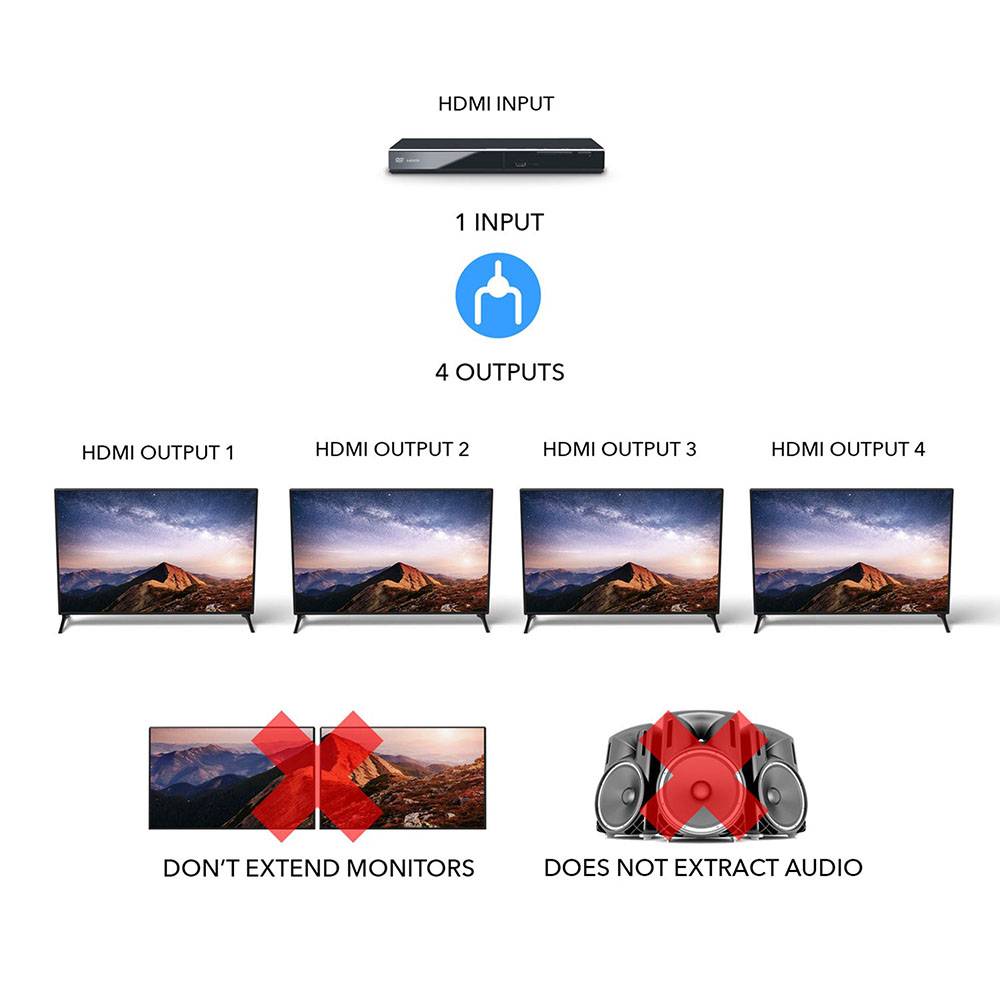

Our splitter does not support extend mode. It only supports mirror/duplicate screen function, each screen will show the same picture
Yes, the power adapter does support 220V
You can use standard HDMI cables up to 15 feet and high quality cables up to 30 feet.
However, you can use fiber optic active HDMI cables up to 200 feet. If it's not a high-quality cable then you may lose the signal in some instances.
No, the HDMI splitters do not support CEC because most customers do not want all the TV's to turn ON as soon as the source is turned on.
