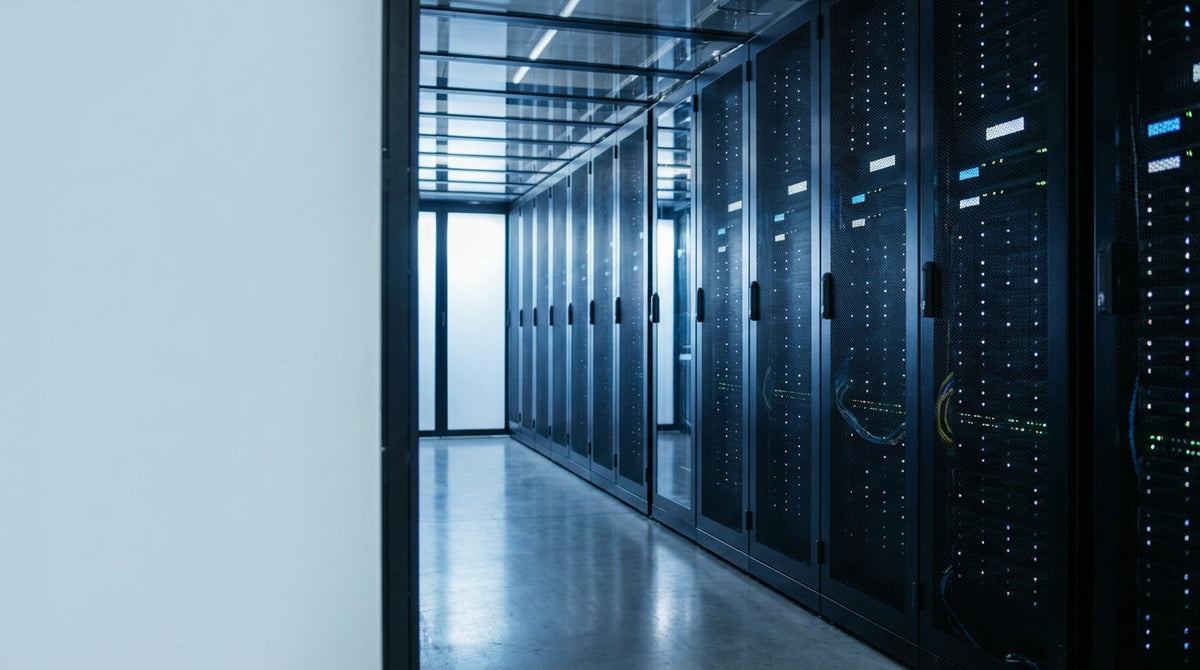

Server Rack Cabinet Buying Guide: How to Choose the Right Enclosure

Why Server Rack Cabinets Are Critical for Data Center Success

Server rack cabinets and enclosures form the structural backbone of any data center or server room. These standardized frames house your most critical IT equipment—servers, networking gear, storage systems, and power distribution units—while providing organization, security, and environmental protection. Whether you're building a small office server closet or expanding an enterprise data center, choosing the wrong rack cabinet can lead to cooling problems, security vulnerabilities, and costly equipment failures.

This guide will help you understand rack sizing standards, evaluate cooling and airflow requirements, and select the right security and cable management features for your specific deployment. At Tecisoft, we help IT professionals choose server rack solutions that protect equipment while supporting efficient operations and future growth.

Server Rack Cabinet Types and Configurations

Enclosed Server Cabinets: Maximum Protection and Cooling Control

Enclosed server cabinets feature solid side panels, perforated front and rear doors, and complete environmental isolation. These four-post designs provide the highest level of equipment protection and airflow management.

Key advantages:

• Superior cooling control with front-to-back airflow management
• Enhanced security with lockable doors and panels
• Better dust and contamination protection
• Integrated cable management and power distribution space
• Professional appearance for customer-facing environments

Best for:

• High-density server deployments
• Climate-controlled data centers
• Environments requiring strict security controls
• Mixed equipment installations with varying cooling needs

Typical specifications:

• 42U or 48U height (standard data center sizes)
• 600mm (24") or 800mm (31") width options
• 1000mm to 1200mm (39" to 47") depth for proper airflow
• Static load capacity: 1500-3000 lbs
• Locking front/rear doors with security panels

Open Frame Racks: Maximum Access and Airflow

Open frame racks use two-post or four-post designs without side panels or doors. This configuration maximizes equipment access and natural airflow but provides minimal security and environmental protection.

Key advantages:

• Easier equipment installation and maintenance access
• Better natural convection cooling
• Lower initial cost and simpler assembly
• Flexible mounting options for varied equipment types
• Reduced floor space requirements

Best for:

• Telecommunications and networking equipment
• Non-critical or temporary installations
• Environments with excellent climate control
• Applications requiring frequent equipment changes

Typical specifications:

• 2-post: 12U to 45U height options
• 4-post: 42U to 48U standard heights
• 19" or 23" rack widths available
• Adjustable depth rails: 24" to 36"
• Load capacity varies by post configuration

Wall-Mount Cabinets: Space-Efficient Solutions

Wall-mount cabinets attach directly to walls and work well for smaller installations where floor space is limited. These compact units typically handle lighter loads but provide good security and organization.

Best for:

• Small office installations
• Network closets and utility rooms
• Remote site equipment
• Home office and lab environments

Server Rack Standard Dimensions and Sizing

Understanding Rack Unit (U) Measurements

Rack height uses standardized "rack units" where 1U equals 1.75 inches (44.45mm). This universal standard ensures equipment compatibility across all manufacturers and installations.

Common rack heights:

• 42U = 73.5 inches internal height (standard data center)
• 48U = 84 inches internal height (high-density applications)
• 24U = 42 inches internal height (network closets)
• 12U = 21 inches internal height (small installations)

Planning your rack height:

1. Calculate total U requirements for current equipment
2. Add 20% growth margin for future expansion
3. Reserve 2-4U for power distribution and cable management
4. Ensure total height fits facility ceiling clearance

Width Standards and Compatibility

Standard 19-inch racks accommodate most servers, networking equipment, and storage systems. The internal mounting width measures exactly 19 inches between rack rails.

23-inch racks provide extra space for telecommunications equipment and improved cable management but limit equipment compatibility.

External cabinet width typically measures 24 inches (600mm) for standard installations or 31 inches (800mm) for enhanced cable management.

Depth Requirements for Proper Installation

Rack depth directly affects equipment compatibility, airflow, and cable management effectiveness.

Shallow depth (600-700mm/24-28"):

• Network switches and patch panels
• 1U servers and appliances
• Telecommunications equipment
• Limited expansion capability

Standard depth (900-1000mm/35-39"):

• Most rack-mount servers
• Storage arrays and disk shelves
• UPS systems and power equipment
• Good balance of compatibility and floor space

Deep racks (1000-1200mm/39-47"):

• High-performance servers with extended chassis
• Blade server enclosures
• Equipment requiring significant cable management space
• Maximum cooling airflow optimization

Depth planning checklist:

• Measure your deepest equipment and add 4 inches minimum
• Account for power cord bend radius behind equipment
• Reserve front space for cable management arms
• Consider door swing clearance for maintenance access

Cooling and Airflow Management

Front-to-Back Airflow Design

Modern server equipment follows standardized airflow patterns where cool air enters the front and hot air exhausts from the rear. Your rack cabinet must support this airflow design to prevent overheating.

Perforated front doors allow cool air intake while providing security. Look for doors with 60-70% open area for optimal airflow without compromising protection.

Vented rear doors or panels enable hot air exhaust. Some installations benefit from open rear access for maximum heat removal.

Side panel ventilation becomes important in mixed equipment environments where some devices have side-to-side airflow requirements.

Hot Aisle/Cold Aisle Compatibility

Data centers organize racks into alternating hot and cold aisles to optimize cooling efficiency. Your rack selection must support this configuration.

Cold aisle considerations:

• Racks face the cold aisle with front air intake
• Perforated doors align with raised floor air delivery
• Cable management avoids blocking front airflow

Hot aisle considerations:

• Equipment exhausts face the hot aisle
• Rear doors may be solid, perforated, or removed entirely
• Hot aisle containment systems require specific rack compatibility

Cooling Capacity and Heat Load Planning

Calculate heat generation by totaling the maximum power consumption of all installed equipment. Each watt of power consumption generates equivalent heat.

Rack cooling capacity varies by design and installation:

• Standard perforated doors: 3-5kW per rack
• Enhanced ventilation designs: 8-15kW per rack
• Liquid cooling integration: 20kW+ possible

Airflow requirements typically need 150-200 CFM per kW of heat generation for effective cooling.

Security Features and Access Control

Physical Security Options

Locking mechanisms protect against unauthorized equipment access:

• Keyed locks for basic security needs
• Electronic locks for access logging and control
• Multi-point locking systems for enhanced protection
• Master keying for facility management efficiency

Door and panel security:

• Tempered glass front doors provide visibility with protection
• Solid steel doors offer maximum security
• Removable side panels enable maintenance access
• Hinged or sliding door options based on space constraints

Structural Security and Tamper Resistance

Frame construction affects both security and equipment protection:

• Welded steel frames provide superior strength and tamper resistance
• Bolted assemblies offer easier transportation but may have security gaps
• Heavy-duty casters with locking mechanisms prevent unauthorized movement

Weight capacity ensures equipment safety:

• Static load rating covers installed equipment weight
• Dynamic load rating handles moving loaded racks
• Seismic ratings important for earthquake-prone regions

Cable Management and Infrastructure

Horizontal Cable Management

Cable management arms support server power and data cables during equipment maintenance. These swing-out assemblies prevent cable stress and damage.

Horizontal cable management panels organize patch cables and cross-connections between rack equipment. Plan 1-2U of horizontal management per 10U of equipment.

Cable entry points at top, bottom, and sides accommodate different installation requirements:

• Top entry works well with overhead cable trays
• Bottom entry suits raised floor installations
• Side entry enables wall-mounted cable runs

Vertical Cable Management

Vertical cable management channels run along rack sides to organize power and data cables without blocking equipment access.

Finger ducts and D-rings guide cables and prevent damage from sharp edges.

Cable management capacity planning:

• Reserve 10-15% of rack depth for cable management
• Plan separate channels for power and data cables
• Account for future cable additions in capacity calculations

Power Distribution Integration

PDU mounting space requires planning during rack selection:

• Vertical PDUs mount at rack rear or sides
• Horizontal PDUs consume 1-2U of equipment space
• Allow adequate clearance for power cord routing

Branch circuit capacity affects the number of PDUs and outlet types needed per rack.

Installation and Infrastructure Considerations

Floor Loading and Foundation Requirements

Static floor loading calculations must account for fully loaded rack weight distributed across the cabinet footprint.

Raised floor compatibility requires racks designed for perforated floor tile airflow and cable routing underneath.

Earthquake and vibration resistance becomes critical in seismic zones or environments with heavy machinery.

Facility Integration

Door clearances must accommodate rack width plus door swing radius for maintenance access.

Ceiling height requirements include rack height plus overhead cable tray and lighting clearances.

HVAC integration considerations include air handler placement and return air paths.

Assembly and Deployment

Shipping and receiving factors include:

• Maximum doorway widths for assembled racks
• Elevator weight and size limitations
• Stair navigation requirements for upper floors

Assembly options:

• Pre-assembled racks reduce installation time but limit shipping options
• Knocked-down kits enable easier transport through tight spaces
• Tool requirements and assembly complexity vary by manufacturer

Cost Analysis and Return on Investment

Initial Purchase Considerations

Basic open frame racks start at $200-500 for simple two-post configurations suitable for light networking equipment.

Standard enclosed cabinets range from $800-2000 depending on size, features, and construction quality. These provide good value for most server room applications.

Premium data center cabinets cost $2000-5000+ but include advanced features like intelligent airflow management, integrated cable management, and enhanced security.

Long-term Value Factors

Equipment protection through proper rack selection prevents costly damage from:

• Overheating due to poor airflow design
• Physical damage from inadequate structural support
• Security breaches in unsecured installations

Operational efficiency improves with well-designed racks through:

• Faster equipment installation and maintenance
• Better cable organization reducing troubleshooting time
• Improved cooling efficiency lowering energy costs

Scalability benefits justify higher initial costs when racks accommodate:

• Future equipment upgrades without replacement
• Changing cooling requirements as technology evolves
• Expanding cable management needs over time

Frequently Asked Questions

What's the difference between 2-post and 4-post server racks?

2-post racks use front-mounted rails only and work well for lighter networking equipment and patch panels. 4-post racks provide front and rear mounting points plus better structural support for heavy servers and storage systems. Choose 4-post designs for equipment weighing more than 50 pounds or requiring rear support.

How do I calculate the right rack height for my equipment?

Add up the rack unit (U) requirements for all equipment, multiply by 1.75 inches per U, then add 20% for growth and cable management space. For example, 30U of equipment needs at least 36U of rack height (30 × 1.75 × 1.2 = 63 inches), making a 42U rack appropriate.

When do I need a deeper rack cabinet?

Choose deeper racks (1000mm+) when you have blade servers, high-performance storage arrays, or equipment requiring extensive cable management. Standard depth (900mm) works for most rack servers. Shallow racks (600-700mm) suit network switches and telecommunications equipment only.

What airflow features are most important for cooling?

Perforated front doors with 60-70% open area enable adequate cool air intake. Rear ventilation through perforated doors or open access supports hot air exhaust. Avoid designs that block equipment airflow paths or create recirculation between hot and cold air streams.

How much weight can a server rack cabinet safely hold?

Static weight capacity varies from 1500-3000 pounds for standard data center cabinets. Always check both static (installed equipment) and dynamic (moving/shipping) load ratings. Distribute weight evenly and avoid top-heavy configurations that affect stability.

Do I need tool-less mounting rails for my server rack?

Tool-less rails significantly speed equipment installation and removal, especially in environments with frequent changes. However, they typically cost more and may have lower weight capacity than traditional bolt-on rails. Choose based on your maintenance frequency and equipment weight requirements.

Making Your Final Server Rack Cabinet Selection

Successful server rack selection starts with accurate equipment inventory and future planning. Calculate your space, power, cooling, and security requirements before comparing specific models.

For small office and network closet applications, quality wall-mount or open frame racks provide cost-effective solutions with adequate protection. Data centers and mission-critical environments benefit from enclosed cabinets with advanced airflow management and security features.

Create your selection checklist:

• Measure current and planned equipment dimensions and weight
• Calculate total rack units needed with 20% growth margin
• Determine required depth based on your deepest equipment plus cable management
• Evaluate cooling requirements based on total heat generation
• Specify security features appropriate for your environment
• Plan cable management space for current and future needs
• Consider installation logistics including shipping and assembly
